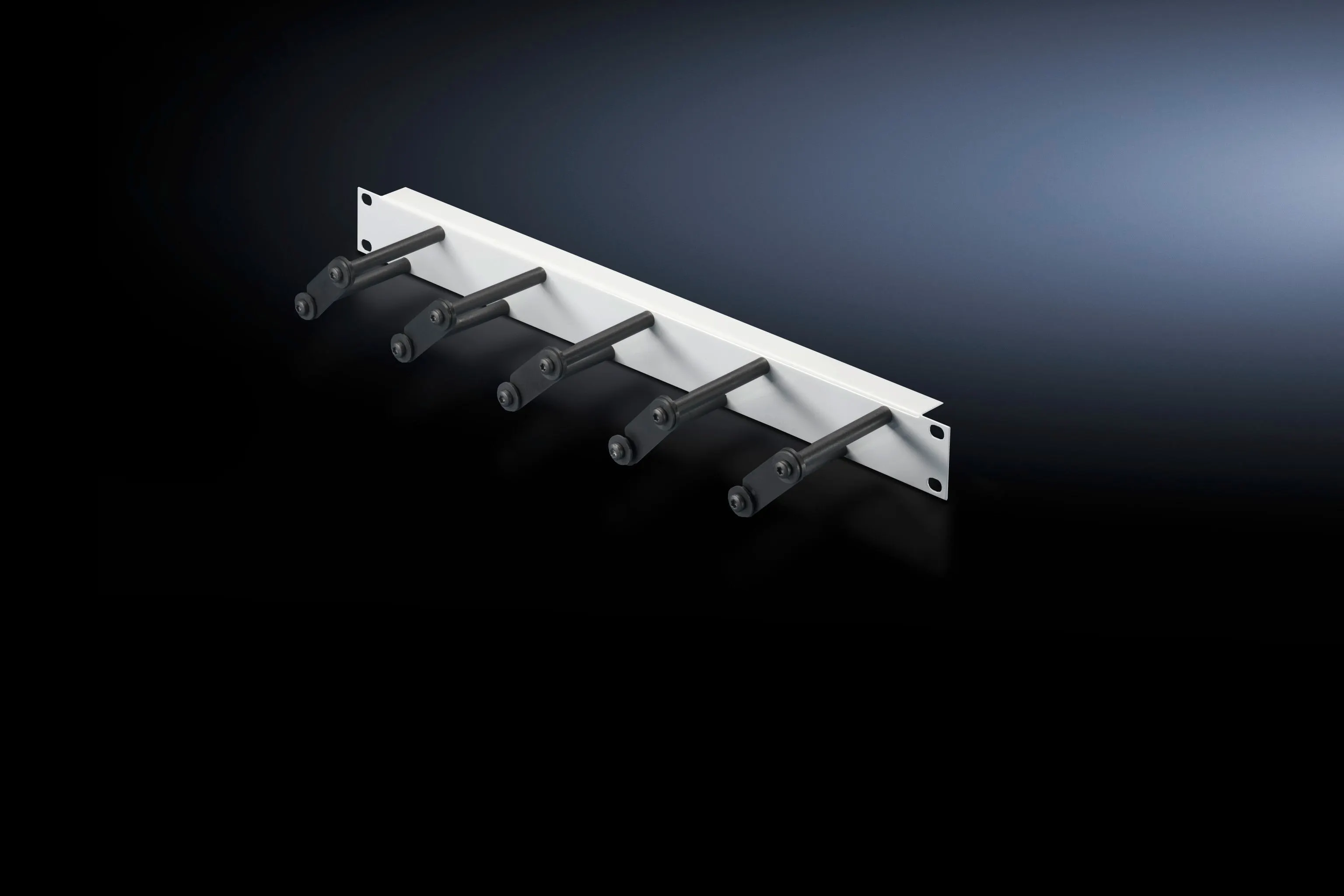

Rittal DK 7257.050 Cable Management Panel 1U - 5 Bars
Part Number: 7257050
Quick Summary
Rittal DK 7257.050 cable management panel keeps patch cables organized in 1U rack spaces. Tangled cabling slows maintenance and hampers airflow, making updates costly and error-prone. While the data sheet doesn’t list explicit CE or IP markings, the design targets CE‑compliant industrial use and employs a sheet‑steel panel with plastic routing bars for durable service in controlled environments. Designed to fit standard 19‑inch cabinets and accessible via five routing bars per U, it delivers measurable business value by improving serviceability, reducing downtime, and enabling scalable cabling. In data centers and control cabinets, this panel supports efficient change management and predictable maintenance, helping engineers keep networks tidy and compliant.
Product Information
Extended Description
7257050 Rittal: DK Cable management panel, 1 U, with cable routing bars, RAL 7035
Article number
DK 7257.050
Product description
For horizontal management of the patch cables with 5 cable routing bars. Opening the individual cable routing bars allows user-friendly modification and extension of the cabling.
Material
Panel: Sheet steel, spray finished | Cable routing bars: Plastic
Colour
Panel: RAL 7035 | Cable routing bars: RAL 9005
Depth of bars
100 mm
Number bars per U
5
Dimensions
Width: 482.6 mm
Units
1 U
Packs of
1 pc(s).
Weight/pack
0.629 kg
Customs tariff number
73182900
EAN
4028177624702
ETIM 9
EC002624
ECLASS 8.0
27189265
Product description
DK Cable management panel, 1 U, with cable routing bars, RAL 7035
Feature: 1U height and 482.6 mm width align with standard 19-inch enclosure dimensions, enabling seamless integration into existing rack layouts. Business impact: optimized space utilization and predictable mounting, which shortens deployment time and reduces fitment risk. Application: ideal for patch cable management in control cabinets and data centers, where consistent dimensions support scalable cabling strategies. Feature: 5 cable routing bars per U with 100 mm bar depth allows organized, horizontal cable routing. Business impact: easier cable changes and modular upgrades, resulting in lower maintenance costs and faster reconfiguration. Application: enables quick changes to cabling topology without disassembling panels. Feature: Panel composed of sheet steel with a spray finish and routing bars in plastic, plus color separation (panel in RAL 7035, bars in RAL 9005). Business impact: durable, corrosion‑resistant enclosure components that maintain neat appearance and reduce wear. Application: suitable for long‑term installation in industrial enclosures. Feature: Weight per pack 0.629 kg and packaging as 1 piece per pack improves on‑site handling and reduces installation fatigue. Business impact: lighter, easier field handling minimizes labor time and risk of damage during mounting. Application: convenient for refurbishments and scalable panel additions. Feature: Dimensions and unit specification (1 U, width 482.6 mm) support straightforward compatibility checks with existing rail systems. Business impact: mitigates integration risk and accelerates procurement decisions. Application: clarifies fit for standard rack infrastructure. Feature: Material and finish choices (sheet steel, plastic bars) provide a robust solution for controlled environments, while ETIM 9 and ECLASS 8.0 classifications aid part data management. Business impact: improves maintenance planning and e‑commerce data hygiene. Application: supports accurate BOM creation and procurement workflows.
Get a Quick Quote for a Rittal 7257050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7257050?
Enquire Now
FAQs
The panel is a 1U high, 482.6 mm wide component designed for standard 19-inch racks. It houses five cable routing bars per U with a bar depth of 100 mm, enabling horizontal cable management. Installation is straightforward: mount on standard rails, align the panel, and begin routing cables through the accessible bars.
Key specs include 1 U height, width 482.6 mm, depth of bars 100 mm, and five bars per U. The panel is made from sheet steel with a spray finish, while the cable routing bars are plastic. Colors are panel in RAL 7035 and bars in RAL 9005. Weight per pack is 0.629 kg, with EAN 4028177624702 and article number DK 7257.050.
Yes. The DK 7257.050 is designed for standard 19-inch cabinet installations and 1U height, making it a compatible addition to common Rittal enclosure setups. Its 482.6 mm width aligns with typical rack rails, and the five bars per U configuration supports scalable cabling within existing enclosure architectures.
The provided data lists ETIM 9 EC002624 and ECLASS 8.0 27189265 classifications, with material and finish details. Explicit CE markings or IP ratings are not specified in the data set above; please verify with the supplier for exact certifications relevant to your regulatory requirements and installation environment.
Organized cabling reduces troubleshooting time, improves airflow, and lowers the risk of cable damage during modifications, delivering lower downtime and maintenance costs. The DK 7257.050’s 1U footprint, five bars per U, and lightweight 0.629 kg pack simplify installation and future expansions, contributing to faster change management and predictable maintenance cycles.
