Rittal Cable Management Panel 7257100 - RAL 7035
Part Number: 7257100
Quick Summary
Cable management panel solutions organize patch cables in control cabinets for reliable, accessible wiring. This model from Rittal addresses the common challenge of tangled cabling that slows diagnostics and increases wear. The DK 7257.100 provides 2 U of mounting space with integrated cable routing bars to support orderly, scalable layouts. The design supports standard compliance considerations, including CE-related expectations and industry classification schemes, helping teams streamline procurement and documentation. In addition, the color and finish choices, like RAL 7035, ensure consistent appearance in multi-bay installations. By aligning with ETIM 9 and ECLASS 8.0 classifications, you gain interoperability across suppliers and easier maintenance planning, translating into lower installation time and reduced total cost of ownership.
Product Information
Extended Description

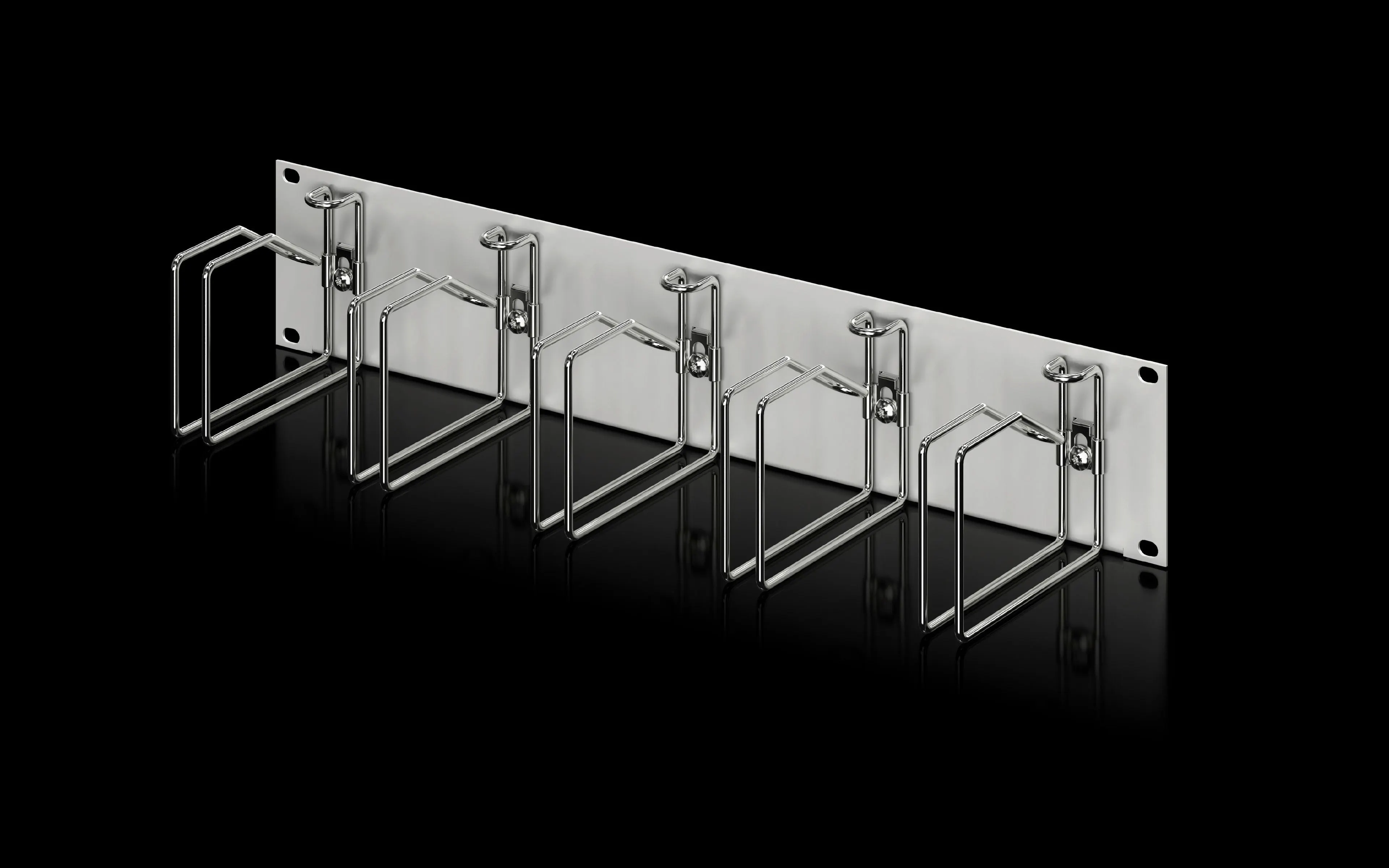

7257100 Rittal: DK Cable management panel, 2 U, with cable routing bars
Article number
DK 7257.100
Product description
For horizontal management of the patch cables, with 5 cable shunting rings.
Material
Panel: Sheet steel | Ring: Steel
Surface finish
Panel: Spray-finished | Ring: Zinc-plated
Colour
RAL 7035
Note
The sizes given are external dimensions.
Dimensions
Width: 482.6 mm
Units
2 U
Ring dimensions
Ring depth: 125 mm | Ring height: 85 mm
Packs of
1 pc(s).
Weight/pack
1.454 kg
PCF per pack (cradle-to-gate)
5.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177453715
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable management panel, 2 U, with cable routing bars
Feature: 2 U mounting space with a 482.6 mm width and five cable shunting rings. Business impact: Enables precise, repeatable routing of patch cables, reducing crosstalk and wear. Application: Optimized horizontal cable management in control cabinets where dense patching is common. Feature: Panel uses sheet steel with a spray-finished surface and zinc-plated rings. Business impact: Delivers durable construction that withstands industrial environments, promoting longer service life and lower replacement costs. Application: Suitable for harsh production floors and long-term enclosure installations. Feature: Five cable shunting rings with defined ring dimensions (depth 125 mm, height 85 mm). Business impact: Facilitates clear separation of groups of cables, improving accessibility during maintenance and upgrades. Application: Patch panel deployments in complex automation cabinets. Feature: Color and finish (RAL 7035) provide consistent aesthetics and easy visual organization across multiple cabinets. Business impact: Improves visual conformity for audits and site branding, reducing setup time during commissioning. Application: Multi-bay installations and standardized rollouts. Feature: Packaging and weight (1 pack, 1.454 kg) alongside PCF (5.5 kg CO2 eq, Cat B). Business impact: Predictable logistics and a lower environmental footprint, supporting sustainability reporting and cost planning. Application: Procurement and lifecycle assessments for industrial projects.
Get a Quick Quote for a Rittal 7257100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7257100?
Enquire Now
FAQs
DK 7257.100 is designed for horizontal cable management within 2 U space and a width of 482.6 mm, featuring five cable shunting rings and ring dimensions of 125 mm depth and 85 mm height. It includes cable routing bars to guide patch cables, ensuring consistent bend radii and reduced wear. This supports faster, repeatable installation in standard 19-inch cabinets without custom brackets.
Key features include the 2 U panel height, fixed routing bars, and five rings that keep cables separated and tidy. These elements reduce diagnostic time, minimize crosstalk, and preserve cable life by preventing sharp bends. In practice, technicians experience quicker swaps and easier fault localization in complex industrial control cabinets.
Yes. The DK 7257.100 DK Cable management panel is designed for horizontal cable management in electrical enclosures, providing organized routing for dense patch cabling typical in industrial control environments. The 2 U height and 482.6 mm width enable efficient use of space while maintaining serviceability and clean wiring paths.
The product data references ETIM 9 EC000322 and ECLASS 8.0 27400604 for classification and interoperability. While CE or other regulatory marks are not explicitly listed in the provided data, verify regional CE requirements during purchasing and validation, and consult the datasheet for any additional regulatory details.
By improving cable organization and reducing installation time, this panel lowers lifecycle costs through easier maintenance, longer cable life, and fewer reworks. The 5 rings and routing bars enable scalable layouts for higher cable density, allowing growth without hardware changes and delivering measurable ROI in manufacturing cells, control cabinets, and automation panels.
