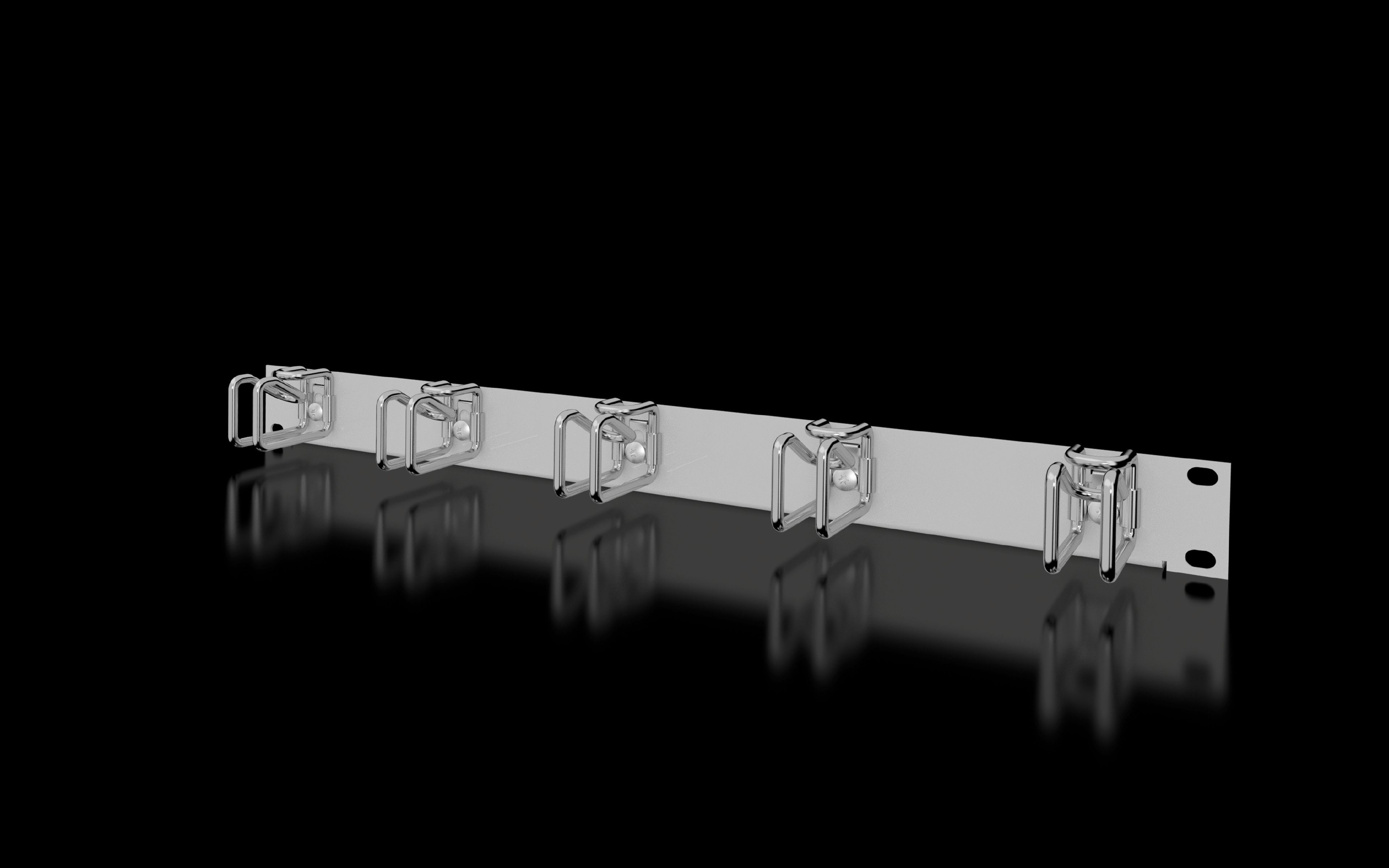

Rittal 7257200 CablePanel - 1U with 5 cable shunting rings
Part Number: 7257200
Quick Summary
Rittal 7257200 CablePanel is a 1U cable management solution designed for horizontal patch cable organization in control cabinets. Engineers often struggle with tangled cabling that impedes airflow, complicates maintenance, and obscures fault tracing. While the product aligns with ETIM EC000322 and ECLASS 27400604 classifications, its cradle-to-gate PCF is 2.8 kg CO2 eq (Category B), underscoring a responsible footprint; CE or IP ratings are not listed in the provided data. The combination of a robust steel panel and zinc-plated rings supports durable, scalable cable management in industrial environments, delivering reliability, repeatable layouts, and reduced maintenance downtime for automation projects.
Product Information
Extended Description
7257200 Rittal: DK Cable management panel, 1 U, with steel rings
Article number
DK 7257.200
Product description
For horizontal management of the patch cables, with 5 cable shunting rings.
Material
Panel: Sheet steel | Ring: Steel
Surface finish
Panel: Spray-finished | Ring: Zinc-plated
Colour
RAL 7035
Note
The sizes given are external dimensions.
Dimensions
Width:Â 482.6 mm
Units
1 U
Ring dimensions
Ring depth:Â 55 mm | Ring height:Â 43 mm
Packs of
1 pc(s).
Weight/pack
0.727 kg
PCF per pack (cradle-to-gate)
2.8Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177581012
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable management panel, 1 U, with steel rings
The 1U footprint and a width of 482.6 mm provide a standard DIN rail–compatible mounting space, enabling quick integration into existing control cabinets and predictable enclosure planning. This translates to faster installs and lower project risk as you scale or reconfigure a panel array in automation facilities. Five steel shunting rings offer flexible routing options while maintaining tight cable organization, which reduces cable strain, improves airflow, and speeds fault isolation during diagnostics. The panel is built from sheet steel with steel rings; the panel is spray-finished and the rings are zinc-plated, delivering rugged durability and corrosion resistance in harsh industrial environments with minimal maintenance. The RAL 7035 color supports visual consistency for cable labeling and quick identification across large installations, while the external dimensions ensure compatibility with standard 19-inch enclosures. At 0.727 kg per pack and with a cradle-to-gate PCF of 2.8 kg CO2 eq (Category B), the solution helps manage total cost of ownership and supports sustainability goals without compromising performance. The packaging and documentation align with ETIM and ECLASS classifications to ease procurement and integration into existing supply chains.
Get a Quick Quote for a Rittal 7257200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7257200?
Enquire Now
FAQs
Install the 1U DK 7257.200 panel into the 19-inch rack space, aligning with the 482.6 mm width. Secure with standard cabinet screws and organize patch cables using the five steel rings to achieve a tidy, accessible routing path. Ensure cables are not over-tightened to prevent strain and allow airflow around the panel.
The panel occupies 1 U of vertical space with a width of 482.6 mm. Each pack weighs 0.727 kg. Ring depth is 55 mm and ring height is 43 mm, supporting a compact yet functional cable routing scheme in horizontal layouts.
Yes. Its 1U form factor, 482.6 mm width, five steel rings, and steel panel construction are tailored for horizontal patch cable management in control cabinets and automation enclosures, delivering organized cabling, easier maintenance, and reliable performance in demanding environments.
The DK 7257.200 aligns with ETIM 9 EC000322 and ECLASS 8.0 27400604 classifications, aiding procurement systems. The data notes a cradle-to-gate PCF of 2.8 kg CO2 eq (Category B). Specific CE or IP certifications are not listed in the provided data.
With a PCF of 2.8 kg CO2 eq per pack (Category B) and a lightweight 0.727 kg per-pack weight, this panel supports sustainability goals while enabling quicker cable reconfigurations and reduced maintenance time, contributing to lower lifecycle costs in automation projects.
