Rittal 7283035 DK Drawer - DK 7283.035 - RAL 7035
Part Number: 7283035
Quick Summary
DK Drawer is a front-mounted 3U drawer for a 482.6 mm (19") attachment level, purpose-built to keep manuals, assignment lists and small parts neatly organized within industrial enclosures. When circuit panels run hot and cluttered documentation slows maintenance, this drawer provides quick, reliable access and reduces downtime. While the data sheet details sheet steel construction and a durable RAL 7035 finish, it also aligns with common industrial enclosure practices and ETIM/ECLASS classifications for seamless procurement. The combination of a secure cover, telescopic slides, and a front-attachment design supports efficient retrofits and consistent cabinet aesthetics across multiple projects.
Product Information
Extended Description

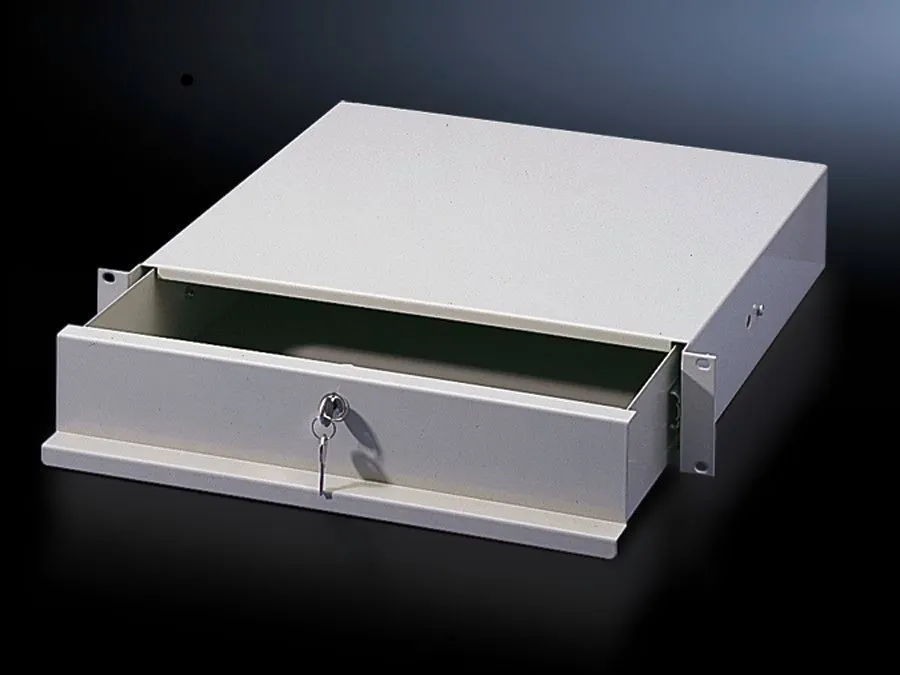

7283035 Rittal: DK Drawer, 3 U, For a 482.6 mm (19") attachment level, Installation depth: 427 mm
Article number
DK 7283.035
Product description
For front attachment to mounting angles, 482.6 mm (19"). With cover and telescopic slides to accommodate assignment lists, operating manuals and small parts. The small version of the 2 U variant is also suitable for mounting inside a swing frame.
Material
Sheet steel
Colour
RAL 7035
Supply includes
Fully assembled | Security lock 12321
Clearance depth
419 mm
Clearance width
411 mm
Packs of
1 pc(s).
Weight/pack
8.164 kg
PCF per pack (cradle-to-gate)
31.1Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177165960
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Drawer, 3 U, For a 482.6 mm (19") attachment level, Installation depth: 427 mm
Feature → Business Impact → Application: Front attachment to mounting angles enables rapid installation and standardized mounting across 482.6 mm (19") levels, reducing commissioning time and enabling faster service access in control cabinets. This directly improves maintenance efficiency and minimizes downtime for busy production lines. Application: Industrial control panels and IT/automation cabinets where quick access to manuals and small parts is essential. Feature → Business Impact → Application: Includes a cover and telescopic slides designed to accommodate assignment lists, operating manuals and small parts, improving part traceability and reducing lost documentation during audits. Application: Replacement drawer solution for swing-frame enclosures, supporting organized workspace inside compact enclosures. Feature → Business Impact → Application: Fully assembled with security lock 12321, ensuring content protection and lowering the risk of tampering in shared facilities. Application: Enclosures requiring secure, organized storage with minimal on-site assembly. Feature → Business Impact → Application: 482.6 mm (19") attachment level compatibility, with precise clearance dimensions (419 mm depth, 411 mm width) and a 8.164 kg weight, enabling predictable fitment and easier logistics. Application: New-build or refurb projects where exact mounting dimensions and weight constraints matter. Feature → Business Impact → Application: Material is sheet steel with a durable RAL 7035 finish, supporting corrosion resistance and aesthetic consistency across industrial environments. Application: Enclosures exposed to typical factory conditions where consistent color coding and robust construction matter. Feature → Business Impact → Application: PCF per pack of 31.1 kg CO2 eq (Cat B) provides environmental transparency for sustainability reporting and helps meet internal compliance targets. Application: Projects with cradle-to-gate environmental considerations or supplier sustainability checks.
Get a Quick Quote for a Rittal 7283035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7283035?
Enquire Now
FAQs
The DK Drawer is designed for front attachment to 482.6 mm (19") mounting angles and fits the 3U height. It supports mounting inside swing frames and non-swing configurations, streamlining retrofits and new installs with standardized front-accessibility.
Key dimensions include a clearance depth of 419 mm and a clearance width of 411 mm, with an installation depth of 427 mm. The drawer weighs 8.164 kg, which helps with handling and forklift planning during cabinet outfitting.
The unit is supplied fully assembled and includes a security lock (12321). This setup minimizes on-site assembly and provides immediate protection for documentation and small parts stored inside the drawer.
The drawer is made from sheet steel and finished in RAL 7035, ensuring a robust enclosure component with a color that matches a wide range of European industrial cabinets for a consistent, professional look.
The product carries cradle-to-gate PCF data of 31.1 kg CO2 eq (Cat B). While explicit CE/SIL/IP certifications aren’t listed in this data, the component follows typical enclosure standards and ETIM/ECLASS classifications; verify with supplier documentation for specific regulatory markings relevant to your facility.
