Rittal 7284135 DK Mounting angles attachment - TS 800
Part Number: 7284135
Quick Summary
DK Mounting angles additional fastening attachment counters mounting bending on TS enclosures under uneven loads. This helps avoid misalignment, reduces rework, and preserves the enclosure's structural integrity. Key standards in this space include CE conformity and robust IP-rated enclosure compatibility. This solution supports TS systems using zinc-plated sheet steel and the 482.6 mm depth with a 19" mounting width. Manufacturers benefit from reduced downtime when upgrading mounting components and resolving misalignment quickly. Process and electrical engineers rely on stable mounting to minimize vibration-induced wear and ensure equipment longevity. With two-pack packaging and straightforward installation, teams can quickly retrofit multiple cabinets in a single maintenance window.
Product Information
Extended Description
7284135 Rittal: DK Mounting angles additional fastening attachment, 482.6 mm (19"), For L-shaped mounting angles, For W: 800 mm, For TS
Article number
DK 7284.135
Product description

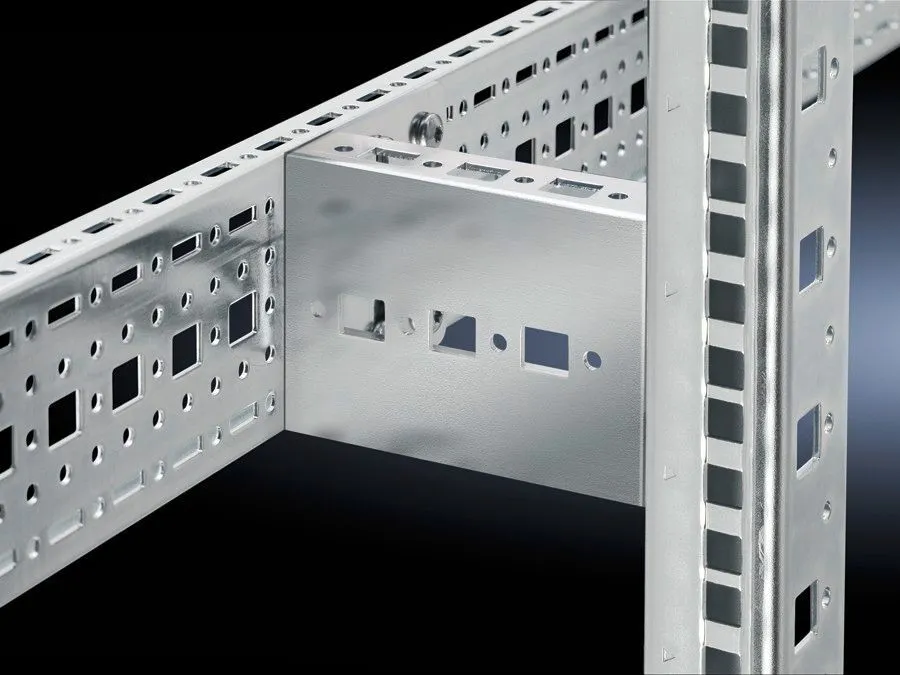

The additional fastening attachment counteracts bending of the mounting angles mounted on installation brackets in case of unevenly distributed loads. It is attached directly to 482.6 mm (19") mounting angles and to the punched section with mounting flange fitted in the depth (inner mounting level).
Applications
For upgrading existing TS applications
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: TS | Width: 800 mm
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Assembly instruction
Additionally, the TS punched section with mounting flange 17 x 73 mm is required for the inner mounting level
Packs of
2 pc(s).
Weight/pack
0.654 kg
Customs tariff number
73182900
EAN
4028177167230
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
DK Mounting angles additional fastening attachment, 482.6 mm (19"), For L-shaped mounting angles, For W: 800 mm, For TS
Feature: Direct mounting to 482.6 mm depth and 19" width ensures consistent alignment, reducing bracket deflection and installation rework. Business impact: Faster, more reliable upgrades for TS enclosures, lower labor costs, and predictable performance. Application: Upgrading existing TS installations in electrical and process automation environments. Feature: Zinc-plated sheet steel construction provides corrosion resistance in harsh environments. Business impact: Longer service life and reduced maintenance cycles, improving total cost of ownership. Application: Industrial cabinet upgrades in manufacturing floors, data centers, and outdoor enclosures. Feature: Supplied as a two-pack with assembly parts. Business impact: Streamlined procurement and synchronized retrofits across multiple cabinets, minimizing downtime. Application: Large-scale TS enclosure refresh projects. Feature: Inner mounting level compatibility requiring TS punched section 17 x 73 mm. Business impact: Simplified installation with clear prerequisites, reducing fit issues and rework. Application: Precise retrofit into existing TS systems. Feature: Fits enclosure type TS and width 800 mm. Business impact: Broad compatibility for standard Rittal TS cabinets, enabling repeatable upgrades. Application: System integrators performing standard TS upgrades in batch projects.
Get a Quick Quote for a Rittal 7284135
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7284135?
Enquire Now
FAQs
The installation involves attaching the DK Mounting angles attachment directly to the 482.6 mm (19") mounting angles and to the punched section with the inner mounting level. Ensure you have the TS punched section with mounting flange 17 x 73 mm and use the supplied assembly parts. The two-pack simplifies retrofit across multiple cabinets and minimizes downtime.
Designed for TS enclosures with a width of 800 mm and a mounting depth of 482.6 mm, the DK 7284.135 accessory is suitable for upgrading existing TS applications. It is intended to improve rigidity and prevent bending under uneven loads while maintaining compatibility with standard TS mounting geometry.
Yes. The accessory is specifically described for upgrading existing TS applications, offering an additional fastening point to counteract deflection. With two packs per order and included assembly parts, project teams can retrofit multiple units efficiently while preserving alignment and enclosure integrity.
The data set lists ETIM 9 EC002620 and ECLASS 8.0 27189234 as classification references. While explicit CE or IP certification is not stated, typical TS enclosure assemblies in industrial settings adhere to CE conformity and applicable IP ratings depending on the final system configuration. Verify local regulatory requirements for your specific installation.
By counteracting mounting angle bending and reducing misalignment, installation time is shortened, downtime is minimized, and the need for rework decreases. The zinc-plated sheet steel offers corrosion resistance, extending service life and lowering maintenance costs in challenging environments. Two-pack packaging further enhances deployment efficiency across multiple enclosures.
