Rittal 7296000 Data Rack Mounting Angles - 31U, 482.6 mm
Part Number: 7296000
Quick Summary
Rittal 7296000 Data Rack Mounting Angles deliver a robust mounting solution for 19" data racks in 31U configurations. Tight spaces and evolving cabling can complicate patch-panel alignment and rail installation, but this kit provides a torsionally stiff frame and precise 482.6 mm punchings for repeatable, clean installs. It aligns with industry classifications such as ETIM EC002620 and ECLASS 27189261, helping procurement verify compatibility while the 2 mm sheet steel construction and spray finish ensure long-term durability. The result is faster deployment, reduced field rework, and improved cable management across data centers and industrial IT environments. For projects demanding reliable 19" mounting, patch-panel compatibility, and serviceable infrastructure, this kit delivers tangible value.
Product Information
Extended Description

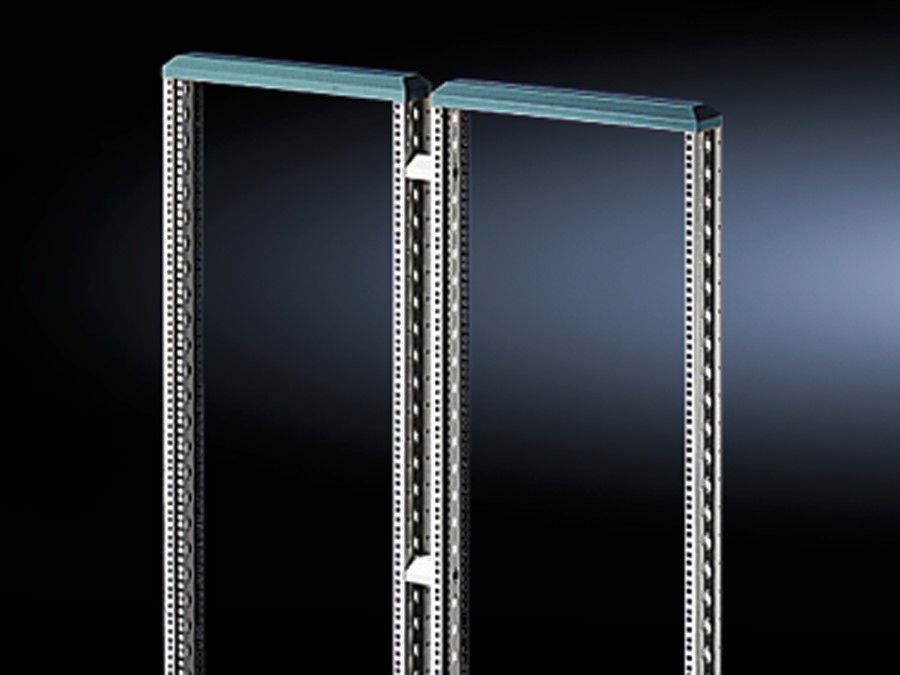

7296000 Rittal: DK Second pair of mounting angles, 31 U, 482.6 mm (19"), For Data Rack
Article number
DK 7296.000
Product description
To accommodate 482.6 mm (19") network components or for the attachment of component shelves and slide rails. 482.6 mm (19") punched profile at the front, hole centre distance 465 mm (470 mm at the rear), tailored to the attachment of patch panels and cable routing rails. The mounting level may be positioned on a 50 mm pitch pattern. Minimum distance between levels 150 mm, maximum distance between levels 350 mm.
Material
Sheet steel, 2 mm
Surface finish
Spray-finished
Colour
Profile frame: RAL 7035 | Trim panel: RAL 5018
Supply includes
Torsionally stiff profile frame with 482.6 mm (19") punchings | Mounting accessories
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Units
31 U
Packs of
1 pc(s).
Weight/pack
11.685 kg
PCF per pack (cradle-to-gate)
44.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177128798
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Second pair of mounting angles, 31 U, 482.6 mm (19"), For Data Rack
Feature: 482.6 mm front punchings and 19" installation width. Business Impact: Standardizes component placement and simplifies alignment across multiple rows, reducing setup time and human error. Application: Ideal for patch panels and cable routing rails in 19" data racks. Feature: 2 mm sheet steel with spray finish. Business Impact: Delivers durability and corrosion resistance in demanding IT environments, lowering maintenance costs. Application: Data centers, server rooms, and industrial networks. Feature: 50 mm pitch adjustability between levels and minimum/maximum level spacing of 150–350 mm. Business Impact: Enables flexible component density and future upgrades without rework. Application: Mixed workloads and scalable rack deployments. Feature: Torsionally stiff profile frame with mounting accessories. Business Impact: Minimizes frame twist under load, preserving panel alignment and cable routes. Application: High-density rack installs and long-term reliability. Feature: Color pairing (Profile frame: RAL 7035; Trim panel: RAL 5018) and documentation in ETIM/ECLASS standards. Business Impact: Enhances visual management and procurement traceability, supporting standardized installations. Application: IT closets and data-center cabinets. Compatibility and installation advantages: 482.6 mm depth, 19" width, and included mounting accessories streamline integration with standard 19" components, patch panels, and cable routing rails across rack architectures.
Get a Quick Quote for a Rittal 7296000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7296000?
Enquire Now
FAQs
Yes. DK 7296.000 is designed for standard 19" data racks and supports up to 31U configurations. It features 482.6 mm front punchings and a 19" installation width, with mounting accessories included to ensure straightforward integration with patch panels and cable routing rails.
Key dimensions are 31 U in height and 482.6 mm installation depth, with 19" installation width. The 50 mm pitch between levels and a 150–350 mm spacing range enable flexible component density, allowing dense patch-panel configurations while preserving clearance for cabling and airflow.
Yes. The DK 7296.000 kit includes a torsionally stiff frame with 482.6 mm punchings designed to attach patch panels and cable routing rails, and the front punched profile supports standard 19" components. It simplifies alignment and reduces the risk of mis-mounting during assembly.
The product is associated with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, with EAN 4028177128798 and customs tariff 94039910. Its PCF is 44.5 kg CO2 eq (Cat B). These data points assist with procurement validation, environmental reporting, and regulatory alignment.
The kit uses 2 mm sheet steel and a spray-finished surface for durability, reducing maintenance needs. With 31U capacity, 482.6 mm depth, and included mounting accessories, installation is faster and more repeatable, minimizing field rework and downtime. The predictable mounting geometry also supports easier future upgrades and cable management.
