Rittal DK 7297.000 Mounting Angles - 19in Data Rack 36U
Part Number: 7297000
Quick Summary
Rittal DK 7297.000 mounting angles provide a second 19" support for data racks. This helps engineers overcome fixed-layout bottlenecks that limit patch panel placement and cable routing. The product aligns with ETIM EC002620 and ECLASS 27189261 classifications, and it factors in cradle-to-gate PCF category B for sustainability. The 2 mm sheet steel construction with a spray finish delivers torsional stiffness and long-term durability, while the 36 U capacity offers flexible component organization. Installation is straightforward alongside the already-mounted frame, reducing planning time and enabling rapid changes to panel layouts as equipment evolves. For procurement, compatibility with 19" components and patch panels simplifies sourcing and stocking.
Product Information
Extended Description

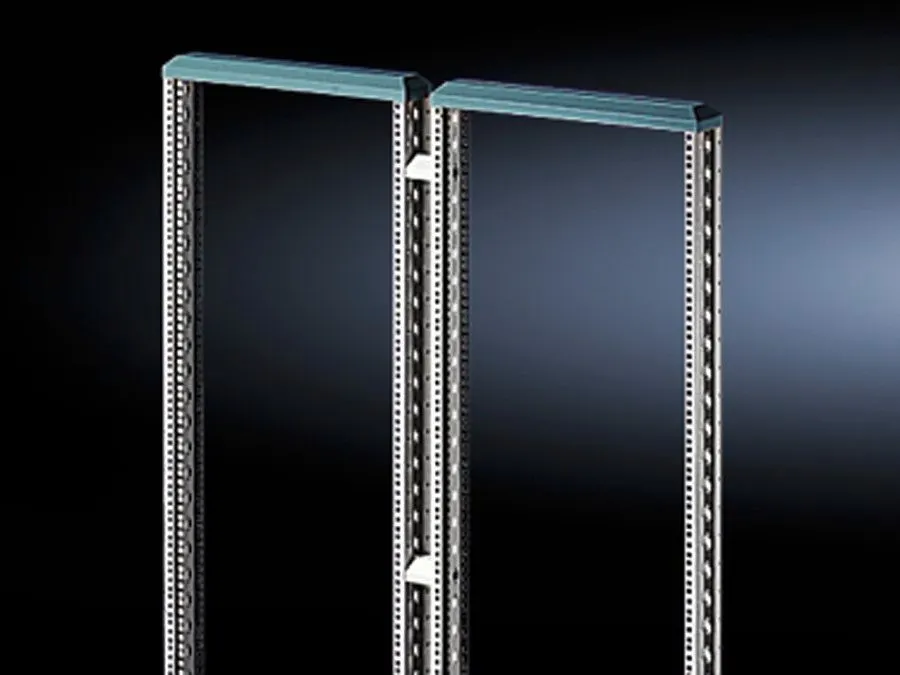

7297000 Rittal: DK Second pair of mounting angles, 36 U, 482.6 mm (19"), For Data Rack
Article number
DK 7297.000
Product description
To accommodate 482.6 mm (19") network components or for the attachment of component shelves and slide rails. 482.6 mm (19") punched profile at the front, hole centre distance 465 mm (470 mm at the rear), tailored to the attachment of patch panels and cable routing rails. The mounting level may be positioned on a 50 mm pitch pattern. Minimum distance between levels 150 mm, maximum distance between levels 350 mm.
Material
Sheet steel, 2 mm
Surface finish
Spray-finished
Colour
Profile frame: RAL 7035 | Trim panel: RAL 5018
Supply includes
Torsionally stiff profile frame with 482.6 mm (19") punchings | Mounting accessories
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Units
36 U
Packs of
1 pc(s).
Weight/pack
12.661 kg
PCF per pack (cradle-to-gate)
48.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177128811
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Second pair of mounting angles, 36 U, 482.6 mm (19"), For Data Rack
Feature → Business Impact → Application: 482.6 mm (19") punchings on a torsionally stiff 36U frame improve rigidity and provide precise mounting for patch panels and cable routing rails, reducing misalignment and rework in dense rack environments. This translates to faster deployments and cleaner cable management in data centers and network closets. Feature → Business Impact → Application: 2 mm sheet steel construction with a spray finish delivers robust load handling and corrosion resistance, lowering maintenance costs and extending component life in shared IT spaces. It supports mounting shelves and additional devices with confidence, suitable for scalable data rack installations. Feature → Business Impact → Application: Front 482.6 mm punchings and 19" width with a 50 mm pitch pattern enable flexible positioning of levels, patch panels, and rails; minimum 150 mm and maximum 350 mm spacing between levels provides predictable expansion paths for growing networks. This is ideal for evolving deployments in telecom rooms and server cabinets. Feature → Business Impact → Application: A two-tone color scheme (Profile frame in RAL 7035, Trim panel in RAL 5018) ensures visual consistency with existing rack systems and corporate color guidelines, aiding safety labeling and organization. Feature → Business Impact → Application: Supplied as a complete kit with torsionally stiff frame and mounting accessories, plus a 12.661 kg per-pack weight, supports straightforward ordering and fast on-site assembly, reducing project risk. Feature → Business Impact → Application: PCF of 48.2 kg CO2 eq (Cat B) and ETIM EC002620 / ECLASS 27189261 alignment provide sustainability visibility and compliance clarity for procurement teams and environmental reporting.
Get a Quick Quote for a Rittal 7297000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7297000?
Enquire Now
FAQs
The DK 7297.000 kit uses 482.6 mm (19 inch) punchings and a 36U frame. Install between levels with a 50 mm pitch, maintaining the 482.6 mm depth. Mounting rails and patch panels align to the standard 19" footprint for straightforward integration.
Compatibility includes 19" patch panels, cable routing rails, and other 482.6 mm (19") data rack components designed for 36U layouts. The system supports attachment of shelves and slide rails within the specified 150–350 mm interlevel spacing.
The angles are made from 2 mm sheet steel with a spray-finished surface. The profile frame color is RAL 7035 and the trim panel is RAL 5018, ensuring durable protection and a clean aesthetic suitable for data centers and office-qualified racks.
The product is classified under ETIM EC002620 and ECLASS 27189261, with a cradle-to-gate PCF category B impact. While CE or IP ratings are not explicitly listed, the data reflects standardized industrial classifications and sustainability labeling for procurement.
Each pack weighs 12.661 kg and is sold as a single unit. The kit includes a torsionally stiff profile frame with 482.6 mm punchings and all necessary mounting accessories for 36U, 19" data rack installations.
