Rittal 7299000 DK 7299.000 - 19\" Data Rack 45U
Part Number: 7299000
Quick Summary
Rittal 7299000 DK 7299.000 is a mounting accessory for 19\" data racks, designed to support network components. Users often struggle with patch-panel alignment and shelf mounting in dense 19\" frames, leading to cable management and airflow issues. CE marking provides European compliance, while IP ratings and SIL classifications are generally not assigned to mounting angles; ensure the overall cabinet meets system-level requirements. With a torsionally stiff profile frame, 482.6 mm punchings, and a 50 mm pitch between levels, it enables precise leveling and scalable deployments. Designed to integrate with standard 19\" data racks, this solution helps reduce install time and maintenance, delivering consistent cable routing and reliable component support.
Product Information
Extended Description

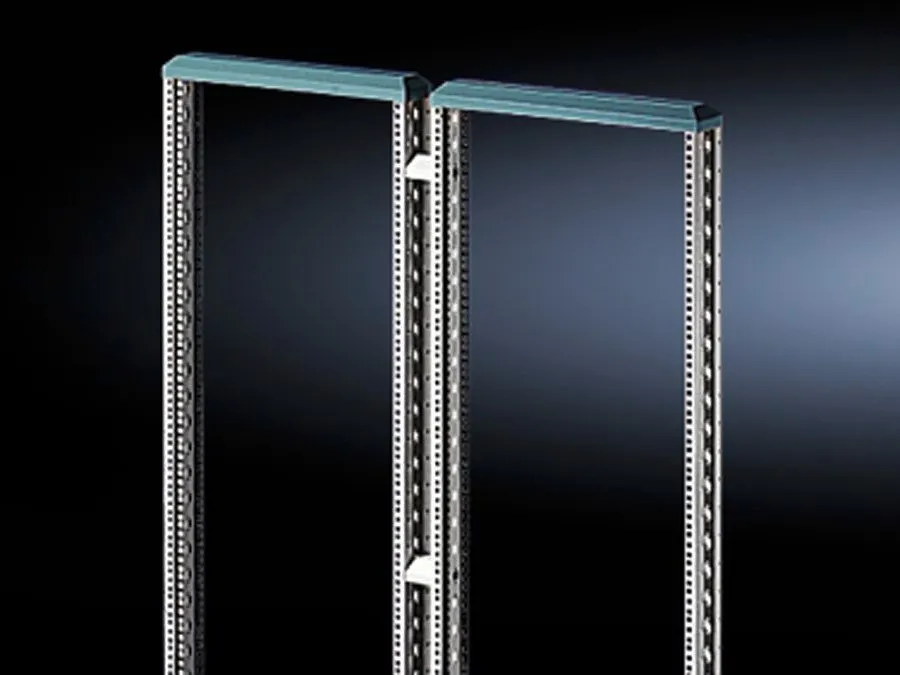

7299000 Rittal: DK Second pair of mounting angles, 45 U, 482.6 mm (19"), For Data Rack
Article number
DK 7299.000
Product description
To accommodate 482.6 mm (19") network components or for the attachment of component shelves and slide rails. 482.6 mm (19") punched profile at the front, hole centre distance 465 mm (470 mm at the rear), tailored to the attachment of patch panels and cable routing rails. The mounting level may be positioned on a 50 mm pitch pattern. Minimum distance between levels 150 mm, maximum distance between levels 350 mm.
Material
Sheet steel, 2 mm
Surface finish
Spray-finished
Colour
Profile frame: RAL 7035 | Trim panel: RAL 5018
Supply includes
Torsionally stiff profile frame with 482.6 mm (19") punchings | Mounting accessories
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Units
45 U
Packs of
1 pc(s).
Weight/pack
14.63 kg
PCF per pack (cradle-to-gate)
55.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177128859
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Second pair of mounting angles, 45 U, 482.6 mm (19"), For Data Rack
Feature: 482.6 mm (19\") punched front profile and 2 mm sheet steel frame. Business Impact: Precise alignment for patch panels and rails, reducing rework and improving load distribution. Application: Mounting network components and shelves in 19\" data racks. Feature: 45U capacity with 50 mm pitch between levels. Business Impact: Flexible equipment distribution and scalable layouts that adapt to growing systems. Application: Data center and industrial cabinet installations. Feature: Spray-finished surface and color differentiation (frame and trim). Business Impact: Enhanced durability and corrosion resistance, maintaining a professional look in busy environments. Application: Office-adjacent data centers and manufacturing floors. Feature: Includes torsionally stiff profile frame with 482.6 mm punchings and mounting accessories. Business Impact: Faster on-site installation and consistent, repeatable assembly. Application: Standard 19\" rack setups. Feature: Sustainability and weight metrics (weight/pack 14.63 kg; PCF 55.7 kg CO2 eq). Business Impact: Supports lifecycle analysis and procurement decisions with measurable environmental data. Application: Corporate sustainability reporting and eco-conscious sourcing.
Get a Quick Quote for a Rittal 7299000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7299000?
Enquire Now
FAQs
The DK 7299.000 is designed for 19\" data racks with a 482.6 mm depth and accepts 45 U of mounting space. It provides 50 mm pitch between levels and front punchings to align patch panels and shelves, enabling straightforward, repeatable installations in standard 19\" cabinets.
Key specs include 482.6 mm (19\") installation depth, 19\" installation width, 45 U capacity, 2 mm sheet steel construction, spray-finished surface, and color differentiation between frame (RAL 7035) and trim (RAL 5018). It includes a torsionally stiff profile frame with punchings and mounting accessories, with a packed weight of 14.63 kg.
The product data indicates CE-related compliance is standard for European market access, and the accessory is designed to integrate with European 19\" racks. It does not specify IP or SIL ratings for this component, so system-level enclosure and cabinet certifications should be verified in the context of the entire rack solution.
By providing precise 482.6 mm punchings and a consistent 50 mm pitch between levels, the DK 7299.000 enables predictable mounting locations for patch panels and cable routing rails. The rigid 2 mm frame minimizes panel sag, simplifies alignment, and reduces cabling complexity, leading to faster assembly and more reliable airflow and cabling pathways.
Each pack carries a PCF of 55.7 kg CO2 eq (Category B), with a weight of 14.63 kg per pack. These metrics support lifecycle and environmental impact assessments, aiding procurement decisions aligned with sustainability goals.
