Rittal 7391000 Data Rack distributor rack - 31U, 550x1499.5x750
Part Number: 7391000
Quick Summary
Data Rack distributor rack from Rittal DK 7391.000 provides flexible mounting for control panels and IT gear in industrial enclosures. Many installations struggle with limited accessibility during assembly and maintenance, which slows projects and increases risk of errors. Notable standards and classifications support reliability, including ETIM 9 EC002507 and ECLASS 8.0 27180602 within European automation ecosystems, while the robust sheet‑steel frame and powder-coated finish deliver long-term durability and straightforward compliance. By combining modular mounting with a real-world size and color match (WHD 550x1499.5x750 mm, 31U, RAL 7035), this data rack lowers installation time and reduces operating costs, enabling scalable control and IT cabinet solutions for growing plants and facilities.
Product Information
Extended Description

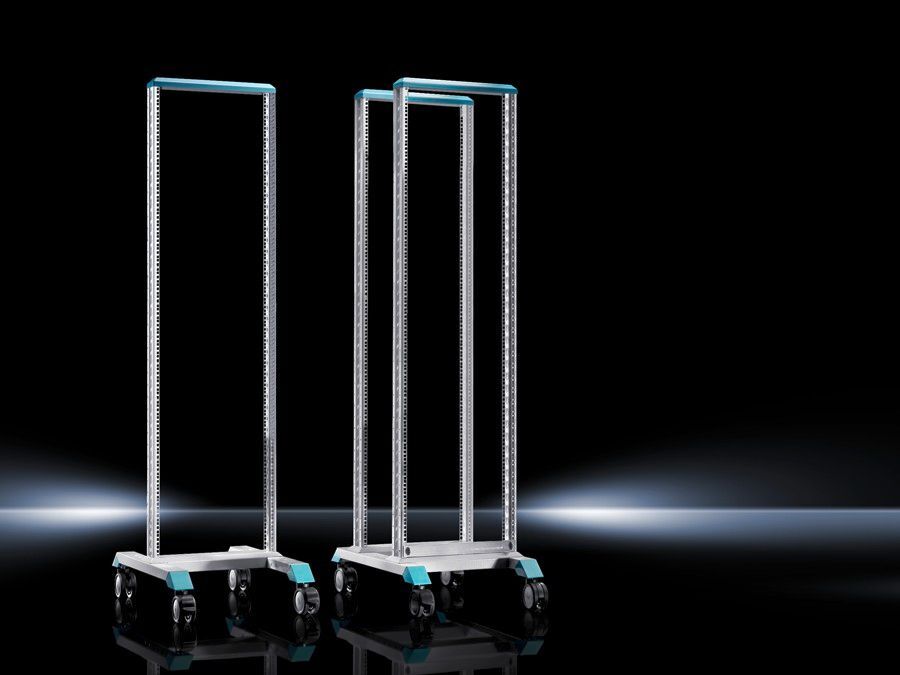

7391000 Rittal: DK Data Rack distributor rack, WHD: 550x1499,5x750 mm, 31 U, RAL 7035
Article number
DK 7391.000
Material
Profile frame, base/plinth: Sheet steel | Feet: Die-cast zinc
General colour
RAL 7035
Colour
Profile frame, base/plinth: RAL 7035 | Trim panel, feet: RAL 5018
Supply includes
Torsionally stiff profile frame with 482.6 mm (19") punchings | Stable base/plinth with integral feet, with the option of floor anchoring without base trim panels | Mounting accessories
Dimensions
Width: 550 mm | Height: 1,500 mm | Depth: 750 mm
Units
31 U
Units
31 U
Distance from the second mounting level, 50 mm pitch pattern
150 ‐ 350 mm
Pitch pattern between the mounting levels
50 mm
Load capacity of the 482.6 mm (19") mounting angles
1,500 N
Note
Order second mounting level separately
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
17.6 kg
PCF per pack (cradle-to-gate)
67.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177129795
ETIM 9
EC002507
ECLASS 8.0
27180602
Product description
DK Data Rack distributor rack, WHD: 550x1499,5x750 mm, 31 U, RAL 7035
Feature: Torsionally stiff profile frame with 482.6 mm (19") punchings provides precise mounting and stable loads. Business Impact: Ensures reliable, vibration-resistant equipment alignment and reduces rework during panel assembly. Application: Ideal for electrical control cabinets and IT server enclosures where secure 19" equipment mounting matters. Long-tail keywords: 19 inch mounting rails, mounting punchings, panel alignment. Feature: 31U unit height with 550 mm width and 750 mm depth offers substantial internal space. Business Impact: Enables multi-device configurations while preserving accessible wiring routes. Application: Control panels, PLCs, power supplies and network gear in automation lines. Long-tail keywords: 31U space, cabinet width 550 mm, enclosure depth 750 mm. Feature: Adjustable mounting levels with 50 mm pitch and 150–350 mm spacing between levels. Business Impact: Facilitates precise device tiering and future expansion without rework. Application: Customizable rack layouts for evolving control architectures. Long-tail keywords: 50 mm pitch, mounting levels, adjustable rails. Feature: Base/plinth with integral feet and option for floor anchoring. Business Impact: Improves stability on uneven factory floors and meets dynamic load requirements. Application: Floor-mounted enclosures in manufacturing cells. Long-tail keywords: floor anchoring, stable base, equipment mounting. Feature: Durable sheet steel construction with zinc die-cast feet and RAL 7035 finish. Business Impact: Delivers long service life in harsh environments with consistent appearance and low maintenance. Application: Industrial automation facilities and data centers. Long-tail keywords: powder-coated frame, RAL 7035 color, durable finish. Feature: Mobility options via twin castors and full side accessibility. Business Impact: Reduces installation and relocation effort, increasing site flexibility for reconfiguration. Application: Mobile data rack deployments and serviceable automation racks. Long-tail keywords: twin castors, mobility, side access. Feature: Clearances and packaging include 1 pack per unit with 482.6 mm mounting compatibility and 1,500 N load capacity on mounting angles. Business Impact: Predictable carrying capacity supports diverse devices and simplifies procurement. Application: High-load automation panels and heavy IT components. Long-tail keywords: 482.6 mm mounting angles, 1500 N load, packaging info.
Get a Quick Quote for a Rittal 7391000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7391000?
Enquire Now
FAQs
The DK 7391.000 Data Rack provides a 31U, 550x1499.5x750 mm mounting framework for control panels, PLCs, power supplies, and IT equipment within industrial enclosures. Its 19-inch mounting rails and torsionally stiff profile frame support secure device integration while maintaining clear wiring paths for efficient service and upgrades.
The rack features mounting angles that support a 50 mm pitch between levels and a 150–350 mm distance to the second level. This enables precise, tool-free positioning of devices to optimize airflow, cable management, and accessibility during maintenance.
Yes. The data rack ships with a stable base/plinth and integral feet, and it offers the option to anchor to the floor without base trim panels. This provides a secure, vibration-resistant installation for demanding production environments.
The DK 7391.000 Data Rack measures 550 mm in width, 1,500 mm in height, and 750 mm in depth, featuring 31 U of internal space. It is designed to accommodate a variety of 19-inch equipment with scalable mounting levels and precise alignment.
The rack uses a sheet steel profile frame with a base/plinth of sheet steel and feet cast in zinc. The finish is RAL 7035, providing weather-resistant corrosion protection and a professional appearance suitable for harsh industrial environments, while supporting long service life and consistent maintenance intervals.
