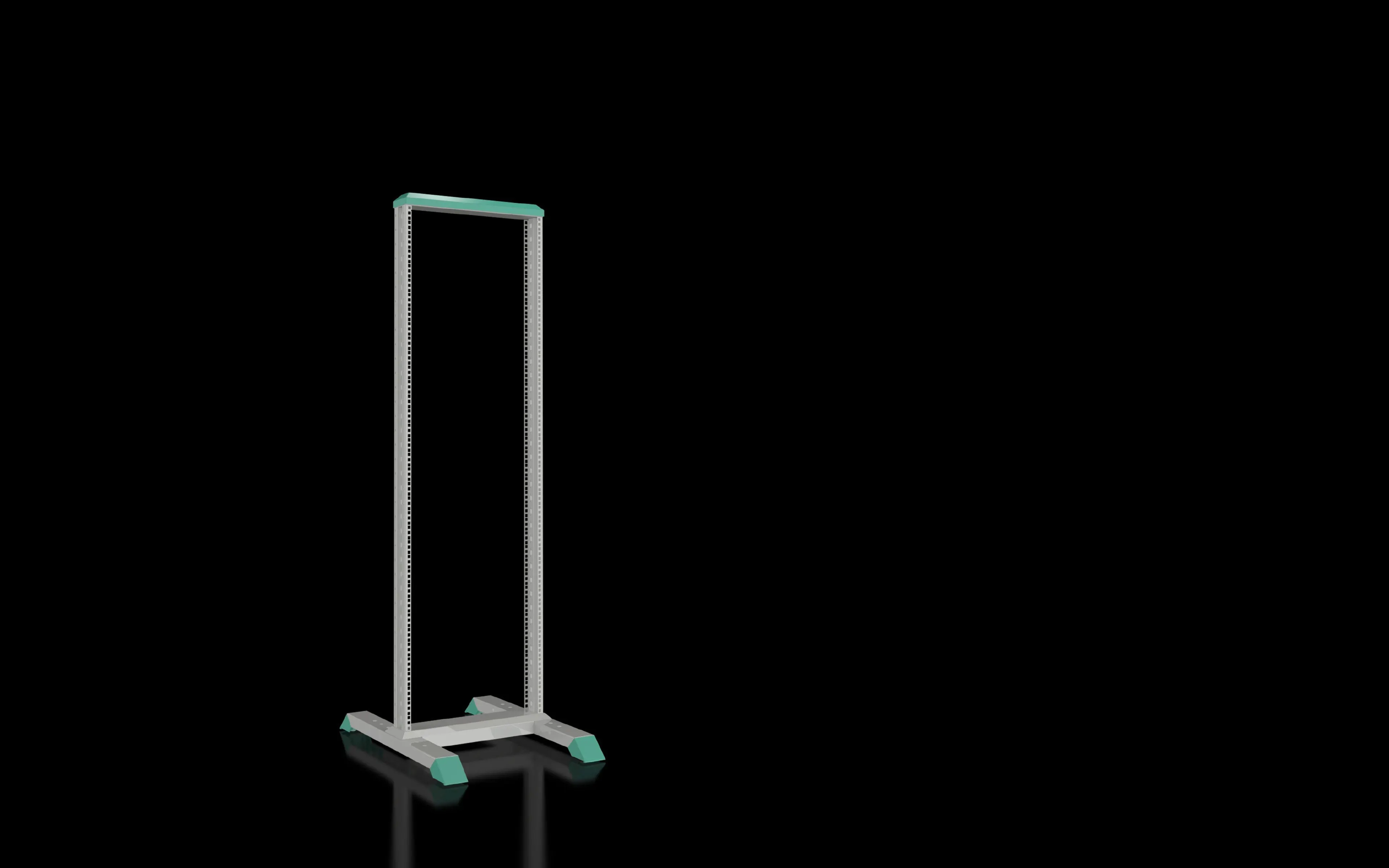

Rittal DK 7396.000 Data Rack - 36U, RAL 7035
Part Number: 7396000
Quick Summary
Rittal DK 7396.000 Data Rack enables easy access to mounted gear in control cabinets and IT racks. End users often struggle with restricted service access during installation or maintenance in tight spaces. While specific CE or IP markings are not listed in the data, the rack aligns with ETIM EC002507 and ECLASS 27180602 for interoperability and procurement consistency. The combination of a torsionally stiff profile frame, sheet steel construction, and 482.6 mm (19") punchings supports scalable automation layouts while enabling reliable floor anchoring where needed, with mobility via twin castors for flexible layout changes. This data rack is designed to reduce installation time and move equipment efficiently, delivering predictable total cost of ownership for industrial environments.
Product Information
Extended Description
7396000 Rittal: DK Data Rack distributor rack, WHD: 550x1721,8x750 mm, 36 U, RAL 7035
Article number
DK 7396.000
Material
Profile frame, base/plinth: Sheet steel | Feet: Die-cast zinc
General colour
RAL 7035
Colour
Profile frame, base/plinth: RAL 7035 | Trim panel, feet: RAL 5018
Supply includes
Torsionally stiff profile frame with 482.6 mm (19") punchings | Stable base/plinth with integral feet, with the option of floor anchoring without base trim panels | Mounting accessories
Dimensions
Width: 550 mm | Height: 1,722 mm | Depth: 750 mm
Units
36 U
Units
36 U
Distance from the second mounting level, 50 mm pitch pattern
150 ‐ 350 mm
Pitch pattern between the mounting levels
50 mm
Load capacity of the 482.6 mm (19") mounting angles
1,500 N
Note
Order second mounting level separately
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
18.65 kg
PCF per pack (cradle-to-gate)
71.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177129894
ETIM 9
EC002507
ECLASS 8.0
27180602
Product description
DK Data Rack distributor rack, WHD: 550x1721,8x750 mm, 36 U, RAL 7035
Feature → Business Impact → Application: The DK 7396.000 uses a robust profile frame and base/plinth with die-cast zinc feet, delivering a rigid structure that resists flex under load and improves enclosure longevity. This translates to fewer service interruptions and safer cable management in high-vibration environments, ideal for a wide range of industrial automation applications and data center enclosures. Feature → Business Impact → Application: 482.6 mm (19") mounting punchings with a load capacity of 1,500 N on the 19" mounting angles enable heavier power supplies, controllers, and front-end modules to be mounted without compromising rail integrity. This reduces the need for additional intermediate enclosures and supports scalable control cabinet configurations in manufacturing lines. Feature → Business Impact → Application: The 550 mm width and 1,722 mm height provide ample room for multi-row equipment and ergonomic access, streamlining installation and maintenance in both new builds and retrofit projects. Feature → Business Impact → Application: Twin castors offer mobility for reconfiguration during commissioning or facility reorganization, while the option to floor-anchor without base trim panels preserves floor plans and minimizes downtime during layout changes. Feature → Business Impact → Application: The RAL 7035 finish with complementary trim details aids color-coded organization and visual system integration, supporting standardized maintenance practices and reducing mis-routing of cables and components. Feature → Business Impact → Application: With a weight of 18.65 kg per pack and a cradle-to-gate PCF of 71.1 kg CO2 eq (Cat B), logistics planning becomes more predictable and sustainability credentials are transparent, supporting green procurement goals. Feature → Business Impact → Application: Notes indicate that a second mounting level must be ordered separately, enabling phased expansion aligned to project milestones and budget cycles without over-specifying early in a build.
Get a Quick Quote for a Rittal 7396000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7396000?
Enquire Now
FAQs
Installation starts with aligning the 482.6 mm (19") punchings and securing the base/plinth. Attach mounting angles, snap in the rear rails if required, and position the unit for level mounting. Consider ordering the second mounting level separately if extra bays are needed. Use the floor-anchoring option for permanent installations to maximize stability.
The DK 7396.000 supports 19" mounting with a rated load capacity of 1,500 N on the 482.6 mm punchings. It provides 36 U of height and standard 550 mm width, making it compatible with most 19" front-access equipment used in industrial control and IT environments.
Yes. The data rack combines a robust sheet steel frame with a quality RAL 7035 finish, 36U capacity, and 19" mounting rails, which are common across IT and automation gear. Its mobility with twin castors and optional floor anchoring supports flexible deployment in laboratories, production floors, and control rooms.
This product references ETIM EC002507 and ECLASS 27180602 classifications, supporting interoperability and procurement workflows. Specific CE or IP ratings are not listed in the provided data; for formal compliance confirmation, consult the manufacturer or regional compliance documentation.
The rack weighs 18.65 kg per pack and has a cradle-to-gate PCF of 71.1 kg CO2 eq (Cat B), aiding logistics planning and environmental reporting. Its floor-anchoring option, 36U capacity, and modular mounting approach reduce rearrangements and optimize long-term total cost of ownership.
