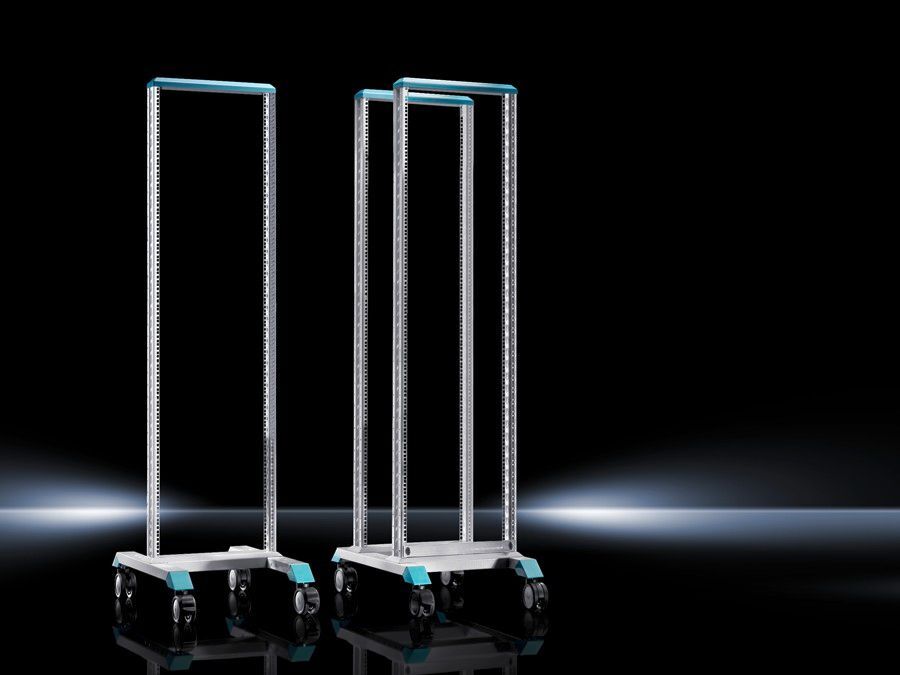

Rittal 7400000 Data Rack - 40 U
Part Number: 7400000
Quick Summary
Data Rack enables full access around the enclosure for quick assembly and service. Engineers often struggle with restricted access and slow installations in crowded cabinets. In regulated EU environments, CE compliance and enclosure-standard alignment are expected; check the datasheet for exact certifications. With a 40 U capacity and a torsionally stiff profile frame, this Rittal rack supports scalable IT infrastructure while delivering reliable mounting for 482.6 mm (19”) equipment. The design emphasizes durability and repeatable mounting accuracy, helping procurement reduce lead times and maintenance cycles. Ideal for data centers, industrial control panels, and distributed automation, it integrates smoothly with existing 19" rails and floor anchors, delivering measurable total cost of ownership benefits.
Product Information
Extended Description
7400000 Rittal: DK Data Rack distributor rack, WHD: 550x1899,5x750 mm, 40 U, RAL 7035
Article number
DK 7400.000
Material
Profile frame, base/plinth: Sheet steel | Feet: Die-cast zinc
General colour
RAL 7035
Colour
Profile frame, base/plinth: RAL 7035 | Trim panel, feet: RAL 5018
Supply includes
Torsionally stiff profile frame with 482.6 mm (19") punchings | Stable base/plinth with integral feet, with the option of floor anchoring without base trim panels | Mounting accessories
Dimensions
Width: 550 mm | Height: 1,900 mm | Depth: 750 mm
Units
40 U
Units
40 U
Distance from the second mounting level, 50 mm pitch pattern
150 ‐ 350 mm
Pitch pattern between the mounting levels
50 mm
Load capacity of the 482.6 mm (19") mounting angles
1,500 N
Note
Order second mounting level separately
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
19.8 kg
PCF per pack (cradle-to-gate)
75.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177129979
ETIM 9
EC002507
ECLASS 8.0
27180602
Product description
DK Data Rack distributor rack, WHD: 550x1899,5x750 mm, 40 U, RAL 7035
Feature: 40 U capacity and precise 482.6 mm (19") mounting with 50 mm pitch. Business Impact: Enables high-density equipment layouts with scalable expansion while maintaining mounting accuracy. Application: Data centers and control cabinets where space efficiency and future upgrades matter. Feature: Torsionally stiff profile frame and stable base/plinth with integral feet. Business Impact: Improves structural rigidity and vibration resistance, reducing downtime and component wear. Application: Industrial environments with demanding equipment, such as automation panels and telecom racks. Feature: Material and finish—sheet steel frame, die-cast zinc feet, RAL 7035 body, trim in RAL 5018. Business Impact: Delivers durable corrosion resistance and consistent facility-wide aesthetics, aiding standardization. Application: Enterprise and manufacturing facilities requiring consistent color coding and long service life. Feature: Mobility plus anchoring options—twin castors for mobility and floor anchoring without base trim panels. Business Impact: Supports flexible layouts and easy relocation during line changes or maintenance. Application: Production floors and workshop environments where frequent reconfiguration is needed. Feature: Load capacity of 1,500 N on 19" mounting angles. Business Impact: Ensures safe mounting of heavy equipment with predictable deflection, reducing risk of damage. Application: Server and automation equipment with rigorous mounting requirements. Feature: Packaging and sustainability—PCF 75.4 kg CO2 eq (Cat B). Business Impact: Lower environmental footprint per unit and easier sustainability reporting. Application: Green manufacturing initiatives and compliance auditing.
Get a Quick Quote for a Rittal 7400000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7400000?
Enquire Now
FAQs
The DK 7400.000 supports standard 482.6 mm (19") mounting rails and punches with a 50 mm pitch between levels, including the option for a second mounting level (order separately). This ensures precise alignment for 19-inch equipment and accommodates scalable configurations while preserving a compact footprint.
Installation includes a torsionally stiff profile frame and a stable base/plinth with integral feet, plus the option of floor anchoring without base trim panels. For relocation, the unit supports mobility with twin castors, enabling quick reconfiguration without disconnecting equipment or tools, then secure it again for stability.
The 482.6 mm (19") mounting angles are rated for up to 1,500 N, allowing safe support of heavy equipment. This rating helps ensure even load distribution, reduces deflection, and maintains mounting integrity under dynamic conditions common in industrial environments.
The frame is sheet steel with die-cast zinc feet, delivering robust durability. The main body is finished in RAL 7035, with trim panels in RAL 5018, supporting color standardization across facilities and improving corrosion resistance and visual consistency in demanding environments.
Review the cradle-to-gate PCF data of 75.4 kg CO2 eq (Cat B) and the product’s ECLASS 8.0 and ETIM 9 classifications for procurement systems. Also check for CE markings and any region-specific compliance details in the official datasheet before purchase and deployment to meet corporate sustainability and regulatory requirements.
