Rittal 7400000 Data Rack - 40 U
Part Number: 7402000
Quick Summary
Data Rack enables full access around the enclosure for quick assembly and service. Engineers often struggle with restricted access and slow installations in crowded cabinets. In regulated EU environments, CE compliance and enclosure-standard alignment are expected; check the datasheet for exact certifications. With a 40 U capacity and a torsionally stiff profile frame, this Rittal rack supports scalable IT infrastructure while delivering reliable mounting for 482.6 mm (19”) equipment. The design emphasizes durability and repeatable mounting accuracy, helping procurement reduce lead times and maintenance cycles. Ideal for data centers, industrial control panels, and distributed automation, it integrates smoothly with existing 19" rails and floor anchors, delivering measurable total cost of ownership benefits.
Product Information
Extended Description

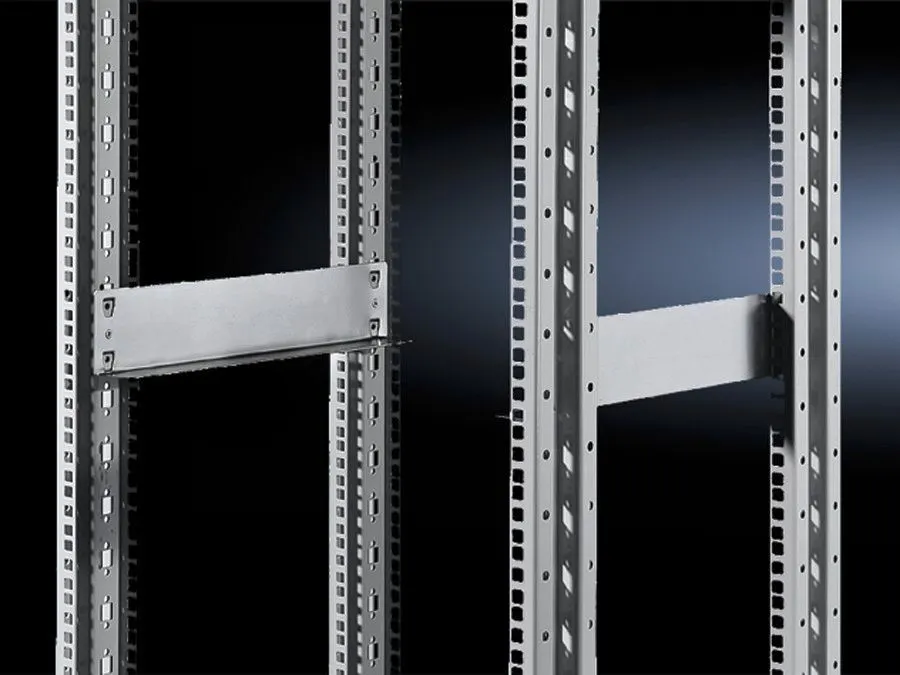

7402000 Rittal: DK Slide rail, continuous, For two 482.6 mm (19")-mounting angles (front+rear), For Data Rack
Article number
DK 7402.000
Product description
To support heavy equipment in the Data Rack. The preconfigured 350 mm mounting distance between the two mounting levels in the Data Rack precisely matches the mounting distance between the slide rails. Alternatively, components may also be accommodated on component shelves for fixing to a mounting level. This is available in both a static and pull-out variant.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Load capacity
500 N, static
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Packs of
2 pc(s).
Weight/pack
1.072 kg
PCF per pack (cradle-to-gate)
4.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177187177
ETIM 9
EC000386
ECLASS 8.0
27400501
Product description
DK Slide rail, continuous, For two 482.6 mm (19")-mounting angles (front+rear), For Data Rack
Feature: 40 U capacity and precise 482.6 mm (19") mounting with 50 mm pitch. Business Impact: Enables high-density equipment layouts with scalable expansion while maintaining mounting accuracy. Application: Data centers and control cabinets where space efficiency and future upgrades matter. Feature: Torsionally stiff profile frame and stable base/plinth with integral feet. Business Impact: Improves structural rigidity and vibration resistance, reducing downtime and component wear. Application: Industrial environments with demanding equipment, such as automation panels and telecom racks. Feature: Material and finish—sheet steel frame, die-cast zinc feet, RAL 7035 body, trim in RAL 5018. Business Impact: Delivers durable corrosion resistance and consistent facility-wide aesthetics, aiding standardization. Application: Enterprise and manufacturing facilities requiring consistent color coding and long service life. Feature: Mobility plus anchoring options—twin castors for mobility and floor anchoring without base trim panels. Business Impact: Supports flexible layouts and easy relocation during line changes or maintenance. Application: Production floors and workshop environments where frequent reconfiguration is needed. Feature: Load capacity of 1,500 N on 19" mounting angles. Business Impact: Ensures safe mounting of heavy equipment with predictable deflection, reducing risk of damage. Application: Server and automation equipment with rigorous mounting requirements. Feature: Packaging and sustainability—PCF 75.4 kg CO2 eq (Cat B). Business Impact: Lower environmental footprint per unit and easier sustainability reporting. Application: Green manufacturing initiatives and compliance auditing.
Get a Quick Quote for a Rittal 7402000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7402000?
Enquire Now
FAQs
The DK 7400.000 supports standard 482.6 mm (19") mounting rails and punches with a 50 mm pitch between levels, including the option for a second mounting level (order separately). This ensures precise alignment for 19-inch equipment and accommodates scalable configurations while preserving a compact footprint.
Installation includes a torsionally stiff profile frame and a stable base/plinth with integral feet, plus the option of floor anchoring without base trim panels. For relocation, the unit supports mobility with twin castors, enabling quick reconfiguration without disconnecting equipment or tools, then secure it again for stability.
The 482.6 mm (19") mounting angles are rated for up to 1,500 N, allowing safe support of heavy equipment. This rating helps ensure even load distribution, reduces deflection, and maintains mounting integrity under dynamic conditions common in industrial environments.
The frame is sheet steel with die-cast zinc feet, delivering robust durability. The main body is finished in RAL 7035, with trim panels in RAL 5018, supporting color standardization across facilities and improving corrosion resistance and visual consistency in demanding environments.
Review the cradle-to-gate PCF data of 75.4 kg CO2 eq (Cat B) and the product’s ECLASS 8.0 and ETIM 9 classifications for procurement systems. Also check for CE markings and any region-specific compliance details in the official datasheet before purchase and deployment to meet corporate sustainability and regulatory requirements.
