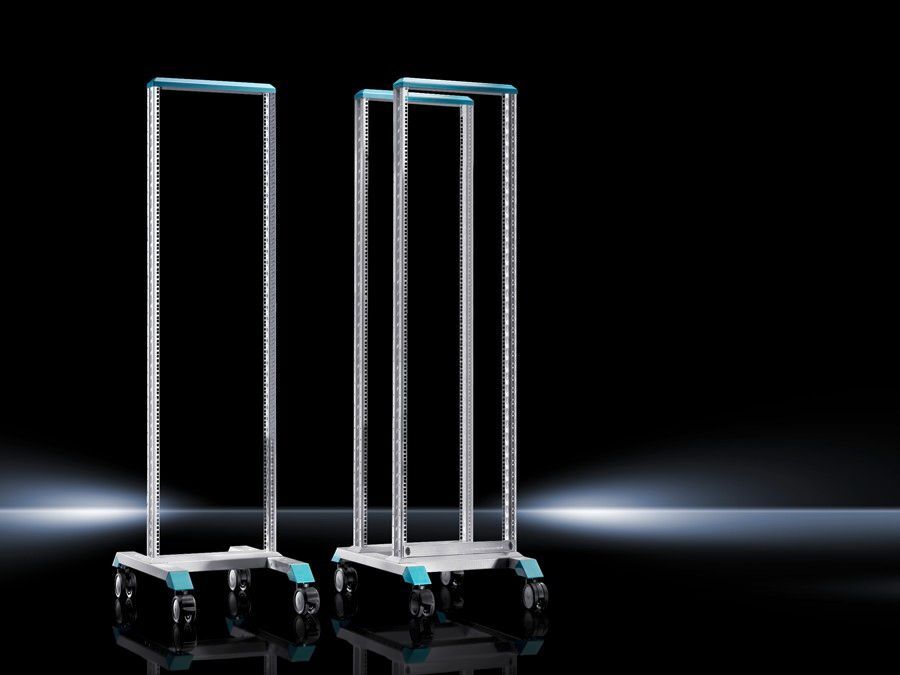

Rittal 7445000 Data Rack - 45U, WHD 550×2121×750 mm
Part Number: 7445000
Quick Summary
Rittal 7445000 Data Rack is a durable distributor rack for accessible server, control, and automation gear installations. Engineers often struggle with side access during assembly and mobility when reconfiguring layouts in tight industrial spaces. Certification notes: CE, IP ratings and SIL details are not specified in this dataset; confirm with the manufacturer to ensure compliance for your plant safety and regulatory requirements. This product supports scalable automation enclosures with standardized mounting rails and modular options, delivering faster installations and lower lifecycle costs.
Product Information
Extended Description
7445000 Rittal: DK Data Rack distributor rack, WHD: 550x2121,8x750 mm, 45 U, RAL 7035
Article number
DK 7445.000
Material
Profile frame, base/plinth: Sheet steel | Feet: Die-cast zinc
General colour
RAL 7035
Colour
Profile frame, base/plinth: RAL 7035 | Trim panel, feet: RAL 5018
Supply includes
Torsionally stiff profile frame with 482.6 mm (19") punchings | Stable base/plinth with integral feet, with the option of floor anchoring without base trim panels | Mounting accessories
Dimensions
Width: 550 mm | Height: 2,122 mm | Depth: 750 mm
Units
45 U
Units
45 U
Distance from the second mounting level, 50 mm pitch pattern
150 ‐ 350 mm
Pitch pattern between the mounting levels
50 mm
Load capacity of the 482.6 mm (19") mounting angles
1,500 N
Note
Order second mounting level separately
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
20.772 kg
PCF per pack (cradle-to-gate)
79.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177130524
ETIM 9
EC002507
ECLASS 8.0
27180602
Product description
DK Data Rack distributor rack, WHD: 550x2121,8x750 mm, 45 U, RAL 7035
Feature The DK 7445000 uses a torsionally stiff profile frame and sheet steel base with die-cast zinc feet. Business impact This combination delivers high structural rigidity and durable support for heavy equipment, reducing deflection and maintenance. Application Ideal for factory automation cabinets, PLC racks, and panel distribution in harsh environments. Feature The 482.6 mm (19") mounting angles provide a load capacity of 1,500 N and a 50 mm pitch pattern with 150–350 mm spacing between mounting levels. Business impact Enables secure mounting of drives, controllers, and power supplies with predictable vibration resistance. Application Data racks and control enclosures in packaging lines, conveyors, and machine centers. Feature Supply includes torsionally stiff frame with 482.6 mm punchings; base/plinth with integral feet allows floor anchoring without base trim panels. Business impact Simplifies installation planning and reduces floor prep time; enables secure anchoring. Application Manufacturing cells and assembly lines needing reliable, modular enclosures. Feature Mobility and installation options: stable base, integral feet, with option of floor anchoring and twin castors to enable easy relocation. Business impact Increases layout flexibility and reduces downtime during plant reconfigurations. Application Food, beverage, and general manufacturing environments with dynamic line changes. Feature Finish and standards: Body in RAL 7035 with trim panel feet in RAL 5018; robust weight and packaging details plus cradle‑to‑gate PCF data. Business impact Supports visual standardization, environmental reporting, and sustainable procurement. Application Corporate facilities programs and ESG reporting for enclosure components. Feature Compatibility: 19" punching, notes include order of second mounting level separately and mounting accessories. Business impact Ensures quick integration with existing 19" equipment and future expansions. Application System integrators assembling multi‑ cabinet plants and upgrade projects.
Get a Quick Quote for a Rittal 7445000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7445000?
Enquire Now
FAQs
Yes. It uses 482.6 mm (19") mounting punchings and accommodates a 45 U rack height. The 50 mm pitch between mounting levels supports secure placement of drives, controllers, and power distribution units. If you need a second mounting level, order it separately and integrate it with the existing frame.
Dimensions are Width 550 mm, Height 2,122 mm, Depth 750 mm. The rack is supplied as a single pack weighing 20.772 kg, with a cradle-to-gate PCF of 79.1 kg CO2 eq (Category B). This information helps with space planning and lifecycle assessments.
The 150–350 mm adjustable spacing, with 50 mm pitch, enables flexible placement of equipment to optimize cable routing, airflow, and component accessibility. This is ideal for PLCs, drives, and I/O modules in dynamic automation environments where reconfiguration is common.
The data rack includes a stable base/plinth with integral feet and offers floor anchoring without base trim panels. It also supports mobile configurations when paired with twin castors, allowing quick relocation in changing production layouts or maintenance scenarios.
The product provides cradle-to-gate PCF data of 79.1 kg CO2 eq (Cat B) per pack, reflecting its environmental footprint. Weight per pack is 20.772 kg, aiding sustainability reporting and supplier risk assessments during procurement.
