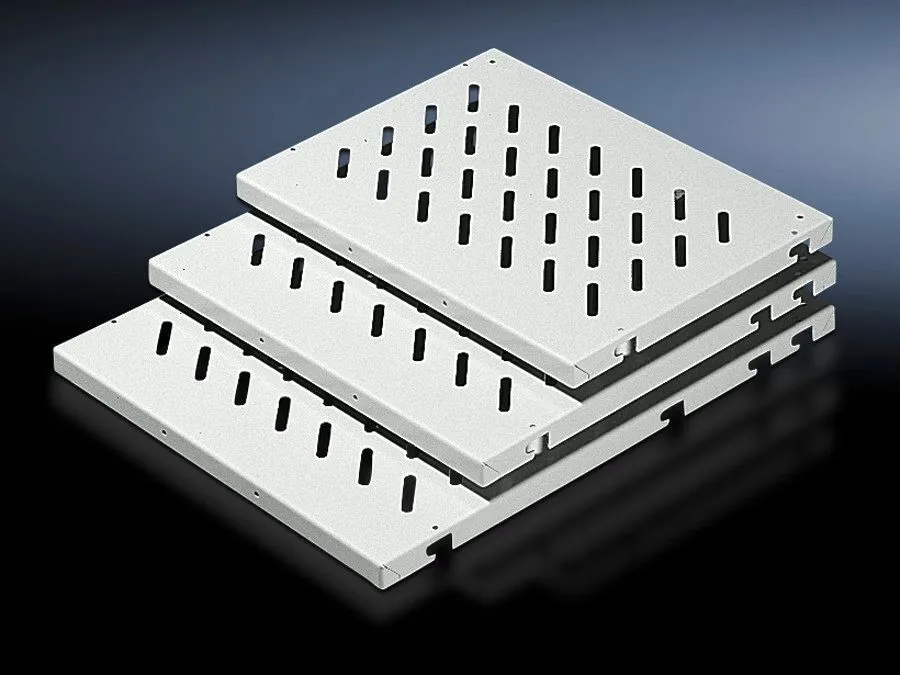

Rittal 7464035 Component Shelf - 100 kg Capacity, Slotted
Part Number: 7464035
Manufacturer
Rittal
Part number
7464035
Alt Part Number
DK 7464.035
Quick Summary
The Rittal 7464035 component shelf is a frame-attached storage solution for enclosures lacking 482.6 mm (19") accommodation. Engineers often face mounting space constraints and misalignment when standard 19" backplanes aren’t available, which this shelf directly addresses. Designed with industry practice in mind, it supports reliable, repeatable mounting in demanding environments. These solutions align with common standards and classifications, including ETIM 9 EC002620 and ECLASS 8.0 27189261, while offering a durable RAL 7035, spray-finished finish on sheet steel. The combination of flexible mounting and robust construction translates into faster installations, reduced rework, and improved space utilization for critical control and power distribution components.
Product Information
Extended Description
7464035 Rittal: DK Component shelf, WHD: 471x45x400 mm, 100 kg, For frame attachment, For W: 600 mm, RAL 7035
Article number
DK 7464.035
Design
Slotted
Product description
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation.
Benefits
Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth.
Applications
For installation in enclosures without 482.6 mm (19") accommodation
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Component shelf, slotted | 2 mounting rails
Installation options
Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange
Load capacity
100 kg area load
Assembly instruction
Additionally, two punched sections with mounting flanges are required for the inner mounting level
Note
Max. depth of component shelves = Enclosure depth - 100 mm.
Dimensions
Width: 471 mm | Height: 45 mm | Depth: 400 mm
To fit
Enclosure type: VX | VX IT | TS IT | Width: 600 mm
Packs of
1 pc(s).
Weight/pack
5.629 kg
PCF per pack (cradle-to-gate)
21.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177165977
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 471x45x400 mm, 100 kg, For frame attachment, For W: 600 mm, RAL 7035
Feature: Slotted design enables mounting bolts or rails to be installed on a 25 mm pitch pattern, delivering installation flexibility and faster rail alignment. Business Impact: Reduces assembly time and errors, improves access to wiring, and supports standardized layouts across multiple enclosures. Application: Use in VX, VX IT, TS IT series enclosures where 600 mm wide frames require non-19 inch mounting support. Feature: 100 kg area load capacity ensures stable support for heavy components and adds resilience against vibration. Business Impact: Minimizes risk of component shift and simplifies upgrade planning. Application: Suitable for mixed hardware mounts and power distribution components within frame-attached shelves. Feature: Dimensions 471x45x400 mm with a 600 mm W fit and max shelf depth rule provides predictable space planning. Business Impact: Streamlines enclosure design and procurement, reduces overhang, and enables consistent cooling paths. Application: Fits standard 600 mm wide VX family enclosures. Feature: Material and finish – sheet steel, spray-finished, RAL 7035 – offers durability and corrosion resistance in industrial environments. Business Impact: Extends service life and reduces maintenance, supporting long-term ROI. Application: Ideal for manufacturing floors, control rooms, and equipment cabinets. Feature: Supplied as a complete kit – component shelf, slotted plus two mounting rails – minimizes sourcing steps. Business Impact: Lowers total cost of ownership by simplifying purchase and installation. Application: Ready-to-install on site with minimal additional parts. Feature: Installation options include static installation with fixing bolts on punched sections and a defined mounting depth rule. Business Impact: Provides secure, vibration-resistant mounting without modifying enclosure flanges. Application: Use when retrofitting frames in VX/VX IT/TS IT configurations. Feature: PCF sustainability indicator of 21.4 kg CO2 eq (Cat B) per pack supports greener design choices. Business Impact: Enables carbon accounting and responsible procurement. Application: Use in projects targeting lower environmental impact while meeting regulatory and internal sustainability goals.
Get a Quick Quote for a Rittal 7464035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7464035?
Enquire Now
FAQs
The DK 7464.035 shelf supports static installation using fixing bolts on punched sections without a mounting flange, and it ships with two mounting rails. It is designed to be mounted on a 25 mm pitch pattern within enclosure depths, enabling flexible alignment and straightforward integration with standard VX, VX IT, and TS IT frames.
The 25 mm pitch pattern standardizes rail placement, allowing quick alignment of mounting bolts and rails without custom drilling. This reduces drilling steps, minimizes misalignment, speeds up assembly, and ensures consistent spacing for cables and components, which translates into shorter commissioning times and improved traceability.
Yes. The component shelf is designed for enclosures in the VX family and IT variants, with a 600 mm width fit and frame-attached configuration. It supports installation within enclosures that do not provide 19-inch accommodation, aligning with W 600 mm requirements and the VX | VX IT | TS IT series.
The shelf provides a 100 kg area load capacity. To preserve performance, distribute weight evenly across the shelf surface and ensure mounting rails are correctly secured to the punched sections. Do not exceed the recommended 100 kg area load per shelf to maintain safe operation and minimize deflection or vibration.
Constructed from sheet steel with a spray-finished surface in RAL 7035, the shelf offers durability and corrosion resistance for industrial environments. Each pack has a PCF of 21.4 kg CO2 eq (Cat B), supporting carbon accounting in product lifecycle assessments and enabling greener procurement decisions.
