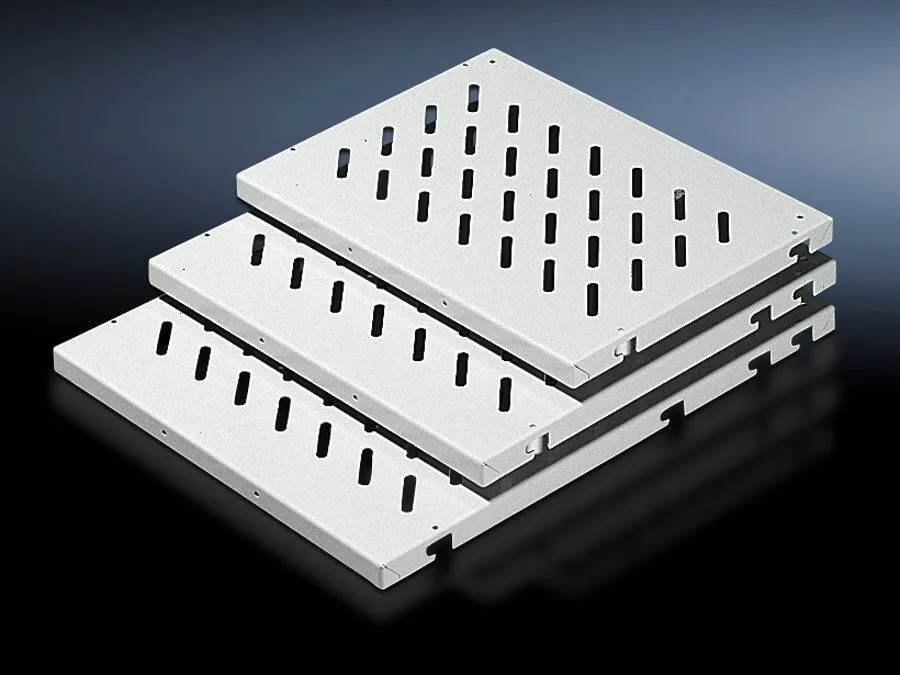

Rittal DK 7465.035 Component Shelf - 100 kg Load
Part Number: 7465035
Manufacturer
Rittal
Part number
7465035
Alt Part Number
DK 7465.035
Quick Summary
Rittal DK 7465.035 Component Shelf is a frame‑attachment solution for mounting in enclosures without 19 inch accommodation. Installers often struggle with space constraints and inconsistent mounting layouts, making it difficult to achieve reliable equipment alignment and service access. While the shelf supports a 471 mm width, 45 mm height and 500 mm depth with a 100 kg load capacity, it also fits VX, VX IT and TS IT enclosures with a 600 mm width. Note that explicit CE, IP, or SIL certifications are not listed in the data; verify with documentation for your regulatory requirements. By leveraging a 25 mm pitch pattern and two mounting rails, this accessory speeds installation, standardizes mounting, and reduces customization needs, delivering deterministic system performance and lower total cost of ownership.
Product Information
Extended Description
7465035 Rittal: DK Component shelf, WHD: 471x45x500 mm, 100 kg, For frame attachment, For W: 600 mm, RAL 7035
Article number
DK 7465.035
Design
Slotted
Product description
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation.
Benefits
Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth.
Applications
For installation in enclosures without 482.6 mm (19") accommodation
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Component shelf, slotted | 2 mounting rails
Installation options
Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange
Load capacity
100 kg area load
Assembly instruction
Additionally, two punched sections with mounting flanges are required for the inner mounting level
Note
Max. depth of component shelves = Enclosure depth - 100 mm.
Dimensions
Width: 471 mm | Height: 45 mm | Depth: 500 mm
To fit
Enclosure type: VX | VX IT | TS IT | Width: 600 mm
Packs of
1 pc(s).
Weight/pack
6.706 kg
PCF per pack (cradle-to-gate)
25.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177165984
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 471x45x500 mm, 100 kg, For frame attachment, For W: 600 mm, RAL 7035
Feature: Frame attachment compatibility for enclosures without 19" accommodation. Business Impact: Enables reliable mounting without custom enclosures, reducing project lead times. Application: Ideal for VX, VX IT, and TS IT systems with 600 mm width, streamlining installs in standard Cabinet families. Feature: 471 mm width x 45 mm height x 500 mm depth with 100 kg load capacity. Business Impact: Supports heavier components and scalable rack‑level solutions, improving payload management and serviceability. Application: Use where a compact shelf is needed inside a 600 mm wide enclosure to maximize usable space. Feature: Sheet steel, spray-finished, RAL 7035. Business Impact: Delivers durable, corrosion‑resistant surfaces suitable for industrial environments, reducing maintenance costs. Application: Suitable for factory floors, control panels, and dusty environments where visuals and longevity matter. Feature: Supplied with component shelf, slotted and 2 mounting rails. Business Impact: Ready‑to‑install accessory reduces sourcing steps and speeds time‑to‑value. Application: Immediate use in frame‑attachment configurations with standard rails. Feature: Installation guidance and depth note. Business Impact: Ensures correct fitment by clarifying depth constraints, preventing ordering errors. Application: Max shelf depth equals enclosure depth minus 100 mm, aiding enclosure planning. Feature: PCF and sustainability data. Business Impact: Supports sustainability reporting and lifecycle planning with documented CO2 footprint. Application: Useful for green procurement programs and cradle‑to‑grave calculations.
Get a Quick Quote for a Rittal 7465035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7465035?
Enquire Now
FAQs
The DK 7465.035 is designed for frame attachment inside enclosures that do not provide 19" mounting space. It fits VX, VX IT, and TS IT families with a 600 mm width, using the two included mounting rails and the 25 mm pitch pattern. In static installations, it can be mounted on punched sections without mounting flanges, aligning with enclosure standards and reducing custom fabrication.
The component shelf supports mounting bolts or rails on a 25 mm pitch pattern along the enclosure depth. It ships with two slotted mounting rails and requires inner mounting levels with punched sections and mounting flanges for full support. This configuration enables consistent placement and easier component re‑use across similar enclosure sizes.
This shelf provides a 100 kg area load capacity, allowing robust distribution of mounted equipment across the shelf area. If mounted on punched sections without a mounting flange, the static installation capacity is limited to 50 kg. Plan load distribution accordingly to avoid local overloading and to maintain enclosure integrity and airflow.
The shelf measures 471 mm wide by 45 mm high and 500 mm deep, made from sheet steel with a spray finish in RAL 7035. It is supplied as a single component shelf with two rails, and its weight per pack is 6.706 kg. The design targets durable service in industrial environments while maintaining a clean look.
Each pack carries a PCF of 25.5 kg CO2 eq (Cat B), reflecting its cradle-to-gate footprint. The product is designed for standard Rittal enclosure ecosystems and aligns with common industrial manufacturing practices. Always verify regulatory certifications (CE/IP/SIL) in your region and with your supplier documentation to ensure full compliance in your installation.
