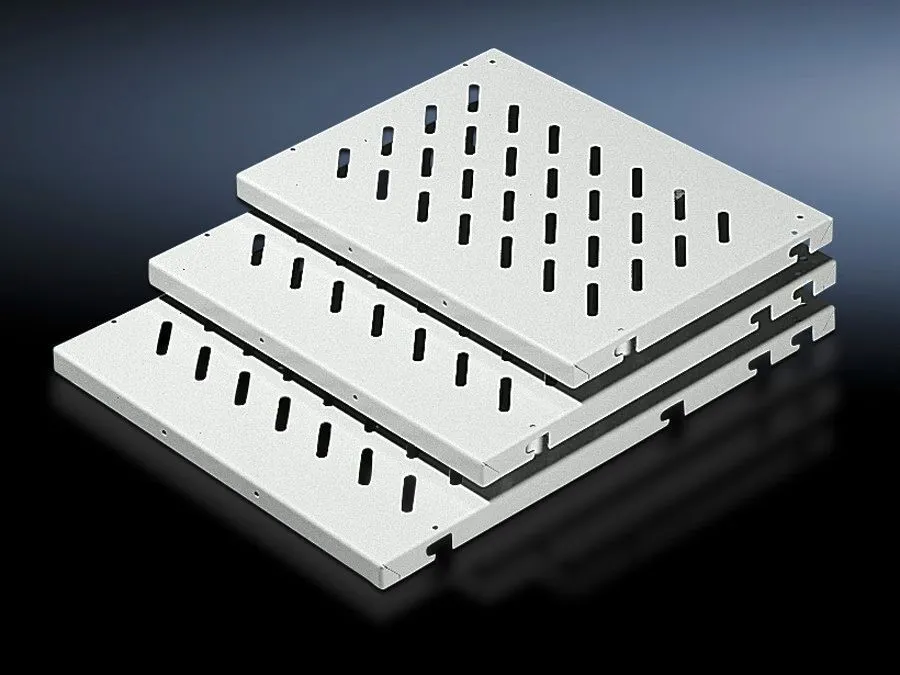

Rittal 7466035 DK Component Shelf - 100 kg load
Part Number: 7466035
Manufacturer
Rittal
Part number
7466035
Alt Part Number
DK 7466.035
Quick Summary
Rittal 7466035 DK Component Shelf is a frame-attachment shelf for enclosures without 19-inch mounting. Engineers often struggle to add stable shelves when a 482.6 mm opening isn’t available, leading to improvisation and rework. The DK7466.035 aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, and its cradle-to-gate PCF is 29.2 kg CO2 eq (Cat B), supporting sustainability targets. With a 471×45×600 mm footprint and a 100 kg area load, plus a 25 mm pitch for mounting rails, it delivers secure, scalable frame attachment in VX, VX IT, and TS IT enclosures. This combination reduces install time and maintenance costs while providing a standard, color-accurate solution in RAL 7035.
Product Information
Extended Description
7466035 Rittal: DK Component shelf, WHD: 471x45x600 mm, 100 kg, For frame attachment, For W: 600 mm, RAL 7035
Article number
DK 7466.035
Design
Slotted
Product description
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation.
Benefits
Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth.
Applications
For installation in enclosures without 482.6 mm (19") accommodation
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Component shelf, slotted | 2 mounting rails
Installation options
Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange
Load capacity
100 kg area load
Assembly instruction
Additionally, two punched sections with mounting flanges are required for the inner mounting level
Note
Max. depth of component shelves = Enclosure depth - 100 mm.
Dimensions
Width: 471 mm | Height: 45 mm | Depth: 600 mm
To fit
Enclosure type: VX | VX IT | TS IT | Width: 600 mm
Packs of
1 pc(s).
Weight/pack
7.672 kg
PCF per pack (cradle-to-gate)
29.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177165991
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 471x45x600 mm, 100 kg, For frame attachment, For W: 600 mm, RAL 7035
Feature: Slotted design with a 25 mm pitch mounting pattern. Business Impact: Enables precise rail placement and flexible reconfiguration, reducing installation errors and downtime. Application: Ideal for enclosures without 19-inch bays, such as VX, VX IT, and TS IT families. Feature: Sheet steel, spray-finished, color RAL 7035. Business Impact: Delivers durable, visually consistent mounting surfaces with reliable corrosion resistance for industrial environments. Application: IT and automation cabinets exposed to demanding conditions. Feature: Load capacity of 100 kg area load; static installation option of 50 kg with bolts on punched sections. Business Impact: Supports heavier components while allowing safe, code-compliant mounting methods; reduces the need for aftermarket supports. Application: Frame attachment inside enclosure depths. Feature: Dimensional fit 471×45×600 mm and 600 mm width; compatible enclosure types VX, VX IT, TS IT. Business Impact: Ensures plug-and-play compatibility with 600 mm wide enclosures, minimizing custom fabrication. Application: New installations and retrofits in standard VX family cabinets. Feature: Supplied as a single component shelf with two mounting rails; installation notes require two punched sections with mounting flanges for inner mounting level. Business Impact: Simplifies procurement and installation, shortens assembly time, and reduces field error rates. Application: Static mounting scenarios in controlled environments. Sustainability Insight: PCF 29.2 kg CO2 eq (Cat B); weight per pack 7.672 kg; packaging efficient for single-piece shipments. Application: Aligns with green procurement goals and lifecycle considerations.
Get a Quick Quote for a Rittal 7466035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7466035?
Enquire Now
FAQs
The shelf is designed for frame attachment inside enclosures lacking 19" accommodation. Install it static with fixing bolts on punched sections, using the included two mounting rails. For inner mounting level, two punched sections with mounting flanges are required. It fits 600 mm wide VX, VX IT, and TS IT enclosures and ships as a single component with clear mounting guidance.
The DK 7466.035 provides a 100 kg area load capacity, allowing even distribution across the shelf. When installing statically without mounting flanges, the recommended maximum is 50 kg per the specified installation option. For heavier or dynamic loads, distribute weight across the shelf area and follow the enclosure manufacturer’s guidelines to maintain axial stability.
Yes. The component shelf is specified for 600 mm width and is intended for VX, VX IT, and TS IT enclosures. Its dimensions (471 mm wide, 45 mm high, 600 mm deep) and 25 mm pitch mounting rails support precise alignment within 600 mm bays, enabling reliable frame attachment in common industrial cabinets.
The DK 7466.035 shelf is classified under ETIM 9 EC002620 and ECLASS 8.0 27189261, aligning with common industry data standards. It carries the EAN 4028177165991 and customs tariff 94039910. While a CE mark isn’t listed in the data, the product adheres to Rittal’s internal manufacturing and environmental documentation, including a PCF of 29.2 kg CO2 eq (Cat B).
The shelf weighs 7.672 kg per pack and has a cradle-to-gate PCF of 29.2 kg CO2 eq (Cat B). Its modular, standard dimensions reduce waste from custom fabrication and simplify maintenance. By enabling efficient, repeatable mounting in multiple enclosure families, it lowers installation time, spare parts variance, and long-term operating costs.
