Rittal DK 7466.735 Component Shelf - 100 kg Load Capacity
Part Number: 7470535
Quick Summary
The Rittal DK 7466.735 Component Shelf is a slotted mounting aid for frame attachment inside enclosures without 19-inch accommodation. When space is tight or internal spaces don’t match standard frames, it provides flexible mounting and precise alignment. There is no explicit SIL, CE, or IP rating listed in the provided data, so verify certification status with the manufacturer. Designed for VX, VX IT, and TS IT enclosures, its 471x45x700 mm footprint and 100 kg load capacity help engineering teams meet performance and reliability goals. With a spray-finished sheet steel build in RAL 7035, it integrates with other enclosure components while streamlining procurement and installation. It simplifies retrofits and future upgrades by enabling 25 mm pitch mounting on punched sections.
Product Information
Extended Description

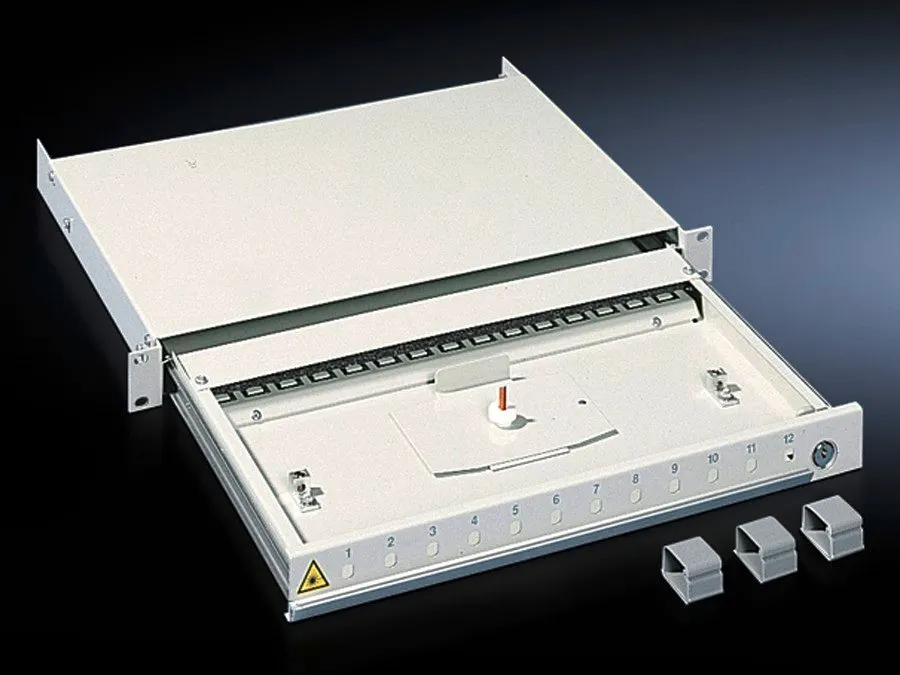

7470535 Rittal: DK Fibre-optic splicing box
Article number
DK 7470.535
Product description
The 482.6 mm (19") splicing box is designed to accommodate splicing cassettes and can be installed in any network distributor with 482.6 mm (19") accommodation and used as a fibre-optic termination or distributor. The rear section of the splicing box is completely open for cable entry, a rubber cable clamp strip provides protection against dust. The fibre-optic cables can be secured with cable ties or cable clamps, two strain relief clips and cable routing clips for the fibre stock provide a solution to suit any fibre-optic wiring system.
Benefits
The telescopic pull-out provides optimum access to the splicing cassettes and cable clamp
Material
Sheet steel
Colour
RAL 7035
Supply includes
Splicing box | Cable routing clips | Security lock | Cassette cover | Mounting accessories for patch panel
Number of splicing cassettes max
4
Note
Supplied without patch panels and splicing cassettes
Installation depth
363 mm
Units
2 U
Packs of
1 pc(s).
Weight/pack
6.752 kg
Customs tariff number
94039910
EAN
4028177167902
ETIM 9
EC001130
ECLASS 8.0
19170113
Product description
DK Fibre-optic splicing box
Feature: Slotted design enables mounting bolts or rails on a 25 mm pitch. Business Impact: Flexible, fast-to-adjust mounting reduces assembly time and stock variety. Application: Enclosures without 19-inch accommodation benefit from quick, repeatable layouts. Feature: 100 kg area load capacity. Business Impact: Supports heavy components like controllers and power supplies, lowering the need for additional supports. Application: VX, VX IT, TS IT enclosures requiring robust internal stability. Feature: Dimensional fit 471 x 45 x 700 mm with W 600 mm compatibility. Business Impact: Facilitates precise space planning and predictable panel density, improving overall cabinet efficiency. Application: Standardized planning for modular enclosures. Feature: Sheet steel, spray-finished, RAL 7035. Business Impact: Durable finish provides corrosion resistance in harsh environments and maintains visual consistency. Application: Industrial automation panels with consistent color and finish. Feature: Includes two mounting rails; static installation option with 50 kg capacity. Business Impact: Reduces sourcing steps and accelerates deployment, especially in retrofit projects. Application: Fast-on-site setup within VX/VX IT frames. Feature: Installation notes max shelf depth equals enclosure depth minus 100 mm. Business Impact: Clear constraints minimize fit issues and post-install adjustments. Application: Accurate planning for complex cabinets. Feature: Comprehensive compatibility (VX, VX IT, TS IT); color and finish alignment. Business Impact: Streamlined procurement and reduced change orders across multi-line builds. Application: Enterprise-scale enclosure programs and standardization initiatives.
Get a Quick Quote for a Rittal 7470535
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7470535?
Enquire Now
FAQs
The DK 7466.735 is designed for frame attachment in enclosures lacking 19" accommodation and fits VX, VX IT, and TS IT types with a 600 mm width. It ships as a component shelf with two mounting rails and supports static installation. Use the included rails to align mounting points on a 25 mm pitch for fast, repeatable setups.
This component shelf supports up to 100 kg area load, enabling stable mounting of controllers, power supplies, and other equipment. The 25 mm pitch rail mounting allows precise alignment and modular upgrades without reworking internal frames, reducing commissioning time and improving reliability in dense cabinet layouts.
Yes. The DK 7466.735 is specifically intended for installation in enclosures that lack 482.6 mm (19") accommodation, providing a robust solution for frame attachment inside VX, VX IT, and TS IT cabinets with a 600 mm width.
The provided data does not list explicit SIL, CE, or IP certifications. It references ETIM EC002620 and ECLASS 27189261, and notes a RAL 7035 finish. For confirmation of regulatory compliance, consult Rittal documentation or contact the manufacturer.
The shelf reduces part count by including mounting rails and offers a durable, spray-finished steel construction with a 100 kg capacity, minimizing replacement and maintenance needs. Its modular 25 mm pitch mounting supports easy upgrades, reducing downtime and procurement complexity in ongoing automation projects.
