Rittal DK 7478.535 Patch Panel - 2U, E-2000 Fibre
Part Number: 7478535
Quick Summary
DK 7478.535 Patch Panel is a fibre-optic splice solution designed for 2U panels in Rittal enclosures. Engineers often struggle with cramped mounting spaces and uneven port density when deploying E-2000 couplings; this panel provides 24 locations per unit with clear cutouts for single or duplex fibre endpoints. Although the data set does not list CE or IP ratings, it aligns with ETIM EC001130 and ECLASS 19170113 standards and uses sheet steel in RAL 7035 for reliable service. The design supports faster installation, easier cable management, and scalable growth, delivering tangible cost savings and improved reliability in industrial automation environments. Packs are lightweight at 0.553 kg per panel and PCF is 2.1 kg CO2 eq, supporting sustainability goals.
Product Information
Extended Description
7478535 Rittal: DK Patch panel
Article number
DK 7478.535
Product description

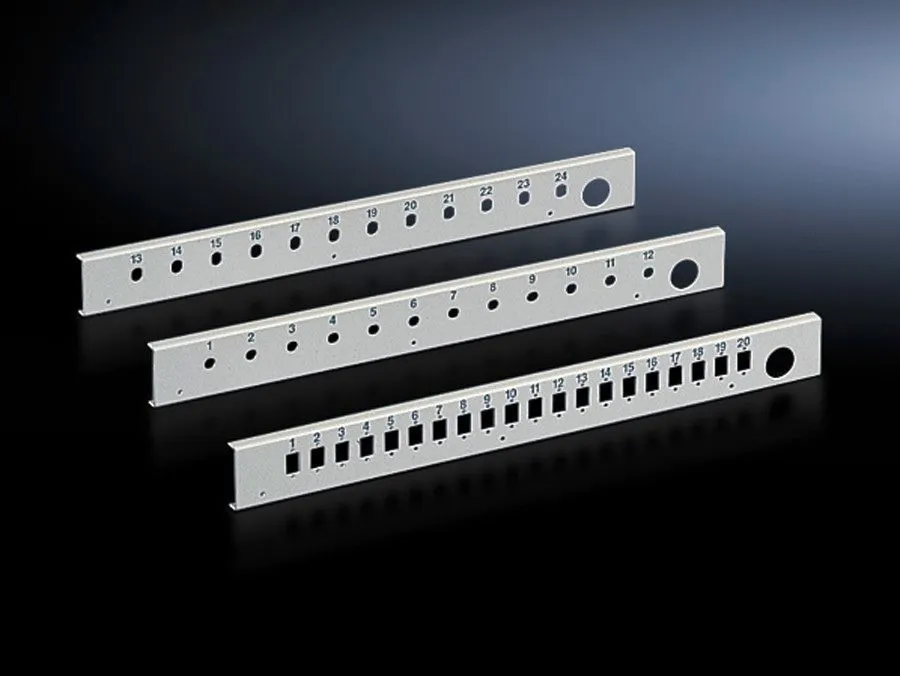

For splicing boxes, there is a choice of multiple panels with corresponding cut-outs for the installation of single or duplex fibre-optic couplings.
Material
Sheet steel
Colour
RAL 7035
Number of locations
24
for fibre-optic coupling
E-2000
Note on Model No.
For E-2000 duplex only half of the locations are available.
Units
2 U
Packs of
1 pc(s).
Weight/pack
0.553 kg
PCF per pack (cradle-to-gate)
2.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177167988
ETIM 9
EC001130
ECLASS 8.0
19170113
Product description
DK Patch panel
Feature: 2 U patch panel with 24 locations for E-2000 fibre-optic couplings. Business Impact: Maximizes port density within a compact footprint, reducing enclosure real estate and simplifying cable routing. Application: Ideal for splicing boxes in manufacturing cells and control cabinets where space is at a premium. Feature: Multiple panel variants with cut-outs for single or duplex couplings. Business Impact: Flexible installation to accommodate various fibre configurations without rework. Application: Streamlines deployment in Rittal enclosures and modular systems. Feature: Sheet steel construction in RAL 7035. Business Impact: Durable, corrosion-resistant finish that maintains appearance and longevity in harsh environments. Application: Suitable for high-traffic industrial environments where aesthetics and protection matter. Feature: Weight per pack 0.553 kg and PCF 2.1 kg CO2 eq (Cat B). Business Impact: Lower transport emissions and easier handling, aligning with sustainability targets. Application: Supports green logistics and lifecycle assessment efforts in device fleets. Feature: Packaging and standards (1 pc pack, EAN 4028177167988, ETIM EC001130, ECLASS 19170113). Business Impact: Simplifies procurement, compatibility checks, and data exchange for ERP systems. Application: Facilitates purchasing and integration into procurement workflows. Feature: Note on Model No. functionality for E-2000 duplex (half locations). Business Impact: Encourages accurate planning and prevents over-commitment of ports. Application: Essential for project scoping and installation planning in mixed duplex setups.
Get a Quick Quote for a Rittal 7478535
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7478535?
Enquire Now
FAQs
The patch panel is designed for 2U installation within Rittal enclosures and provides 24 fibre locations for E-2000 couplings. If using E-2000 duplex, note that only half of the locations are available, so plan port usage accordingly to avoid conflicts and ensure proper spacing for connectors.
This panel supports up to 24 locations for E-2000 fibre-optic couplings, with cut-outs suitable for single or duplex configurations. When selecting duplex couplings, remember that half the locations may be active per the product's model configuration, so configure installations to match the duplex constraint.
The supplied data does not specify CE, IP, or SIL certifications. It references ETIM EC001130 and ECLASS 19170113 for classification. For regulatory certifications, please verify with the manufacturer or distributor to confirm current compliance and any region-specific requirements.
The DK 7478.535 consolidates 24 fibre locations in a compact 2U form factor, enabling higher port density with fewer mounting components. Its sheet-steel body and standardized color (RAL 7035) improve durability and appearance, while the lightweight 0.553 kg per pack and low cradle-to-gate PCF (2.1 kg CO2 eq) support easier logistics and lower lifecycle impact.
Each pack weighs 0.553 kg, with a cradle-to-gate PCF of 2.1 kg CO2 eq (Category B). The packaging and material choice (sheet steel, 2U format) contribute to predictable logistics and a lower overall environmental footprint. The product is sold as 1 piece per pack, with EAN 4028177167988 for streamlined procurement.
