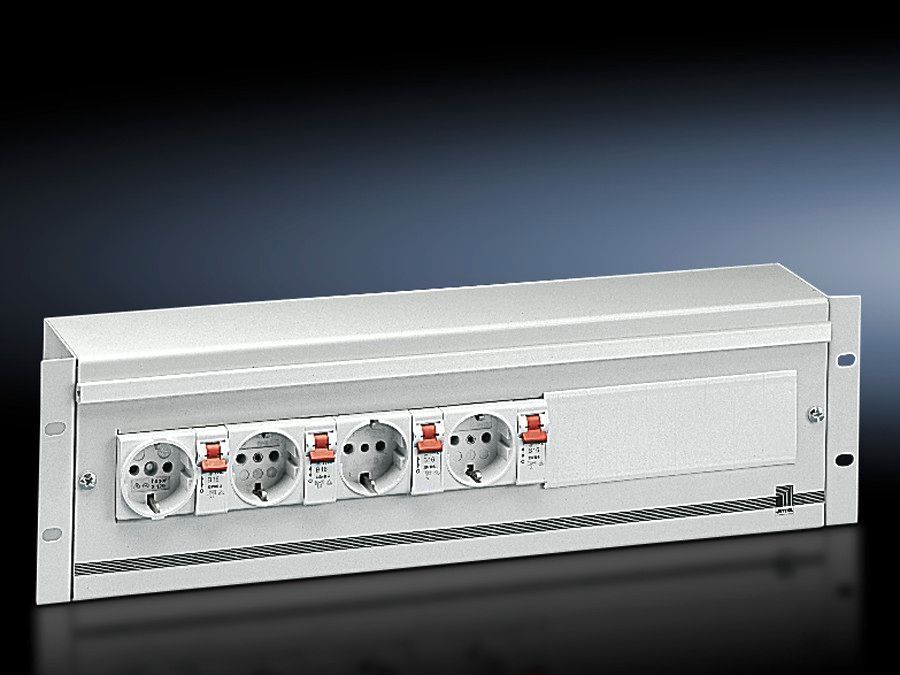

Rittal 7480035 Energy-Box - 22 Pitch Units DIN Rail
Part Number: 7480035
Manufacturer
Rittal
Part number
7480035
Category
Alt Part Number
DK 7480.035
Quick Summary
Rittal 7480035 Energy-Box is a depth-variable top-hat rail enclosure for DIN-rail mounted equipment in control panels. When space is tight, engineers struggle to fit a mix of breakers, sockets, and cables while maintaining reliable rear-entry routing. UL94-V0 rated hood provides flame resistance, and the product is cataloged with ETIM EC002620 and ECLASS 27189261 to support compliant procurement. This energy-box solution improves panel density, simplifies installation, and enhances cable management, delivering faster deployment and lower total-cost-of-ownership in industrial control applications.
Product Information
Extended Description
7480035 Rittal: DK Energy-Box, WHD: 482,6 (19")x132,5x155 mm, max. 22 pitch units
Article number
DK 7480.035
Product description
Depth-variable top hat rail for installed equipment to DIN 43 880 in sizes 1 – 3, e.g. to accommodate flush-type socket outlets, circuit-breakers, etc., with cable clamping at the rear and one N and one PE rail each on an insulated base/plinth.
Colour
RAL 7035
Supply includes
Energy-Box with depth-variable top hat rail for installed equipment to DIN 43880, sizes 1 – 3, with brush strip for cable entry at the rear | Plastic hood including extension cover (UL94-V0) | 44 connection clamps, 4 mm² | 2 connection clamps, 16 mm² | 2 blanking covers | 12 clips for strain relief of the connection cables | Identification strips, self-adhesive
Max. pitch units @ 18 mm
22
Note
Individual population with circuit-breakers at the factory available on request.
Dimensions
Width: 482.6 mm | Height: 132.5 mm | Depth: 155 mm
Units
3 U
Packs of
1 pc(s).
Weight/pack
2.554 kg
Customs tariff number
94032080
EAN
4028177166004
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Energy-Box, WHD: 482,6 (19")x132,5x155 mm, max. 22 pitch units
Depth-variable top-hat rail enables 1–3 sizes and supports up to 22 pitch units, maximizing device density in a compact 3U footprint. Business impact: higher packing density reduces cabinet width, lowers material costs, and accelerates wiring schedules in factory automation setups. Application: ideal for control panels housing circuit-breakers and flush-type outlets with rear-entry cables. The rear brush strip entry and integrated N and PE rails simplify cable management, reduce potential faults, and improve serviceability during maintenance. Energy-Box ships with 44 clamps (4 mm²) and 2 clamps (16 mm²), plus blanking covers and strain-relief clips, delivering a complete installation kit that minimizes procurement complexity. Color and materials alignment (RAL 7035; UL94-V0 hood) improves safety, aesthetics, and regulatory confidence. Factory-configured population options enable project-specific configurations with predictable lead times, reducing on-site customization and installation risk.
Get a Quick Quote for a Rittal 7480035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7480035?
Enquire Now
FAQs
The Energy-Box provides a 3U high enclosure that fits DIN rail equipment with a width of 482.6 mm, height 132.5 mm and depth 155 mm, supporting up to 22 pitch units. This compact footprint enables dense packing of breakers and sockets while maintaining compliant cable routing.
The unit includes a rear brush strip for cable entry and integrated clamps for multiple conductor sizes (4 mm² and 16 mm²). A set of 12 strain-relief clips and blanking covers help organize routes, reduce strain on connections, and simplify maintenance access in panel builds.
Yes. The DK Energy-Box is designed to accommodate flush-type outlets and circuit-breakers within its 3U top-hat rail format, with space for up to 22 pitch units and rear-entry cabling to keep the front panel clean and accessible.
The enclosure uses UL94-V0 rated hood material for safety, and is cataloged under ETIM EC002620 and ECLASS 27189261 to support standardized procurement workflows; EAN 4028177166004 helps with global traceability.
Factory-configured population with circuit-breakers is available on request, enabling faster deployment for project-specific configurations. This reduces on-site assembly time and helps maintain consistent performance across panel builds.
