Rittal DK 7480.300 Energy-Box - Pull-out 3U DIN 43 880
Part Number: 7480300
Manufacturer
Rittal
Part number
7480300
Category
Alt Part Number
DK 7480.300
Quick Summary
Rittal DK Energy-Box DK 7480.300 is a pull-out enclosure for DC and AC components in 19-inch switchgear. Access to the wiring space in fixed-front designs is a common bottleneck, often slowing maintenance and upgrades. It aligns with DIN 43 880 for snap-in mounting and maps to ETIM EC002006 and ECLASS 27189268, supporting consistent procurement data. With a 3U enclosure height, 482.6 mm width, and 220 mm extension, it accommodates up to 22 HP of installed equipment and provides rear cable clamping plus a plastic cover and extension cover. This design delivers faster assembly, safer wiring, and scalable power distribution for panel builders and OEMs.
Product Information
Extended Description

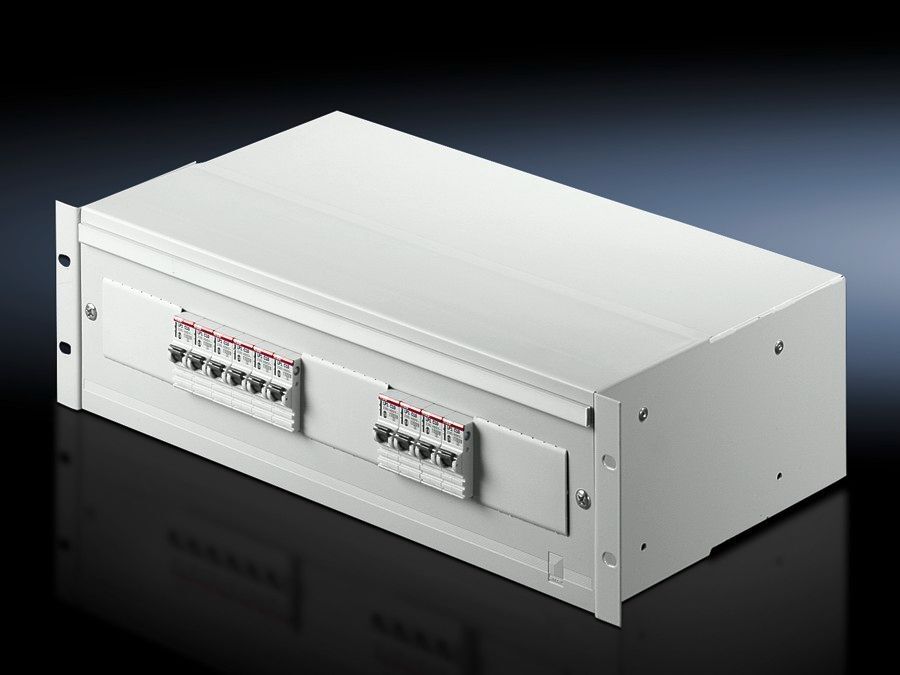

7480300 Rittal: DK Energy-Box, 482.6 mm (19"), Pull-out
Article number
DK 7480.300
Product description
Depth-variable top hat rail for snap-in attachment of installed equipment to DIN 43 880 in sizes 1 – 3 (e.g. to accommodate flush-type socket outlets, circuit-breakers, etc. or entire installed assemblies). Cable clamping at the rear. Two power distribution rails with connection clamps on an insulated base/plinth. Plastic cover including extension cover. Maximum capacity = 22 HP (22 x 18 mm = 396 mm). Enclosure height: 3 U. Enclosure depth: 223 mm. Maximum extension: 220 mm. Connection clamps: 4 clamps 35 mm², 18 clamps 16 mm² (per rail).
Colour
RAL 7035
Supply includes
Energy-Box with plastic blanking covers. | Connection clamp | 18 connection clamps, 16 mm² | 4 connection clamps, 35 mm² | Strain relief | Identification strips | Brush strip
Max. pitch units @ 18 mm
22
Dimensions
Width: 482.6 mm | Depth: 220 mm
Units
3 U
Packs of
1 pc(s).
Weight/pack
6.275 kg
Customs tariff number
94032080
EAN
4028177247529
ETIM 9
EC002006
ECLASS 8.0
27189268
Product description
DK Energy-Box, 482.6 mm (19"), Pull-out
Feature: Pull-out front for above- and below-access to wiring space. Business impact: reduces maintenance time and minimizes downtime by enabling intervention without full panel disassembly. Application: ideal for 19" control panels and compact switchgear where service access is critical. Feature: Two power distribution rails with clamps on an insulated base. Business impact: enables robust, organized power distribution with high conductor compatibility. Application: supports flush sockets, circuit-breakers, and complete installed assemblies in demanding industrial environments.Feature: Cable clamping at the rear and integrated supports. Business impact: improves cable management, reduces front-panel clutter, and enhances heat/density handling. Application: essential in high-density automation cabinets where wiring clearance matters.Feature: Supplied components include blanking covers, connection clamps (18 × 16 mm² and 4 × 35 mm²), strain relief, identification strips, and brush strip. Business impact: accelerates installation while maintaining clear identification and reliable strain relief for long-term reliability. Application: simplifies order handling and on-site commissioning.Feature: Dimensional and weight details provide predictable fit and handling. Business impact: ensures compatibility with existing 19-inch racks and reduces site adaptation costs. Application: panel builders benefit from precise width, depth, and height (482.6 mm, 220 mm, 3 U) for cabinet design and procurement planning.
