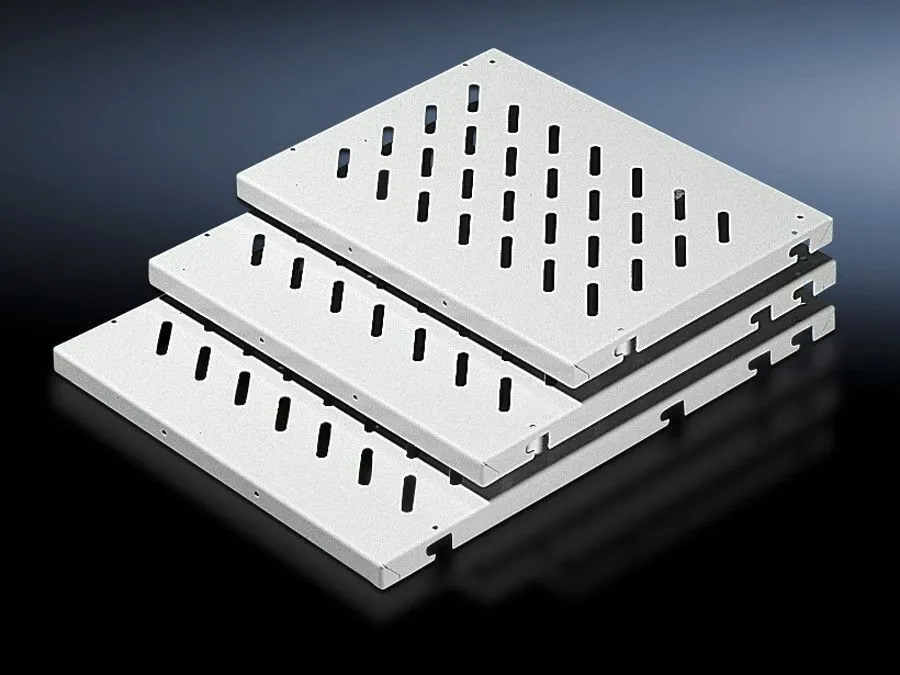

Rittal DK 7486.035 Component shelf - 100 kg load capacity
Part Number: 7486035
Manufacturer
Rittal
Part number
7486035
Alt Part Number
DK 7486.035
Quick Summary
Rittal DK 7486.035 Component shelf is a slotted mounting shelf for frame attachment in enclosures without 19" accommodation. This solution addresses the common challenge of retrofitting mounting rails in compact VX, VX IT, and TS IT enclosures, speeding up installations. Note: CE, SIL, or IP certifications are not listed in the provided data; verify compliance in the official datasheet. By combining a 671x45x600 mm shelf with 800 mm width options and a 100 kg load capacity, it delivers scalable, standards-aligned mounting for industrial control gear and supports standardized hardware across cabinets, reducing complexity and lead times.
Product Information
Extended Description
7486035 Rittal: DK Component shelf, WHD: 671x45x600 mm, 100 kg, For frame attachment, For W: 800 mm, RAL 7035
Article number
DK 7486.035
Design
Slotted
Product description
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation.
Benefits
Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth.
Applications
For installation in enclosures without 482.6 mm (19") accommodation
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Component shelf, slotted | 2 mounting rails
Installation options
Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange
Load capacity
100 kg area load
Assembly instruction
Additionally, two punched sections with mounting flanges are required for the inner mounting level
Note
Max. depth of component shelves = Enclosure depth - 100 mm.
Dimensions
Width: 671 mm | Height: 45 mm | Depth: 600 mm
To fit
Enclosure type: VX | VX IT | TS IT | Width: 800 mm
Packs of
1 pc(s).
Weight/pack
9.933 kg
PCF per pack (cradle-to-gate)
37.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177166035
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 671x45x600 mm, 100 kg, For frame attachment, For W: 800 mm, RAL 7035
Feature: Slotted mounting rails on a 25 mm pitch pattern enable adjustable hardware placement within enclosure depth, delivering faster commissioning and reduced rework. Business impact: Flexibility to reposition components as layouts evolve, improving change management in automated lines. Application: Ideal for VX, VX IT, and TS IT enclosures that require frame attachment without 19" accommodation. Feature: Two mounting rails supplied with the shelf simplify bolt-on installation on punched sections, decreasing install time and ensuring robust support. Business impact: Lower field labor costs and improved anti-vibration performance for critical electronics. Application: Static installation with fixing bolts on punched sections without mounting flanges. Feature: 100 kg area load capacity provides solid support for mixed equipment, enabling single-shelf configurations to handle multiple modules. Business impact: Space optimization and reduced need for additional support brackets. Application: Enclosures with 671x45x600 WHD and 800 mm width option. Feature: Materials and finish deliver durability and consistency across fleets. Business impact: Sheet steel, spray-finished surface in RAL 7035 supports serviceability and visual standardization. Application: High-use control panels in manufacturing environments. Feature: Packaging and sustainability data guide lifecycle planning. Business impact: PCF 37.8 kg CO2 eq (Cat B) informs environmental reporting; weight per pack 9.933 kg aids logistics planning. Application: Global deployment with standardized components.
Get a Quick Quote for a Rittal 7486035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7486035?
Enquire Now
FAQs
The shelf is designed for static installation with fixing bolts on punched sections and includes two mounting rails. For inner mounting levels, two punched sections with mounting flanges are required. Ensure enclosure depth accommodates the shelf (671x45x600 mm WHD) and select the 800 mm width variant when required.
The shelf supports up to 100 kg of area load. The rails are positioned on a 25 mm pitch within the enclosure depth, allowing precise placement of mounting hardware and easy future adjustments without redrilling. This provides reliable support for mixed equipment in compact panels.
Yes. The DK 7486.035 is intended for W = 800 mm enclosures and VX, VX IT, TS IT families. The 671 mm shelf width with 600 mm depth fits these models, enabling efficient use of space while maintaining frame attachment capabilities.
Certification data in the provided dataset does not specify CE, IP, or SIL. It lists ETIM EC002620 and ECLASS 27189261 classifications. Always verify compliance with the official datasheet and local regulatory requirements for your application.
With a 100 kg load capacity and slotted rails, you can standardize panel layouts, reduce installation time, and minimize rework. The included PCF data (37.8 kg CO2 eq, Cat B) supports environmental reporting. Regular upkeep focuses on checking mounting rails and fixings after install to maintain performance.
