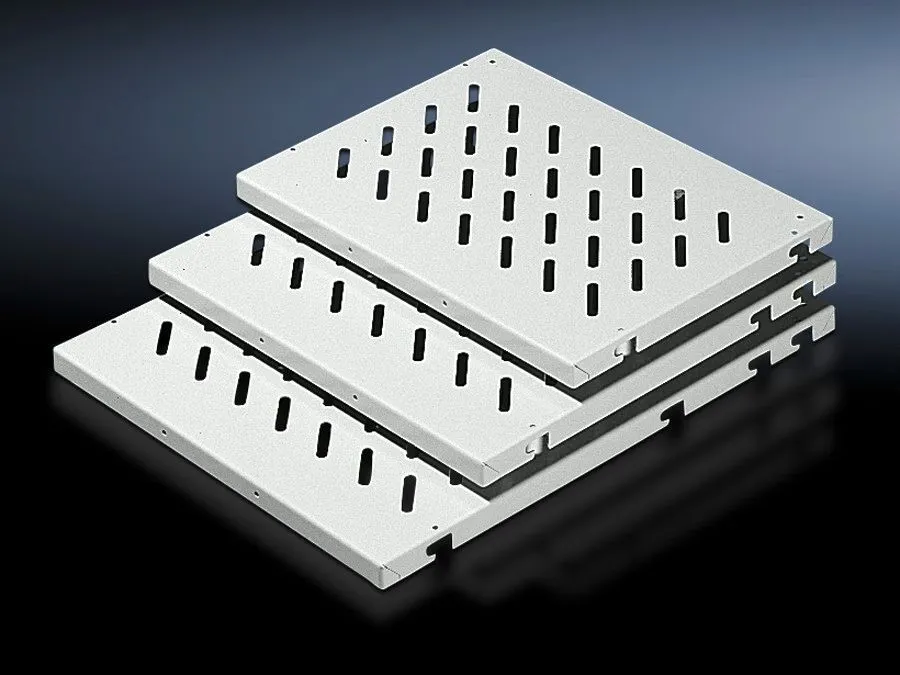

Rittal DK 7486.735 Component Shelf - 100 kg Area Load
Part Number: 7486735
Manufacturer
Rittal
Part number
7486735
Alt Part Number
DK 7486.735
Quick Summary
Rittal DK 7486.735 Component Shelf is a frame-attachment solution for enclosures without 19-inch mounting. It addresses the common challenge of securing gear inside VX, VX IT, or TS IT cabinets when standard rails aren’t present. Note: explicit CE, IP, or SIL certifications aren’t listed in the data; verify with Rittal for regulatory compliance. This 671x45x700 mm shelf, finished in RAL 7035, provides a 100 kg area load and is designed for 800 mm-wide enclosures, pairing with two mounting rails to simplify installation and future rework.
Product Information
Extended Description
7486735 Rittal: DK Component shelf, WHD: 671x45x700 mm, 100 kg, For frame attachment, For W: 800 mm, RAL 7035
Article number
DK 7486.735
Design
Slotted
Product description
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation.
Benefits
Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth.
Applications
For installation in enclosures without 482.6 mm (19") accommodation
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Component shelf, slotted | 2 mounting rails
Installation options
Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange
Load capacity
100 kg area load
Assembly instruction
Additionally, two punched sections with mounting flanges are required for the inner mounting level
Note
Max. depth of component shelves = Enclosure depth - 100 mm.
Dimensions
Width: 671 mm | Height: 45 mm | Depth: 700 mm
To fit
Enclosure type: VX | VX IT | TS IT | Width: 800 mm
Packs of
1 pc(s).
Weight/pack
11.197 kg
PCF per pack (cradle-to-gate)
42.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177221406
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 671x45x700 mm, 100 kg, For frame attachment, For W: 800 mm, RAL 7035
Slotted design enables mounting bolts or rails on a 25 mm pitch pattern inside enclosure depth, delivering flexible mounting options and faster technician setup. This translates to reduced commissioning time and fewer on-site adjustments, especially in VX/VX IT and TS IT lineups where space is constrained. The sheet-steel construction with a spray finish in RAL 7035 delivers durable, corrosion-resistant performance suitable for harsh industrial environments, lowering repainting and maintenance costs over the asset life. The component shelf supports a 100 kg area load, with static installation rated at 50 kg when using fixing bolts on punched sections without mounting flanges, providing a reliable baseline for mid-range electrical and control assemblies. Supplied as a complete package (shelf plus two mounting rails) simplifies procurement and accelerates project timelines. Important installation notes include max shelf depth being enclosure depth minus 100 mm and the need for two punched sections with mounting flanges for the inner mounting level, ensuring reliable, modular expansion in VX/VX IT and TS IT enclosures.
Get a Quick Quote for a Rittal 7486735
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7486735?
Enquire Now
FAQs
Installation relies on the frame-attachment method described by the product. Use the two mounting rails provided and align with a 25 mm pitch pattern inside the enclosure depth. The static installation option allows 50 kg with fixing bolts on punched sections without mounting flanges. Ensure enclosure width is 800 mm and confirm the depth budget (shelf depth is enclosure depth minus 100 mm) during planning.
The shelf supports 100 kg as an area load, which accommodates heavier modules across the shelf surface. For alternative mounting, static installation is rated at 50 kg when using fixing bolts on punched sections without mounting flanges. The package includes the shelf and two mounting rails to facilitate a quick, secure fit inside compatible enclosures.
Yes. The DK 7486.735 shelf is designed for 800 mm-wide enclosures and is suitable for VX, VX IT, and TS IT families. Ensure the enclosure depth supports the 671x45x700 mm WHD and remember that the maximum shelf depth is enclosure depth minus 100 mm. The included rails support a reliable, scalable mounting arrangement.
The provided data does not list explicit CE, IP, or SIL certifications. To ensure regulatory compliance for your facility or industry, verify with Rittal or your distributor whether CE conformity or other certifications are applicable to this specific component shelf and its installation configuration.
By enabling a modular, frame-attachment mounting in enclosures lacking 19-inch space, the shelf reduces installation time and future reconfiguration costs. The 671x45x700 mm size and 100 kg load support remove the need for custom brackets, lowering part variety. The RAL 7035 finish and sheet-steel construction offer durable service life with minimal maintenance, translating to lower lifecycle costs.
