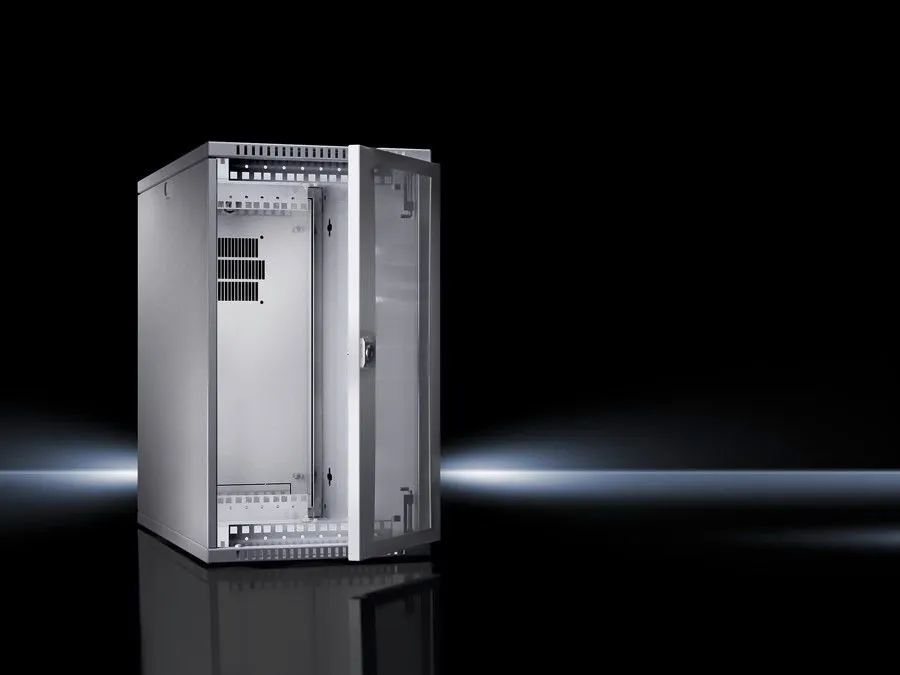

Rittal 7501000 Enclosure - 5 U, 482.6 mm (19")
Part Number: 7501000
Manufacturer
Rittal
Part number
7501000
Alt Part Number
DK 7501.000
Quick Summary
Rittal 7501000 Enclosure is a compact 19" housing for small networks. Many engineers struggle with limited mounting options and heat buildup when space is tight. The data references typical load guidelines but does not explicitly list CE, IP, or SIL certifications; verify market compliance where required. This enclosure delivers space-saving flexibility for office or light-industrial environments, making cable management and service access straightforward. With passive ventilation, a glazed safety-glass door, and a powder-coated finish in RAL 7035, it offers robust protection without sacrificing aesthetics. Designed for wall-mounted, under-desk, or desktop deployments, it helps teams deploy reliable network or control equipment efficiently.
Product Information
Extended Description
7501000 Rittal: DK VerticalBox, compact 19" housing for small networks, with vent slots for passive ventilation, 5 U, WHD: 300x540x600 mm
Article number
DK 7501.000
Product description
Compact 482.6 mm (19") enclosure for small networks.
Benefits
May be used as wall-mounted, under-desk or desktop enclosure
Material
Sheet steel | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Enclosure with glazed door | Side panels (1 x fixed, 1 x slot-in) with vent slots | Knockouts for cable entry via roof or base | Slot-in rear panel with knockouts for cable entry and fan accommodation | 482.6 mm (19") mounting level, 5 U, horizontal front and rear, depth-variable, distance between levels 434 – 489 mm | Security lock 12321 on the door, side and rear panel | 4 plastic feet, self-adhesive
Units
5 U
Dimensions
Width:Â 300 mm | Height:Â 540 mm | Depth:Â 600 mm
Installation height for components
5 U
Basic material
Sheet steel
Load capacity
250 N
Max. load capacity (static) per enclosure to UL 2416
250 N
Packs of
1 pc(s).
Weight/pack
17.04 kg
PCF per pack (cradle-to-gate)
64.9Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177625426
ETIM 9
EC002500
ECLASS 8.0
27180208
Product description
DK VerticalBox, compact 19" housing for small networks, with vent slots for passive ventilation, 5 U, WHD: 300x540x600 mm
Feature: The DK VerticalBox is a compact 19" enclosure at 5 U, with dimensions 300 x 540 x 600 mm. Business impact: It accommodates common 19" equipment without wasting floor space, enabling flexible deployment. Application: Ideal for small networks in wall-mounted, under-desk, or desktop settings. Feature: Vent slots for passive ventilation. Business impact: Supports natural airflow reducing heat buildup and energy use. Application: Suitable for equipment with modest cooling needs in compact enclosures. Feature: Side panels with vent slots plus fixed and slot-in elements. Business impact: Enhances service access and cable management. Application: Simplifies routine maintenance and future reconfigurations. Feature: Knockouts for roof or base cable entry; rear panel with knockouts and fan accommodation. Business impact: Flexible installation and scalable cooling options. Application: Adapts to diverse cabling layouts and small fans. Feature: Security lock 12321 on doors, side, and rear panel. Business impact: Increases tamper resistance in semi-public spaces. Application: Office corridors, labs, or workshops. Feature: Powder-coated surface in RAL 7035. Business impact: Improves durability and aesthetics for industrial and office environments. Application: Environments demanding consistent appearance and corrosion resistance. Feature: Includes glazed door and vented rear panel; two side panels and four feet. Business impact: Ready-to-install package with comprehensive access and stability. Application: Quick deployment for network equipment and controllers.
Get a Quick Quote for a Rittal 7501000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7501000?
Enquire Now
FAQs
The 7501000 supports the standard 482.6 mm (19 in) mounting level and 5 U height, accommodating typical 19" network gear. It includes 4 feet, rear panel, and slot-in side panels with vent slots, plus knockouts for cable entry via roof or base, enabling straightforward rack integration and easy maintenance.
This enclosure is designed for wall-mount, under-desk, or desktop use. It ships with a glazed door, fixed and slot-in side panels with vent slots, and a rear panel with knockouts for cabling and fan accommodation, plus adjustable spacing between levels (434–489 mm) to fit various 19" components.
Yes. It features vent slots for passive ventilation and a rear panel designed to accommodate a fan, supporting airflow for small-network equipment without requiring active cooling in many environments.
The enclosure uses a security lock labeled 12321 on the door, with additional locking options on side and rear panels. This combines with a sturdy sheet-steel body and powder-coated finish to provide tamper resistance in semi-public settings.
Dimensions are Width 300 mm, Height 540 mm, Depth 600 mm; Weight per pack 17.04 kg; load capacity is 250 N static per enclosure (UL 2416 reference). Plan for cable entries via roof or base and consider venting needs for equipment heat generation.
