Rittal 7507010 Enclosure - 9U with 19-inch mounting angles
Part Number: 7507010
Manufacturer
Rittal
Part number
7507010
Alt Part Number
DK 7507.010
Quick Summary
Rittal 7507010 enclosure is a flat-packed cabinet for flexible wall- or floor-mounted control panel setups. Engineers often struggle with installing robust enclosures quickly while maintaining clean cable entry and secure access on busy shop floors. The data here does not list CE, IP, or SIL ratings; confirm regulatory conformity with your project before procurement. This model ships with 19-inch mounting angles for modular expansion, includes a lockable glazed door and earthing kit, and supports tool-free quick assembly. With a powder-coated sheet steel body in RAL 7035 and a compact 9 U layout, it delivers durable, scalable control housing for industrial automation and machine-building needs.
Product Information
Extended Description

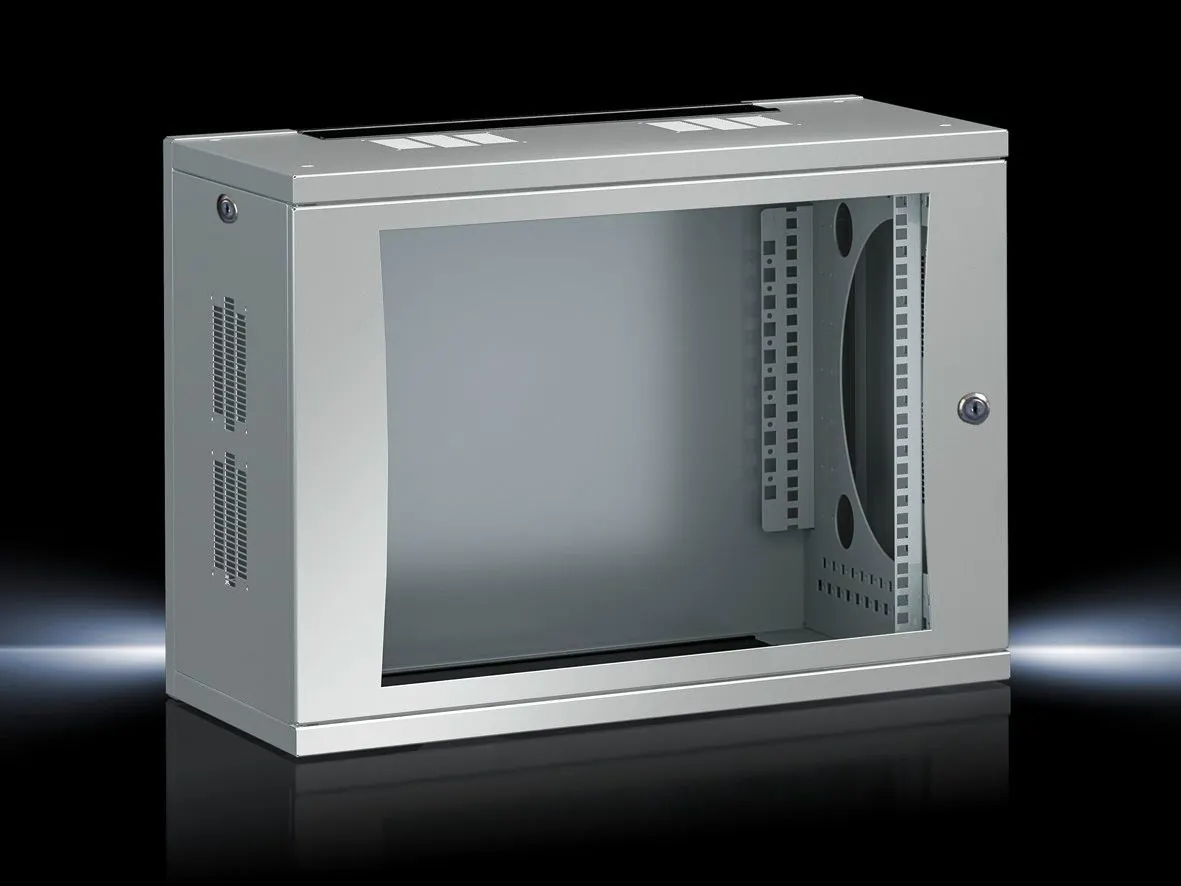

7507010 Rittal: DK FlatBox, WHD: 600x492x400 mm, 9 U, with 482.6 mm (19") mounting angles
Article number
DK 7507.010
Design
with 482.6 mm (19") mounting angles
Product description
For flexible use as a wall-mounted or floor-standing enclosure.
Benefits
Tool-free quick assembly
Material
Sheet steel | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Flat-packed enclosure | 1 wall section | 2 basic supports | 2 roof/base plates, with cut-outs for cable entry via brush strips | 2 side panels, lockable | 1 glazed door, lockable, security lock 3524 E, door hinge point selectable | Connection components for tool-free, fast assembly | Earthing kit for system-compatible earthing of all enclosure parts | 482.6 mm (19") mounting angles
Units
9 U
Dimensions
Width: 600 mm | Height: 492 mm | Depth: 400 mm
Installation height for components
9 U
Load capacity
max. 450 N
Note
Max. installation depth: Depth - 58 mm to rear panel
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
20.878 kg
PCF per pack (cradle-to-gate)
79.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177551404
ETIM 8
EC002500
ETIM 7.0
EC002500
ECLASS 8.0
27180208
Product description
DK FlatBox, WHD: 600x492x400 mm, 9 U, with 482.6 mm (19") mounting angles
Feature: 9U enclosure with 482.6 mm (19") mounting angles. Business Impact: Enables standard control components to be installed quickly and aligned with industry rack standards. Application: Ideal for machine builders and system integrators designing modular control panels. Feature: Sheet steel body with powder-coated finish in RAL 7035. Business Impact: Delivers long-term durability, corrosion resistance, and a consistent appearance in demanding environments. Application: Suitable for factory floors and harsh environments where reliability matters. Feature: 3 mm single-pane safety glass viewing window and lockable glazed door (security lock 3524 E). Business Impact: Provides visibility and protected access, reducing tampering risks while maintaining operator oversight. Application: Essential for SCADA/HMI monitoring access in live lines. Feature: Tool-free, fast assembly with included mounting angles and connection components. Business Impact: Cuts installation time, lowers labor costs, and accelerates commissioning. Application: Valuable for panel builders needing rapid deployment. Feature: Cable-entry efficiency with brush-strip cut-outs and earthing kit. Business Impact: Improves EMC integrity and simplifies cable management; reduces retrofit work. Application: Used in multi-cable installations on production lines. Feature: 9 U height, max load 450 N, flat-pack packaging, and PCF 79.5 kg CO2 eq. Business Impact: Predictable weight and a lower environmental footprint support safer handling and sustainability goals. Application: Logistics planning and green manufacturing initiatives.
Get a Quick Quote for a Rittal 7507010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7507010?
Enquire Now
FAQs
The DK FlatBox 7507010 supports flexible wall-mounted or floor-standing configurations, leveraging 482.6 mm (19-inch) mounting angles for standard equipment alignment. This allows quick reconfiguration as control panels evolve, minimizing downtime during upgrades and expansions.
Included components cover tool-free, fast assembly and secure attachment: wall section, roof/base plates with cable-entry cut-outs, two side panels, a lockable glazed door, an earthing kit, and 19" mounting angles. Brush-strip cut-outs simplify cable routing, improving organization and EMC performance.
Dimensions are Width 600 mm, Height 492 mm, Depth 400 mm; it is a 9 U enclosure. Max load capacity is 450 N, supporting typical panel-mounted equipment without compromising enclosure integrity on demanding lines.
The enclosure uses sheet steel with a powder-coated finish in RAL 7035 and a 3 mm safety glass viewing window with a lockable door (security lock 3524 E). While this enhances security and durability, verify specific environmental ratings (such as IP/CE) with the supplier for your application.
The unit ships in flat-pack form and weighs 20.878 kg per pack, with a cradle-to-gate PCF of 79.5 kg CO2 eq (Category B). This provides a transparent view of production impact, supporting sustainability goals in procurement and lifecycle management.
