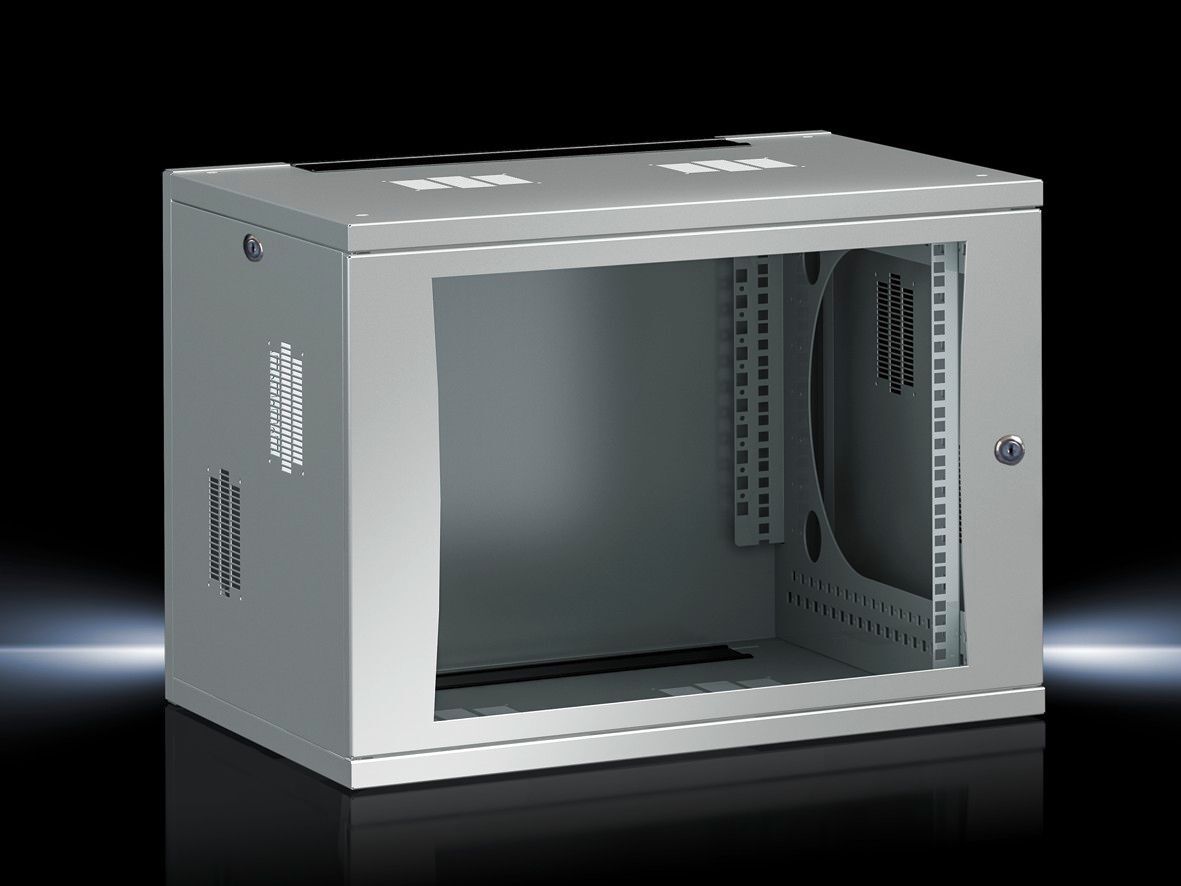

Rittal 7507110 Enclosure - 9U with 482.6 mm mounting angles
Part Number: 7507110
Manufacturer
Rittal
Part number
7507110
Alt Part Number
DK 7507.110
Quick Summary
Rittal 7507110 Enclosure provides flexible, flat-packed protection for electrical control panels in machine rooms and on the shop floor. The wall-mounted or floor-standing design simplifies installation, reduces on-site space requirements, and speeds wiring with tool-free assembly. While the data doesn’t list explicit certifications, the enclosure uses robust powder-coated sheet steel, 19-inch mounting angles, and a lockable glazed door typical of industry-standard enclosures, aligning with common regulatory expectations. This model supports quick deployment, reliable grounding, and durable operation in harsh environments. By combining standard dimensions with a maintenance-friendly layout, it delivers value in project timelines and total cost of ownership for control cabinet builds.
Product Information
Extended Description
7507110 Rittal: DK FlatBox, WHD: 600x492x600 mm, 9 U, with 482.6 mm (19") mounting angles
Article number
DK 7507.110
Design
with 482.6 mm (19") mounting angles
Product description
For flexible use as a wall-mounted or floor-standing enclosure.
Benefits
Tool-free quick assembly
Material
Sheet steel | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Flat-packed enclosure | 1 wall section | 2 basic supports | 2 roof/base plates, with cut-outs for cable entry via brush strips | 2 side panels, lockable | 1 glazed door, lockable, security lock 3524 E, door hinge point selectable | Connection components for tool-free, fast assembly | Earthing kit for system-compatible earthing of all enclosure parts | 482.6 mm (19") mounting angles
Units
9 U
Dimensions
Width:Â 600 mm | Height:Â 492 mm | Depth:Â 600 mm
Installation height for components
9 U
Load capacity
max. 450 N
Note
Max. installation depth: Depth - 58 mm to rear panel
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
27 kg
PCF per pack (cradle-to-gate)
102.9Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177551442
ETIM 9
EC002500
ETIM 8
EC002500
ECLASS 8.0
27180208
Product description
DK FlatBox, WHD: 600x492x600 mm, 9 U, with 482.6 mm (19") mounting angles
Flat-pack design reduces shipping costs and simplifies site delivery, while the included parts enable fast, tool-free assembly on arrival, cutting install time and labour costs. The 9 U height with 482.6 mm (19") mounting angles ensures compatibility with standard industrial switchgear and equipment, minimizing the need for custom brackets and reducing design risk. Powder-coated sheet steel and a 3 mm safety glass viewing window deliver durable, vandal- and weather-resistant protection with clear visibility for status indicators, supporting reliable operation in harsh environments. The enclosure’s lockable glazed door provides secure access control, while the earthing kit and brush-strip cable entry promote safe, orderly wiring and compliant grounding. A load capacity of up to 450 N supports a broad range of control hardware, and the max rear-depth of 58 mm helps prevent interference with rear components. Sustainability data, including PCF 102.9 kg CO2 eq (Cat B), reflects responsible design choices without compromising performance. These features translate to lower lifecycle costs, faster deployments, and predictable maintenance for automation projects.
Get a Quick Quote for a Rittal 7507110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7507110?
Enquire Now
FAQs
Yes. The enclosure uses 482.6 mm (19") mounting angles and a 9 U height, aligning with standard 19-inch equipment. Mounting is designed to be tool-free with supplied supports and base plates, enabling quick, secure integration of control hardware.
The enclosure measures 600 mm wide, 492 mm high, and 600 mm deep, with a 9 U interior rating. It supports up to 450 N of load, suitable for typical control gear and modular cabinets in industrial environments.
The package includes a flat-packed enclosure, 1 wall section, 2 basic supports, 2 roof/base plates with cable-entry cut-outs via brush strips, 2 lockable side panels, a lockable glazed door with security lock, 1 earthing kit, 482.6 mm (19") mounting angles, and connection components for tool-free assembly.
Yes. The design supports flexible use as either a wall-mounted or floor-standing enclosure, offering installation versatility to suit space constraints and wiring layouts in factories and automation rooms.
The tool-free assembly reduces on-site labour, while the lockable door, viewing glass, and earthing kit simplify ongoing maintenance and safety compliance. The durable powder-coated sheet steel plus 3 mm glass minimizes downtime and replacement costs, contributing to lower total cost of ownership over the enclosure’s life cycle.
