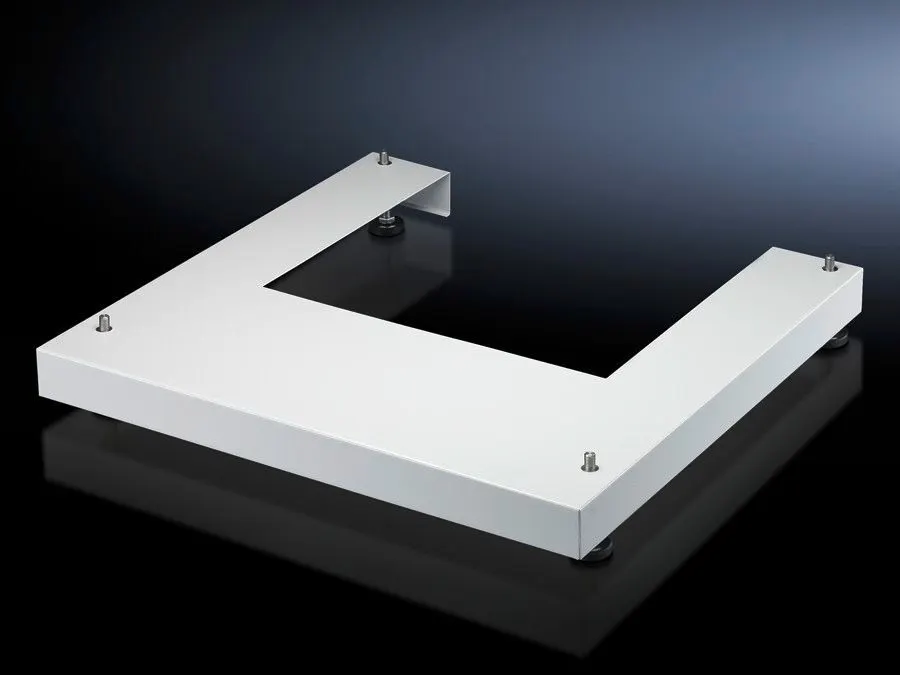

Rittal DK 7507.755 Base/Plinth for FlatBox - RAL 7035
Part Number: 7507755
Quick Summary
Rittal DK 7507.755 base/plinth for FlatBox securely mounts the enclosure base and provides clean cable entry. During retrofit projects, engineers frequently confront misalignment, difficult cable routing, and uneven mounting surfaces that slow field work. CE-marked design practices and the broader industry emphasis on IP-rated protection help mitigate risk in dusty or damp factory environments. The powder-coated sheet steel base in RAL 7035 adds durability, while the included leveling feet and assembly parts speed up installation and ensure long-term stability. With a 700x700 mm footprint and 50 mm height, it integrates seamlessly with FlatBox enclosures and supports reliable mass deployment across multiple cabinets.
Product Information
Extended Description
7507755 Rittal: DK base/plinth for FlatBox, W x D: 700 x 700 mm, RAL 7035
Article number
DK 7507.755
Product description
For attachment purposes, the base/plinth may be mounted on the pre-existing thread in the base area of the FlatBox. There is a rear recess provided for cable entry.
Material
Sheet steel
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
4 levelling feet and assembly parts.
Dimensions
Height: 50 mm
To fit
Enclosure type: FlatBox | Width: 700 mm | Depth: 700 mm
Suitable for depth
700 mm
Packs of
1 pc(s).
Weight/pack
5.4 kg
Customs tariff number
94039910
EAN
4028177583481
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
DK base/plinth for FlatBox, W x D: 700 x 700 mm, RAL 7035
Attachment to pre-existing base threads in the FlatBox base enables quick retrofits without drilling or re-tapping, reducing installation time and field risk while maintaining structural integrity. This translates to faster project completion and lower on-site labor costs in busy production lines. The rear cable recess provides organized, protected wiring paths, which minimizes future maintenance efforts and wiring faults during upgrades or expansions. For upgrades where cleanliness and traceability matter, the sheet steel construction with a powder-coated finish delivers corrosion resistance and consistent appearance across the plant, supporting regulatory audits and standardization. Supplied with four leveling feet and assembly parts, the solution guarantees stable, level mounting on varied floor conditions, decreasing rework and warranty callbacks. The compact 50 mm height and 700x700 mm footprint ensure compatibility with standard FlatBox configurations, enabling scalable deployments across cabinets while keeping internal volumes uncluttered and easy to service.
Get a Quick Quote for a Rittal 7507755
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7507755?
Enquire Now
FAQs
Begin by aligning the DK base/plinth with the FlatBox’s pre-existing mounting threads. Secure with the provided assembly parts and leveling feet, then verify levelness across the cabinet row. The rear cable recess allows clean routing of conductors before closing the enclosure. This approach minimizes drilling, speeds retrofit projects, and ensures stable, repeatable mounting across multiple enclosures.
Key specs include a 700x700 mm footprint, height of 50 mm, material sheet steel with a powder-coated finish in RAL 7035, and weight per pack 5.4 kg. The product ships as a single pack and includes four leveling feet and assembly parts. It is designed to fit FlatBox enclosures with the corresponding base thread pattern.
The DK 7507.755 is built from powder-coated sheet steel, which provides corrosion resistance suitable for many industrial applications. While IP rating specifics depend on the overall enclosure configuration, accessories of this type are typically used with IP-rated FlatBox systems to maintain enclosure integrity in dusty or damp environments. Always verify the final assembly against your targeted IP requirement and environmental conditions.
The base/plinth is designed to attach to the pre-existing thread in the FlatBox base area, enabling quick alignment and secure attachment without additional drilling. This compatibility streamlines retrofits and reduces downtime, while the included leveling feet ensure the cabinet sits flat on varied floor surfaces for reliable long-term operation.
By standardizing on a single 700x700 FlatBox base/plinth, projects gain installation consistency, reduce field wiring complexity, and improve maintenance access with rear cable entry. The powder-coated finish and stable mounting support long-term reliability, enabling faster deployments across multiple cabinets and resulting in lower total cost of ownership over the system lifetime.
