Rittal DK 7541.000 Earth Rail - 200 A Capacity
Part Number: 7541000
Quick Summary
Rittal DK 7541.000 Earth Rail is a vertical grounding rail for star earthing in VX, VX IT, and TS enclosures. This design addresses inconsistent earth connections and installation challenges in tight panel spaces by delivering fully adjustable earth terminals and a robust copper rail. The product aligns with DIN EN 12 163 and DIN EN 13 601, supporting safe, compliant grounding within modular control cabinets. For engineering teams and service technicians, the solution simplifies commissioning and ongoing maintenance, reducing downtime and fault-finding effort. With VX and TS integrations in mind, the rail supports reliable earthing for patch panels and cable clamps, reinforcing overall system performance.
Product Information
Extended Description
7541000 Rittal: DK earth rail, vertical, L: 545 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
Article number
DK 7541.000
Product description
Easily fitted to the 25 mm DIN pitch pattern of distributors or to the 482.6 mm (19") mounting angles. The supplied earth conductors facilitate star earthing of the cable clamp straps in the patch panels. The earth terminals are fully adjustable. Current carrying capacity of rail approx. 200 A.
Supply includes

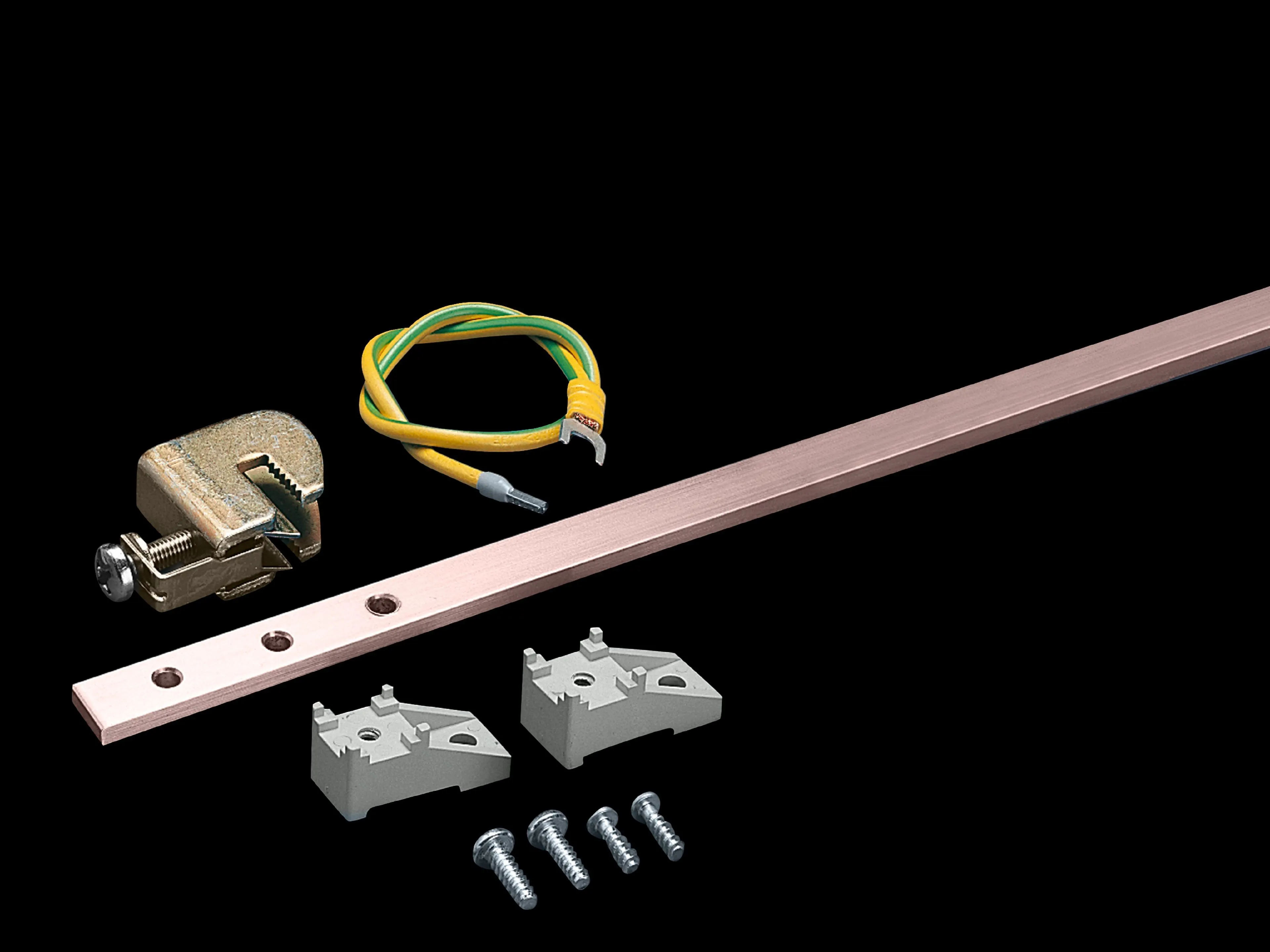

Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm | null | 15 earthing leads 6 mm², L = 500 mm | Assembly parts
Dimensions
Length: 545 mm
To fit
Enclosure type: VX | VX IT | TS | Height: 800 mm
Packs of
1 pc(s).
Weight/pack
1.472 kg
Customs tariff number
74198090
EAN
4028177131798
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
DK earth rail, vertical, L: 545 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
Feature: Vertical earth rail, length 545 mm, with 15x 6 mm² earthing leads and 16 conductor clamps (2.5–16 mm²). Business impact: Delivers a consistent star-earthing path with robust current-carrying capacity, reducing voltage drop and grounding faults. Application: Fits the 25 mm DIN pitch pattern of distributors or the 482.6 mm (19") mounting angles in VX, VX IT, and TS enclosures. Feature: Earth rail manufactured from E-Cu 57 to DIN EN 12 163 and DIN EN 13 601; includes earthing leads 15x 6 mm², length 500 mm, plus assembly parts. Business impact: Ensures high conductivity, corrosion resistance, and durable connections for continuous operation. Application: Suitable for patch panels and distributor assemblies in industrial cabinets. Feature: Fully adjustable earth terminals. Business impact: Simplifies alignment and maintenance during layout changes or upgrades. Application: Enhances adaptability in growing control panels and modular deployments. Feature: Clamps support 2.5–16 mm² conductors. Business impact: Broad compatibility reduces need for adapters and expedites wiring. Application: Direct integration with standard conductor sizes in VX/VX IT/TS enclosures. Feature: Pack integrity and weight. Business impact: Predictable shipping, onsite handling, and installation planning with a one-pack-per-rail configuration. Application: Field deployment in factory floors and workshop installations. Feature: Compatibility with 25 mm DIN pitch and 19" mounting angles. Business impact: Faster retrofit and seamless integration with existing distributors and mounting hardware. Application: Modernizing legacy panels or expanding current grounding schemes in industrial assemblies.
Get a Quick Quote for a Rittal 7541000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7541000?
Enquire Now
FAQs
Install the 545 mm vertical rail along the enclosure frame, connect 15x 6 mm² earth leads to the cable clamps, and align with the 25 mm DIN pitch or 19" mounting angles for VX, VX IT, or TS panels. Use the included assembly parts to secure clamps for a clean grounding path.
The earth rail supports approximately 200 A continuous current, providing a robust grounding path suitable for demanding control panel applications and high-density cable environments.
The system includes 16 conductor clamps supporting 2.5–16 mm² conductors and 15 earth leads of 6 mm² each, with lead length of 500 mm for flexible routing within the enclosure.
Designed for VX, VX IT, and TS enclosures, it fits the 25 mm DIN pitch pattern on distributors and 482.6 mm (19") mounting angles, facilitating straightforward integration into existing layouts.
The rail is made from E-Cu 57 in accordance with DIN EN 12 163 and DIN EN 13 601, delivering high conductivity and reliable earth pathways in industrial cabinets.
