Rittal 7542000 DK Earth Rail - 200 A Capacity
Part Number: 7542000
Quick Summary
Rittal DK earth rail provides reliable star earthing for cable clamps in patch panels and 19-inch distributions. Engineers often face inconsistent grounding in modular enclosures, leading to reliability issues and maintenance overhead. CE-compliant and aligned with DIN EN copper standards, including DIN EN 12 163 and DIN EN 13 601, this rail delivers a robust 200 A path with fully adjustable earth terminals for repeatable grounding. It supports VX, VX IT, and TS enclosures, simplifying installation and reducing wiring complexity. By integrating this earth rail, you gain improved grounding reliability, faster serviceability, and safer, compliant control panels and distribution boards. It also accommodates the 25 mm DIN pitch pattern for easy retrofits in existing layouts.
Product Information
Extended Description

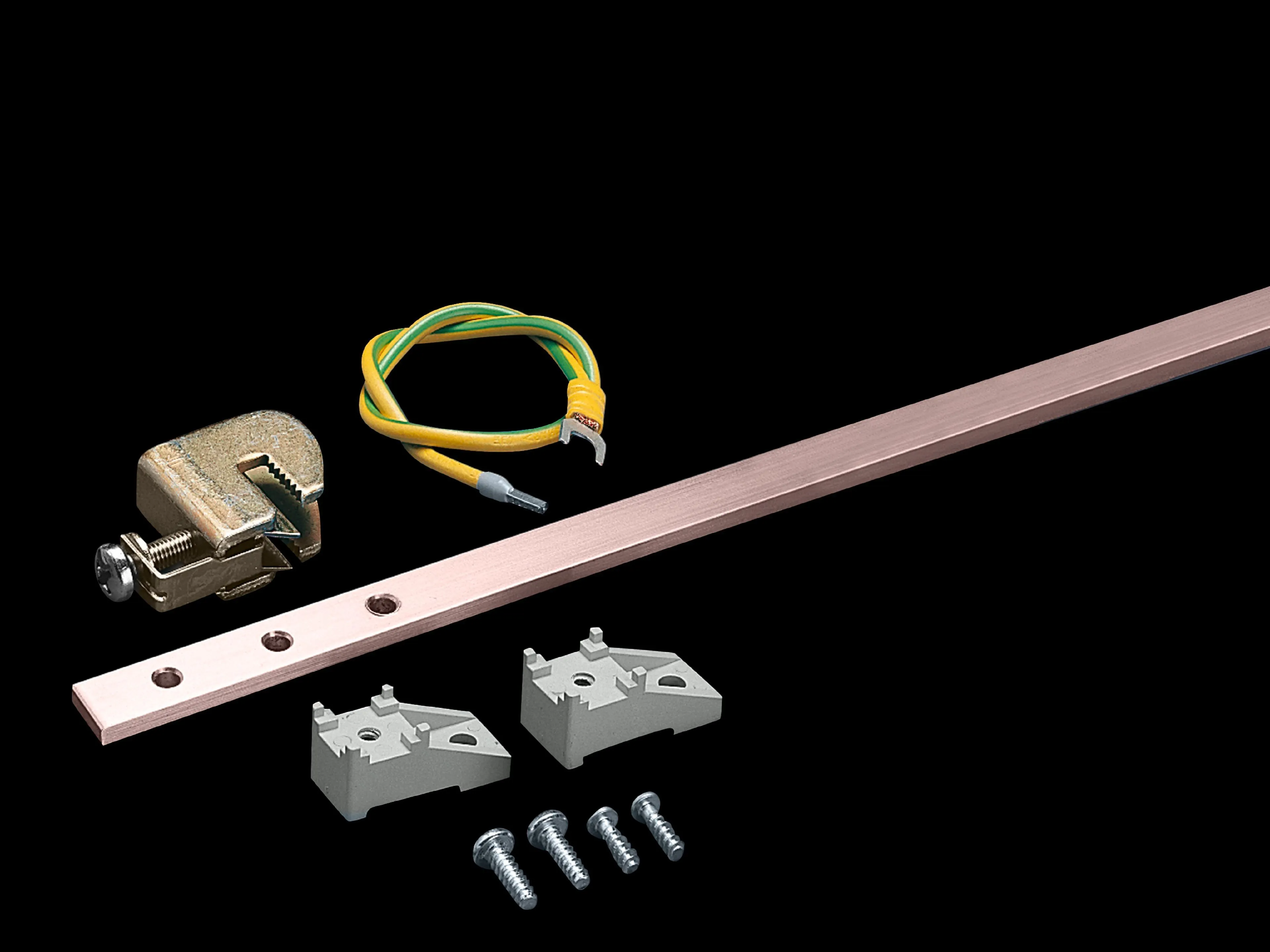

7542000 Rittal: DK earth rail, vertical, L: 745 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
Article number
DK 7542.000
Product description
Easily fitted to the 25 mm DIN pitch pattern of distributors or to the 482.6 mm (19") mounting angles. The supplied earth conductors facilitate star earthing of the cable clamp straps in the patch panels. The earth terminals are fully adjustable. Current carrying capacity of rail approx. 200 A.
Supply includes
Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm | 15 earthing leads 6 mm², L = 500 mm | null | Assembly parts
Dimensions
Length: 745 mm
To fit
Enclosure type: VX | VX IT | TS | Height: 1,000 mm
Packs of
1 pc(s).
Weight/pack
1.655 kg
Customs tariff number
74198090
EAN
4028177131811
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
DK earth rail, vertical, L: 745 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
Feature: Vertical DK earth rail with a length of 745 mm and earth leads 15 x 6 mm² plus 16 clamps for 2.5–16 mm². Business impact: Provides a high-current, low-impedance grounding path up to 200 A, reducing grounding variance and improving system reliability. Application: Ideal for patch panels and 19" distributors, ensuring consistent star earthing in VX and TS enclosures. Feature: Fully adjustable earth terminals. Business impact: Enables precise tuning of grounding points to compensate for layout changes or component tolerances, lowering impedance and preventing intermittent faults. Application: Suitable for on-site reconfiguration in evolving control panels and data protection cabinets. Feature: Copper earth rail (E-Cu 57) per DIN EN 12 163 and DIN EN 13 601. Business impact: Delivers stable, high-conductivity paths with long-term durability in harsh industrial environments. Application: Suitable for high-reliability installations in industrial automation and machinery enclosures. Feature: 25 mm DIN pitch compatibility and 19" mounting angle fit. Business impact: Simplifies integration with existing distribution rails and standard enclosure frames, reducing installation time and errors. Application: Fast retrofit in VX, VX IT, and TS enclosure families. Feature: Comprehensive supply including 15x 6 mm² leads and 16x clamps. Business impact: Reduces procurement steps and parts mismatch, accelerating project timelines. Application: Streamlined installation in new builds or refurbishments of control panels and patch panels.
