Rittal DK 7545.000 Earth Rail - 200 A
Part Number: 7545000
Quick Summary
The DK earth rail provides star earthing for cable clamps in VX and VX IT enclosures. When installations change, fixed grounding paths waste time and risk improper contact. It aligns with ETIM EC000329 and ECLASS 27400605, plus DIN EN 12 163 and DIN EN 13 601 standards for reliable procurement and compliance. This earth rail supports 200 A capacity while simplifying installation, grounding reliability, and ongoing maintenance. By leveraging 25 mm DIN pitch compatibility and 482.6 mm mounting options, it reduces panel footprint and expedites upgrades. Engineers appreciate the fully adjustable earth terminals and the 15 x 6 mm² earthing leads with 500 mm length. This combination delivers faster commissioning, fewer field faults, and a safer, more compliant grounding scheme.
Product Information
Extended Description

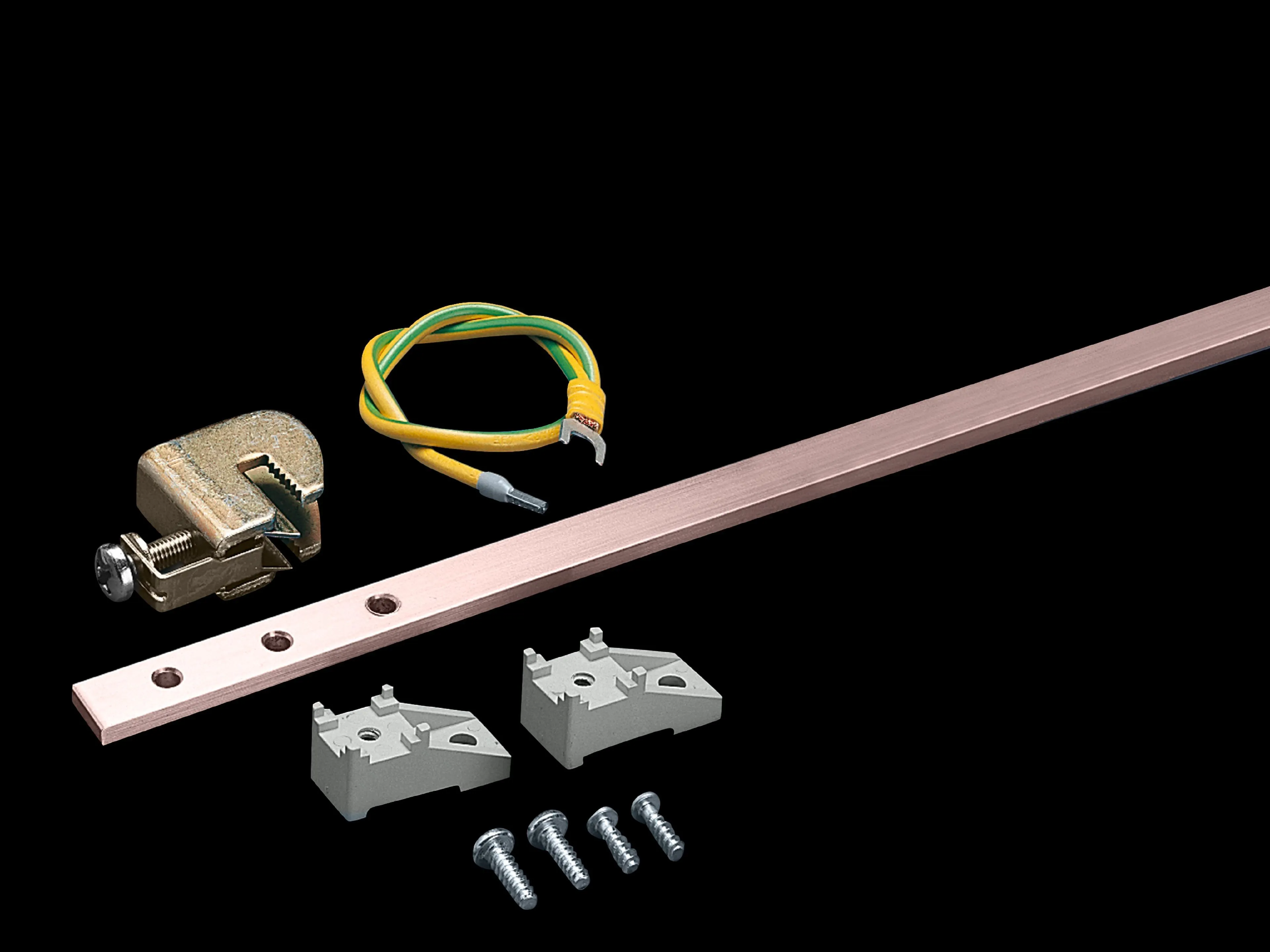

7545000 Rittal: DK earth rail, vertical, L: 1345 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
Article number
DK 7545.000
Product description
Easily fitted to the 25 mm DIN pitch pattern of distributors or to the 482.6 mm (19") mounting angles. The supplied earth conductors facilitate star earthing of the cable clamp straps in the patch panels. The earth terminals are fully adjustable. Current carrying capacity of rail approx. 200 A.
Supply includes
Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm | null | 15 earthing leads 6 mm², L = 500 mm | Assembly parts
Dimensions
Length: 1,345 mm
To fit
Enclosure type: VX | VX IT | TS | Height: 1,600 mm
Packs of
1 pc(s).
Weight/pack
2.312 kg
Customs tariff number
74198090
EAN
4028177131873
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
DK earth rail, vertical, L: 1345 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
Feature: Star earthing with adjustable terminals provides a consistent grounding path across the rail. Business Impact: Minimizes contact resistance and variability, reducing grounding faults and improving overall safety. Application: Ideal for dense patch panels and cable clamps in VX and VX IT enclosures, where quick reconfiguration is routine. Feature: The DK 7545.000 rail is 1,345 mm tall and crafted from E-Cu 57 for high conductivity and rigidity. Business Impact: Supports a current carrying capacity around 200 A, enabling scalable grounding during expansions. Application: Fits 25 mm DIN pitch patterns and 482.6 mm mounting angles to ease integration with standard distributor frames. Feature: Supplied with 15 earthing leads of 6 mm² and length 500 mm, plus 16 conductor clamps 2.5-16 mm². Business Impact: Reduces field termination time and ensures robust, repeatable terminations across panels. Application: Especially valuable for patch panels and busbar assemblies in industrial cabinets. Feature: Vertical orientation and compatibility with VX | VX IT | TS enclosure families. Business Impact: Simplifies procurement, reduces part variety, and accelerates installation schedules for projects with multiple enclosure types. Application: Suitable for enclosures up to 1,600 mm in height with straightforward mounting on 25 mm DIN rails. Feature: Compliance and traceability with ETIM EC000329 and ECLASS 27400605, plus DIN EN 12 163 and DIN EN 13 601. Business Impact: Enhances supplier confidence, improves ERP data quality, and supports audit readiness. Application: Beneficial for OEMs and end users requiring standardized interchangeability. Feature: Ready-to-install unit includes assembly parts and practical documentation for quick commissioning. Business Impact: Minimizes downtime during retrofit or expansion, enabling faster ROI through reduced engineering hours. Application: Commonly used in patch panels and distributor sets within VX-type cabinets.
