Rittal 7546000 Earth Rail - 200 A Capacity
Part Number: 7546000
Quick Summary
Rittal 7546000 earth rail provides reliable star earthing for cable clamp straps in patch panels and distribution enclosures. Engineers often struggle with inconsistent grounding and difficult installation across VX, VX IT, and TS enclosures. This unit aligns with DIN EN 12 163 and DIN EN 13 601 for earth connections, and supports interoperability through ETIM 9 EC000329 and ECLASS 8.0 27400605. By integrating 15 x 6 mm² earthing leads and adjustable earth terminals, it simplifies maintenance, enhances grounding reliability, and optimizes space, delivering tangible cost and safety benefits in industrial distribution setups. The design also supports common DIN and 19" mounting configurations, reinforcing your installation efficiency and long-term reliability.
Product Information
Extended Description
7546000 Rittal: DK earth rail, vertical, L: 1545 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
Article number
DK 7546.000
Product description
Easily fitted to the 25 mm DIN pitch pattern of distributors or to the 482.6 mm (19") mounting angles. The supplied earth conductors facilitate star earthing of the cable clamp straps in the patch panels. The earth terminals are fully adjustable. Current carrying capacity of rail approx. 200 A.

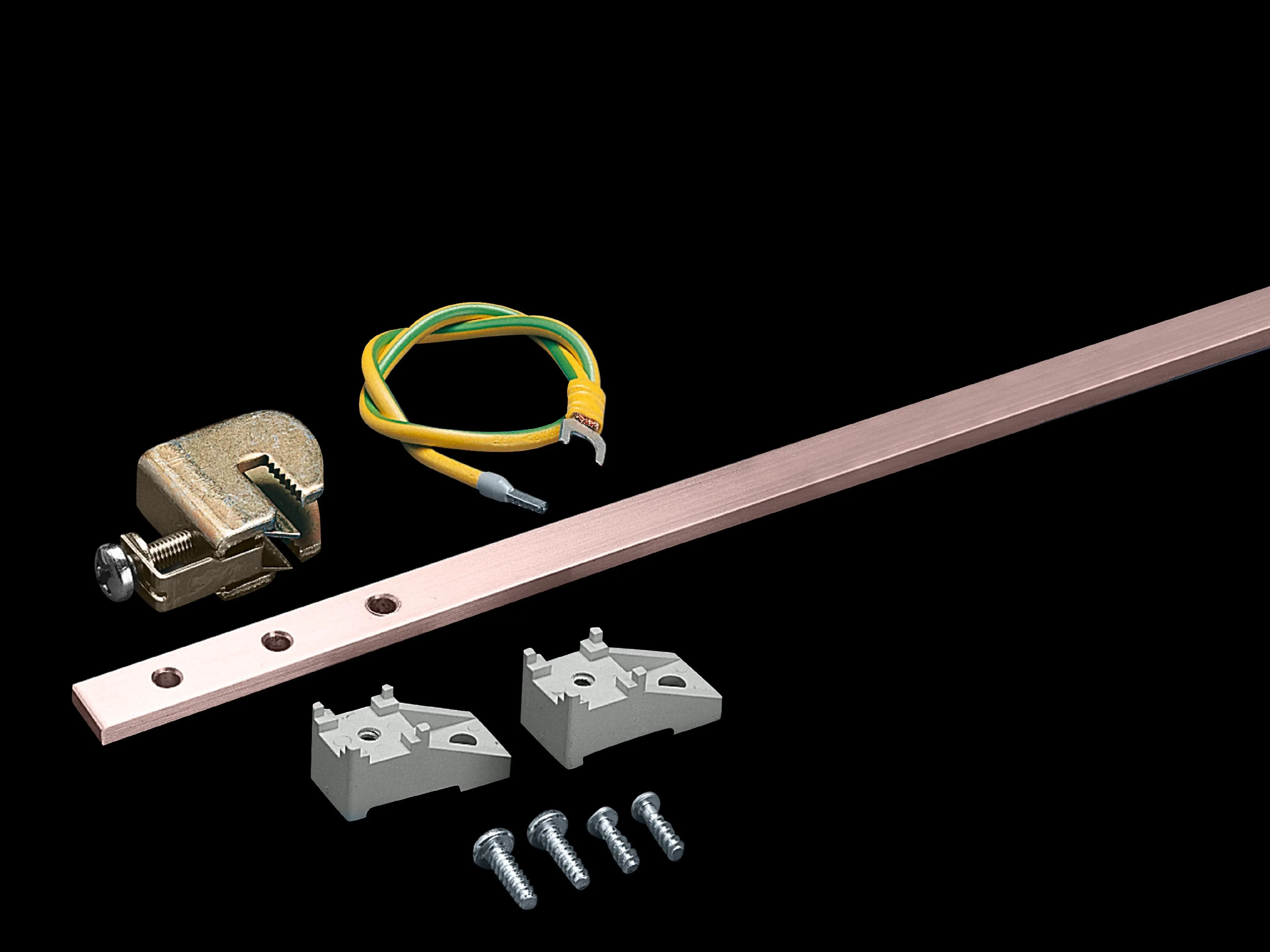

Supply includes
Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm | null | 15 earthing leads 6 mm², L = 500 mm | Assembly parts
Dimensions
Length: 1,545 mm
To fit
Enclosure type: VX | VX IT | TS | Height: 1,800 mm
Packs of
1 pc(s).
Weight/pack
2.657 kg
Customs tariff number
74198090
EAN
4028177131897
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
DK earth rail, vertical, L: 1545 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
The DK earth rail is a vertical ground distribution rail, 1,545 mm long, with 15x 6 mm² earthing leads. This feature delivers a consolidated grounding path capable of around 200 A, reducing voltage drop and ground loops in dense patch panels. The business impact is improved reliability and faster fault isolation, particularly in VX, VX IT, and TS enclosures where space is at a premium. The conductor connection clamps are 16x 2.5-16 mm², and the earth terminals are fully adjustable, enabling flexible wiring layouts and quick reconfigurations as systems evolve. This translates to shorter commissioning times, lower maintenance overhead, and easier future upgrades. Material is E-Cu 57 to DIN EN 12 163 and DIN EN 13 601, ensuring high conductivity and durable performance in harsh industrial environments. The supply includes the earth rail, 15 earthing leads, and assembly parts, providing a complete, ready-to-install solution. Designed to fit 25 mm DIN pitch patterns or 482.6 mm (19") mounting angles, this rail adapts to both distributor lines and enclosure variants, supporting scalable grounding across plants. ETIM 9 EC000329 and ECLASS 8.0 27400605 classifications further streamline procurement and interoperability in BOMs and ERP workflows.
Get a Quick Quote for a Rittal 7546000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7546000?
Enquire Now
FAQs
Install the vertical rail along the enclosure interior using the 25 mm DIN pitch pattern or the 19" mounting angles. Attach the 16 clamps to establish connections for 2.5-16 mm² conductors, then route the 15 x 6 mm² earthing leads to the star grounding points. Ensure the rail length aligns with the enclosure height and tighten all assembly parts to specification for a secure, vibration-resistant ground path.
The DK 7546.000 rail is 1,545 mm long, with 15 x 6 mm² earthing leads and 16 x 2.5-16 mm² conductor clamps. It is designed to carry approximately 200 A, with conductor connections and terminals fully adjustable to accommodate various grounding schemes in industrial cabinets.
Yes. The earth rail is easily fitted to the 25 mm DIN pitch pattern of distributors or to 482.6 mm (19") mounting angles, offering flexible installation across VX, VX IT, and TS enclosures and enabling streamlined retrofits or upgrades.
The DK earth rail conforms to DIN EN 12 163 and DIN EN 13 601 for earth connections, and is classified in ETIM 9 EC000329 and ECLASS 8.0 27400605, helping with interoperability and procurement data. Material is E-Cu 57, supporting durable, high-conductivity grounding in industrial environments.
The fully adjustable earth terminals and high current capacity simplify grounding layouts, reduce installation time, and improve fault diagnosis. By consolidating earth paths, maintenance becomes faster and safer, while the robust copper construction and compatibility with common enclosure types help lower lifecycle costs in electrical distribution networks.
