Rittal DK 7547.000 Earth Rail - 200 A, 1745 mm DIN EN 12 163
Part Number: 7547000
Quick Summary
Rittal DK 7547.000 earth rail provides star grounding for patch panels in VX, VX IT and TS enclosures. Installing unreliable ground connections is a common challenge in dense rack layouts, where conductor routing and terminal accessibility complicate maintenance. This earth rail uses 15x 6 mm² earthing leads and adjustable terminals to tolerate tolerances and vibration, while delivering a continuous 200 A current path. It is manufactured from ECu 57 copper to DIN EN 12 163 and DIN EN 13 601, supporting compliance and long-term reliability. For procurement teams, the result is faster installation, reduced fault risk, and simplified service life planning, translating to lower lifecycle costs and higher system uptime in control panels and data centers.
Product Information
Extended Description
7547000 Rittal: DK earth rail, vertical, L: 1745 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
Article number
DK 7547.000
Product description
Easily fitted to the 25 mm DIN pitch pattern of distributors or to the 482.6 mm (19") mounting angles. The supplied earth conductors facilitate star earthing of the cable clamp straps in the patch panels. The earth terminals are fully adjustable. Current carrying capacity of rail approx. 200 A.
Supply includes

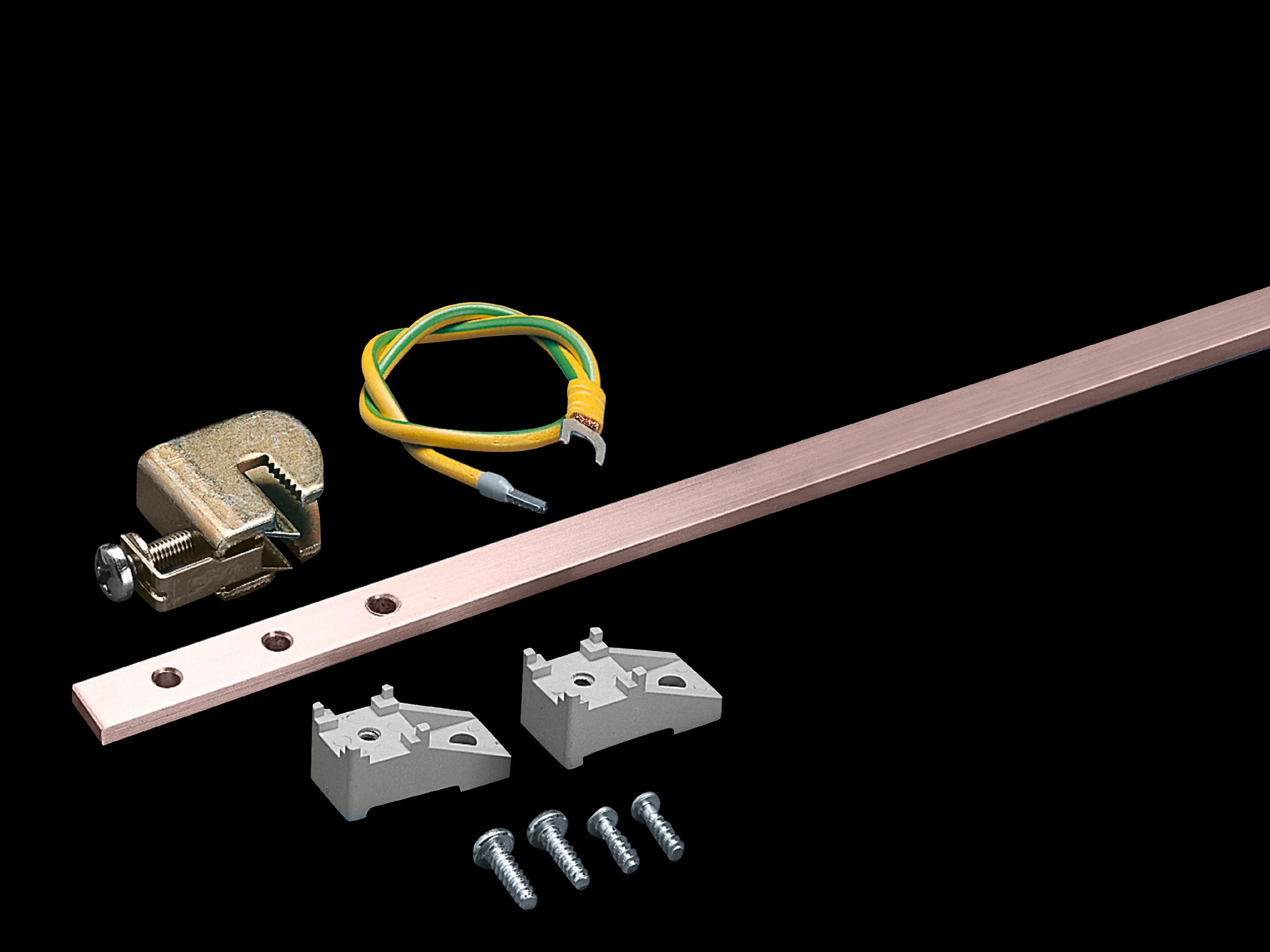

Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm | null | 15 earthing leads 6 mm², L = 500 mm | Assembly parts
Dimensions
Length: 1,745 mm
To fit
Enclosure type: VX | VX IT | TS | Height: 2,000 mm
Packs of
1 pc(s).
Weight/pack
2.809 kg
Customs tariff number
74198090
EAN
4028177131910
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
DK earth rail, vertical, L: 1745 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm²
Feature: The vertical 1745 mm earth rail is built from ECu 57 copper and fits the standard 25 mm DIN pitch pattern. Business Impact: Delivers a low-impedance ground path across the entire distribution area, reducing grounding faults and voltage drop. Application: Ideal for VX, VX IT, and TS enclosures where patch panels require reliable star earthing. Feature: Supplied earthing leads and clamps. Business Impact: Enables quick, repeatable connections with ample headroom for surge currents, lowering field wiring errors and maintenance time. Application: Patch panels and cable clamps in 19" rack configurations across automation lines. Feature: Current carrying capacity approx. 200 A. Business Impact: Supports high-current grounding for dense I/O panels, boosting safety and uptime. Application: Industrial cabinets and data centers with heavy grounding loads. Feature: Fully adjustable earth terminals. Business Impact: Accommodates mounting tolerances and vibration without compromising contact quality. Application: Reconfigurable grounding for growing automation systems. Feature: Compliance with DIN EN 12 163 and DIN EN 13 601 (ETIM/ECLASS references included). Business Impact: Simplifies cross-vendor procurement and ensures compatibility with other electrical components. Application: VX, TS enclosures and distributor systems requiring certified earth paths.
