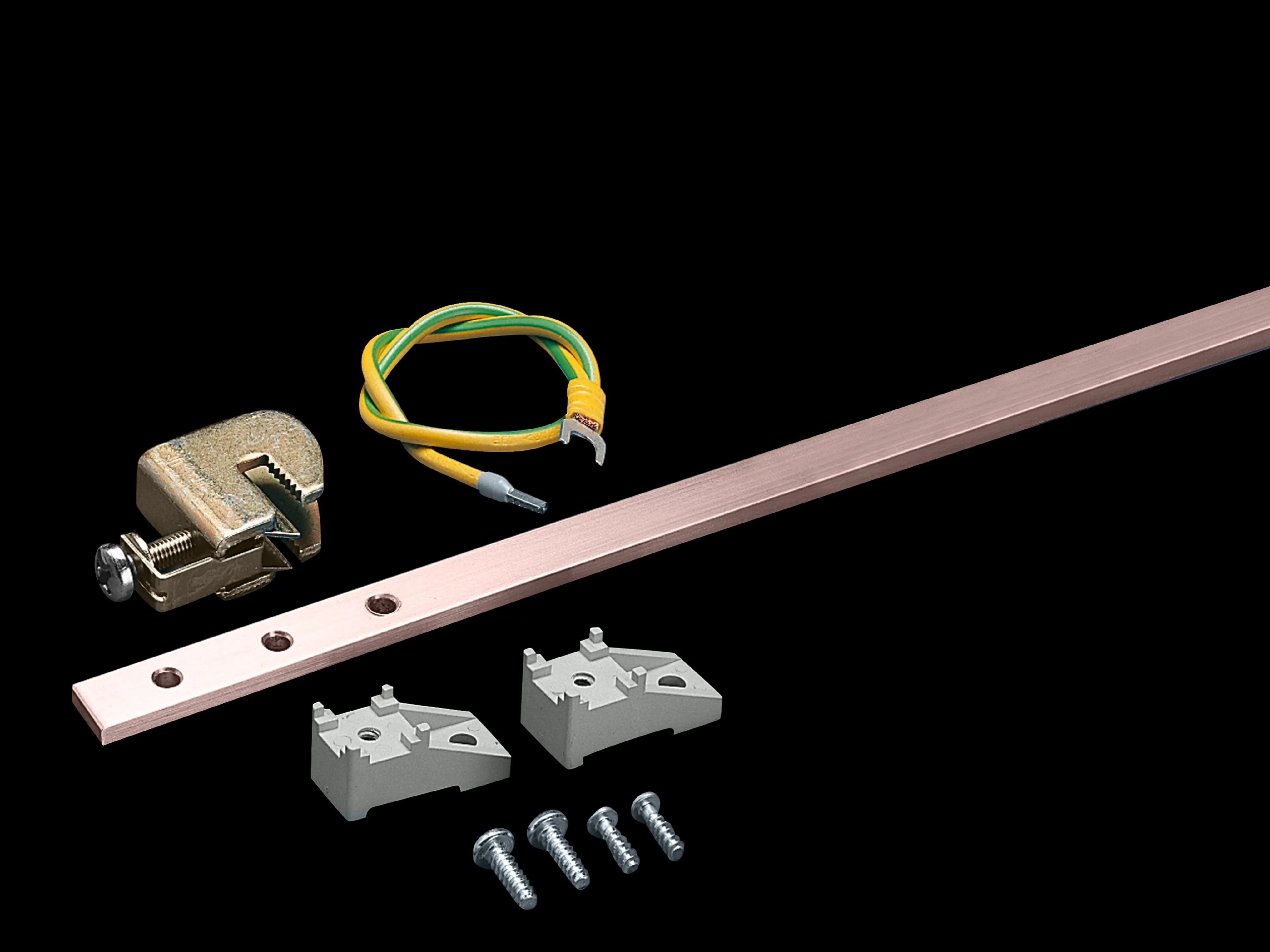

Rittal DK 7548.000 Earth Rail - 200 A Capacity

Length and DIN pitch compatibility enable easy integration with standard 25 mm DIN pitch distributors and 19" mounting angles, reducing installation time and minimizing retrofit complexity in existing panels. This directly translates to lower labor costs and faster project timelines in control cabinet upgrades and new builds. The 1,945 mm vertical rail supports large-scale grounding runs, while the 15x 6 mm² earthing leads and 16x conductor clamps (2.5-16 mm²) create a scalable, star-ground network that distributes current evenly and reduces risk of localized overheating in dense cable bundles. Made from ECu 57 in accordance with DIN EN 12 163 and DIN EN 13 601, the rail delivers high conductivity, corrosion resistance, and long-term reliability in demanding industrial environments, ensuring consistent performance across shifts. Fully adjustable earth terminals simplify field tailoring to varying conductor sizes, enabling precise bonding without rework and minimizing maintenance downtime. The assembly includes all necessary parts, and at 2.907 kg per pack, it is straightforward to handle and inventory for project planning and maintenance cycles. Compatible with VX, VX IT, and TS enclosure families, this rail provides a robust, scalable grounding solution that adapts to evolving electrical architectures while maintaining regulatory alignment and safe operation.
