Rittal IT 7548.210 Earthing Connector - EC000329
Part Number: 7548210
Quick Summary
Rittal IT 7548.210 Earthing Connector enables reliable potential equalisation on 8 mm earth bolts in electrical enclosures. Without proper equalisation, grounding variances can cause interference, corrosion, and uneven potential distribution across cabinet sections. This part aligns with ETIM EC000329 and ECLASS 8.0 27400605 classifications, supporting accurate data in BOMs and procurement systems. With support for up to five flat-pin connectors (6.3 mm) per earthing point and compatibility with central earthing point 7829.200, it enables scalable, modular grounding. The kit ships with ten earthing connectors and assembly parts, delivering consistent, repeatable installation across multiple enclosures and simplifying maintenance planning.
Product Information
Extended Description

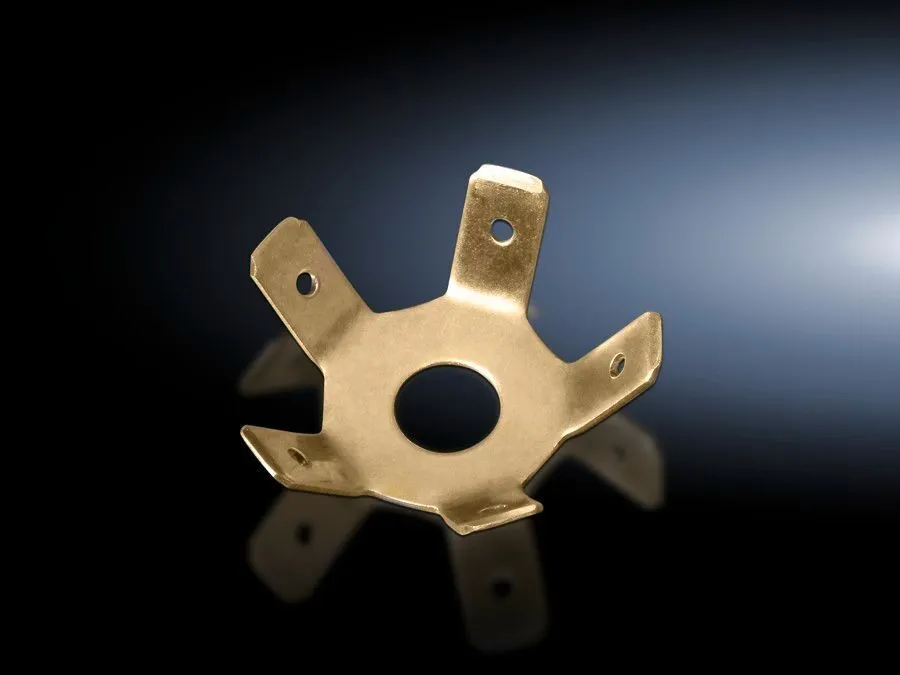

7548210 Rittal: DK Potential equalisation star, For earthing bolt, 8 mm, For flat-pin connector, 6,3 mm
Article number
IT 7548.210
Product description
The earthing connector is used for simple potential equalisation on an 8 mm earthing bolt, or in conjunction with central earthing point 7829.200. Up to five flat-pin connectors (6.3 mm) may be contacted on one earthing point.
Supply includes
10 earthing connectors, including assembly parts.
Packs of
10 pc(s).
Weight/pack
0.12 kg
Customs tariff number
73269098
EAN
4028177520264
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
DK Potential equalisation star, For earthing bolt, 8 mm, For flat-pin connector, 6,3 mm
Feature: 8 mm earthing bolt compatibility is built into the IT 7548.210 connector. Business Impact: reduces field adaptation time by providing a dedicated ground path at the bolt, minimizing grounding gaps and potential drift. Application: ideal for control cabinets and enclosures where reliable potential equalisation is critical. Feature: up to five flat-pin connectors (6.3 mm) can be contacted on a single earthing point. Business Impact: increases grounding density and reduces hardware requirements, facilitating neater cable routing and faster installs. Application: data centers, switchgear, and industrial machines requiring robust bonding networks. Feature: pack includes 10 earthing connectors plus assembly parts. Business Impact: lowers replenishment cycles and minimizes part-number mismatches, cutting maintenance downtime. Application: scalable installations across larger enclosure arrays. Feature: compatibility with central earthing point 7829.200. Business Impact: enables modular grounding architectures with consistent potential distribution. Application: modular control panels and distributed automation cabinets. Feature: standardized data and identifiers ETIM EC000329, ECLASS 27400605, and EAN 4028177520264. Business Impact: improves procurement accuracy, BOM integrity, and traceability in ERP workflows. Application: engineering BOMs, ERP imports, and maintenance records. Feature: packaging specifics—0.12 kg weight per pack, 10 pcs per pack. Business Impact: manageable field handling and reduced shipping weight, lowering logistics costs. Application: field service inventory and assembly line stocking.
Get a Quick Quote for a Rittal 7548210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7548210?
Enquire Now
FAQs
Yes. The IT 7548.210 is designed for simple potential equalisation on 8 mm earthing bolts and is compatible with central earthing points like 7829.200, making it suitable for standard Rittal control cabinets and similar enclosures.
The connector supports up to five flat-pin connectors (6.3 mm) per earthing point, ships as a pack of ten connectors with assembly parts, and weighs 0.12 kg per pack. EAN is 4028177520264 and the product is classified under ETIM EC000329 and ECLASS 27400605.
Applications include control cabinets, automation panels, and machine enclosures where dense, reliable grounding paths are required. The ability to contact multiple 6.3 mm flat-pin connectors at a single earthing point simplifies multi-bonding and reduces installation time.
The product aligns with ETIM 9 EC000329 and ECLASS 8.0 27400605, with the EAN 4028177520264. These identifiers support accurate BOM imports, procurement workflows, and traceability.
Its ten-pack quantity and included assembly parts minimize restocking steps and downtime. The modular grounding approach, plus standardized data, reduces maintenance time and improves grounding reliability across multiple enclosures, delivering tangible ROI in uptime and compliance.
