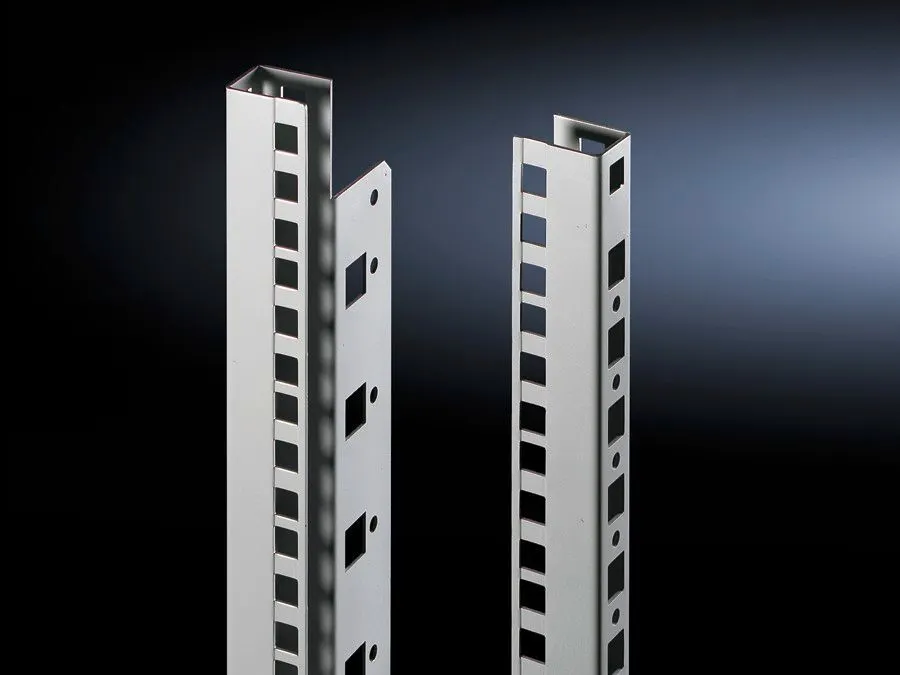

Rittal DK 7688.000 Mounting Angles - 24U, 25 mm Pitch
Part Number: 7688000
Quick Summary
Rittal DK 7688.000 mounting angles secure 19\" rack components in DK PS and CS enclosures. A common challenge is aligning mounting depth during upgrades or new installs, which this kit simplifies with depth-adjustable angles on a 25 mm pitch. While specific certifications aren’t listed in the data, CE conformity is typical for European deployments and IP-rated enclosure integrity is common in this product class; verify SIL status for mission-critical applications. By using these 24 U angles, you gain predictable access to equipment while maintaining proper ventilation and cable management. The zinc-plated sheet steel construction supports durable, repeatable installations, delivering faster deployments, reduced downtime, and scalable rack configurations for data centers and industrial control rooms.
Product Information
Extended Description
7688000 Rittal: DK 482.6 mm (19") mounting angles, 24 U, For H: 1200 mm
Article number
DK 7688.000
Product description
For mounting 482.6 mm (19") components in DK PS network and server enclosures and in CS New Basic outdoor enclosures. The mounting angles are depth-adjustable on a 25 mm pitch pattern. A depth stay is required to attach the mounting angles.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Units
24 U
Installation dimensions
Installation depth for components:Â 482.6 mm | Installation width for components:Â 19"
To fit
Enclosure type:Â CS basic enclosures | DK PS | Height:Â = 1,200 mm
Packs of
2 pc(s).
Weight/pack
2.694 kg
PCF per pack (cradle-to-gate)
10.3Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177133341
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK 482.6 mm (19") mounting angles, 24 U, For H: 1200 mm
Feature: Depth-adjustable mounting angles on a 25 mm pitch. Business impact: Precise alignment reduces field modifications and rework, speeding installations in 482.6 mm (19") rack spaces. Application: 24 U rack installations in DK PS and CS New Basic enclosures. Feature: 24 U capacity. Business impact: Maximizes rack density for servers and networking gear, optimizing space and cooling. Application: Data center and industrial rack deployments. Feature: Sheet steel with zinc-plated finish. Business impact: Enhanced durability and corrosion resistance in harsh environments, lowering maintenance costs. Application: Indoor data centers and outdoor enclosures. Feature: Includes assembly parts; packs of two; weight 2.694 kg per pack. Business impact: Easier handling, reduced shipping and on-site effort, enabling faster turnover. Application: Quick hardware refreshes and field maintenance. Feature: Compatibility with DK PS and CS basic enclosures; installation dimensions: 482.6 mm depth, 19" width. Business impact: Simplifies planning and ensures reliable fit across multiple enclosure families. Application: Standardized deployments across server rooms and industrial facilities.
Get a Quick Quote for a Rittal 7688000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7688000?
Enquire Now
FAQs
Begin by confirming the enclosure compatibility (DK PS or CS New Basic). Position the mounting angles to align with a 482.6 mm depth and 19" width. Use the included assembly parts to attach the angles and secure them with the required depth stay. Ensure the H height is 1,200 mm and complete by checking cable routing and ventilation pathways. This ensures reliable support for 24U of equipment and minimizes rework during upgrades.
The DK 7688.000 is designed for 482.6 mm (19") components, suitable for DK PS network/server enclosures and CS New Basic outdoor enclosures. It provides depth-adjustable mounting on a 25 mm pitch, supporting typical 24U rack-mounted servers, switches, and power distribution units while maintaining alignment and serviceability.
Yes. The product description lists fitment for DK PS network/server enclosures and CS basic enclosures, with installation dimensions of 482.6 mm depth and 19" width. The set includes assembly parts and is supplied in packs of two, designed to streamline deployment across both interior and outdoor enclosure applications.
Certificate details are not fully listed in the provided data. In practice, components like these are commonly CE-compliant for European use and deployed within IP-rated enclosure environments. Always verify specific certifications, including CE, IP, or SIL status, with the supplier for your region and application.
The DK 7688.000 angles enable depth-adjustable, standardized mounting, reducing installation time and field modifications. Packaged as two units with assembly parts, they support faster upgrades and predictable serviceability. Environmental data indicates a cradle-to-gate PCF of 10.3 kg CO2 eq per pack, suggesting a smaller footprint for scalable, repeatable deployments in data centers and industrial facilities.
