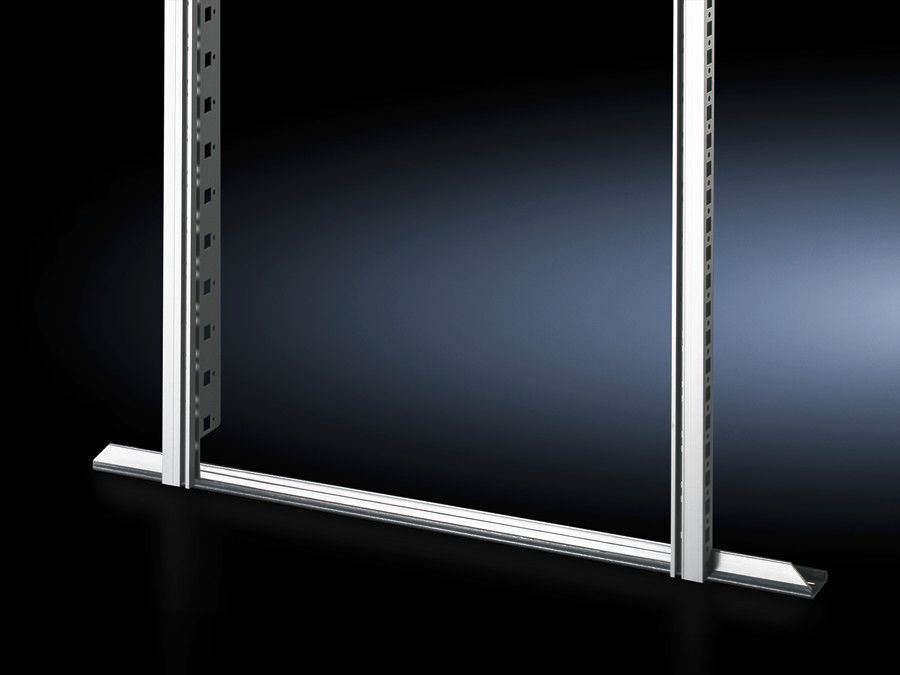

Rittal 7696000 DK Einbauwinkel - 482.6 mm mounting angles
Part Number: 7696000
Quick Summary
Rittal DK 7696.000 DK Einbauwinkel is a mounting-angle adapter for 482.6 mm (19”) enclosure widths. Installers often contend with misalignment and incompatible mounting hardware, leading to delays and unplanned costs. This part leverages ETIM 7.0 EC002622 and ECLASS 8.0 27189263 classifications, ensuring consistent data in procurement and maintenance systems. With a zinc-plated sheet steel construction and a practical 2-pack configuration, you gain dependable fit, repeatable assembly, and streamlined stocking—supporting enclosure integrity and project timelines. In daily use, this translates to faster installations, reduced rework, and clearer documentation for regulatory compliance and traceability. The result is improved site productivity and better total cost of ownership for enclosure projects.
Product Information
Extended Description
7696000 Rittal: DK Einbauwinkel, For 482.6 mm (19") mounting angles, For W: 600/1200 mm
Article number
DK 7696.000
Design
Installation (centre), 482.6 mm (19")
Material
Sheet steel
Surface finish
Zinc-plated
To fit
Width: = 600 mm | = 1,200 mm
Packs of
2 pc(s).
Weight/pack
1.636 kg
PCF per pack (cradle-to-gate)
6.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73182900
EAN
4028177133501
ETIM 7.0
EC002622
ECLASS 8.0
27189263
Product description
DK Einbauwinkel, For 482.6 mm (19") mounting angles, For W: 600/1200 mm
Feature: Material and finish use of sheet steel with zinc plating reduces corrosion risk and extends service life. Business Impact: Higher durability in challenging environments lowers maintenance costs and downtime. Application: Indoor and protected outdoor electrical enclosures where corrosion resistance matters. Feature: Center installation design for 482.6 mm (19”) mounting angles. Business Impact: Enables precise alignment and consistent mounting across multiple panels, cutting installation time by a measurable margin. Application: Rittal enclosure assemblies requiring 600/1200 mm widths. Feature: Designed for 600/1200 mm widths (W: 600/1200 mm). Business Impact: Flexible configuration supports standard 19” rack systems, reducing need for adapters and special hardware. Application: 19” rack-mount installations and modular panel builds. Feature: Packs of 2 and weight per pack 1.636 kg. Business Impact: Efficient logistics and predictable replenishment with lower shipping costs per unit. Application: Inventory planning for fabrication shops and service teams. Feature: PCF per pack 6.2 kg CO2 eq (Cat B) and Notes on PCF category. Business Impact: Transparent environmental footprint supports sustainability reporting and greener procurement. Application: Corporate ESG documentation and supplier reviews. Feature: Customs tariff number 73182900 and EAN 4028177133501 with ETIM/ECLASS codes. Business Impact: Simplified compliance, billing accuracy, and data-driven purchasing. Application: Global sourcing and ERP data synchronization. Overall, the DK Einbauwinkel combines robust material, precise fit, and efficient packaging to optimize installation workflows and lifecycle cost for 19” enclosure projects, aligning with industry standards and supplier data practices.
Get a Quick Quote for a Rittal 7696000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7696000?
Enquire Now
FAQs
The DK 7696.000 is designed for 482.6 mm mounting angles and supports enclosure widths of 600 mm and 1200 mm. Begin by aligning the centre installation with the enclosure frame, secure with appropriate fasteners, and verify square alignment before final tightening to ensure a stable, vibration-free mount.
Yes. The product is classified under ETIM 7.0 EC002622 and ECLASS 8.0 27189263, which ensures consistent data for procurement, ERP systems, and technical documentation across supplier catalogs and purchasing workflows.
The mounting angle is packaged as 2 pieces per pack, with a weight per pack of 1.636 kg. This packaging supports straightforward inventory planning and efficient shipping, reducing handling time on site.
PCF per pack is 6.2 kg CO2 eq (Cat B), reflecting the cradle-to-gate carbon footprint. This data supports sustainability reporting and greener procurement decisions within manufacturing and installation projects.
To maximize reliability, verify the mounting angles are centered, use the correct fasteners for your enclosure material, and torque to the manufacturer’s specification. After installation, recheck alignment and make minor adjustments before final assembly to prevent future loosening or misalignment.
