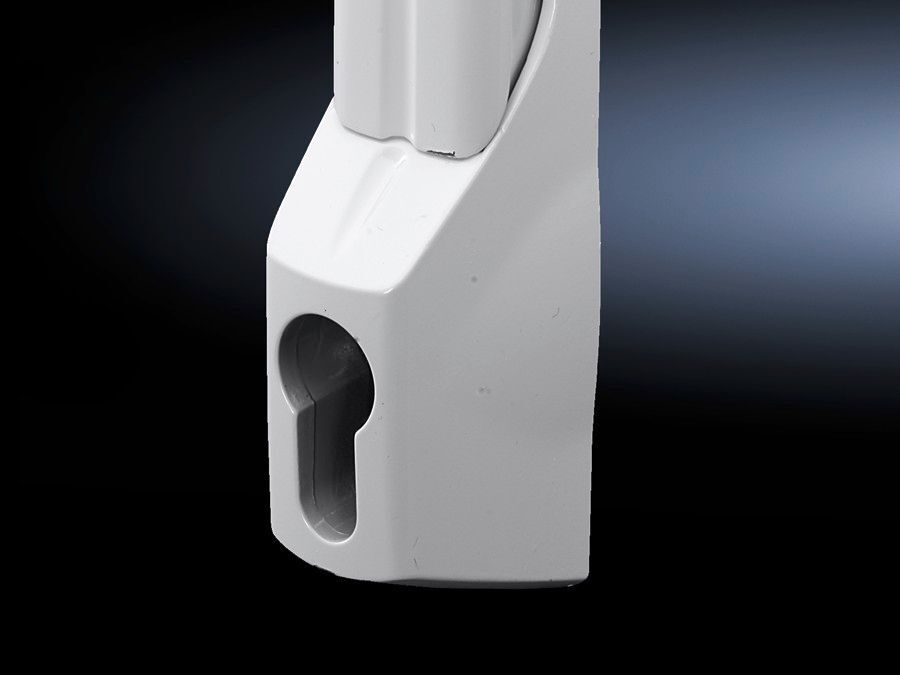

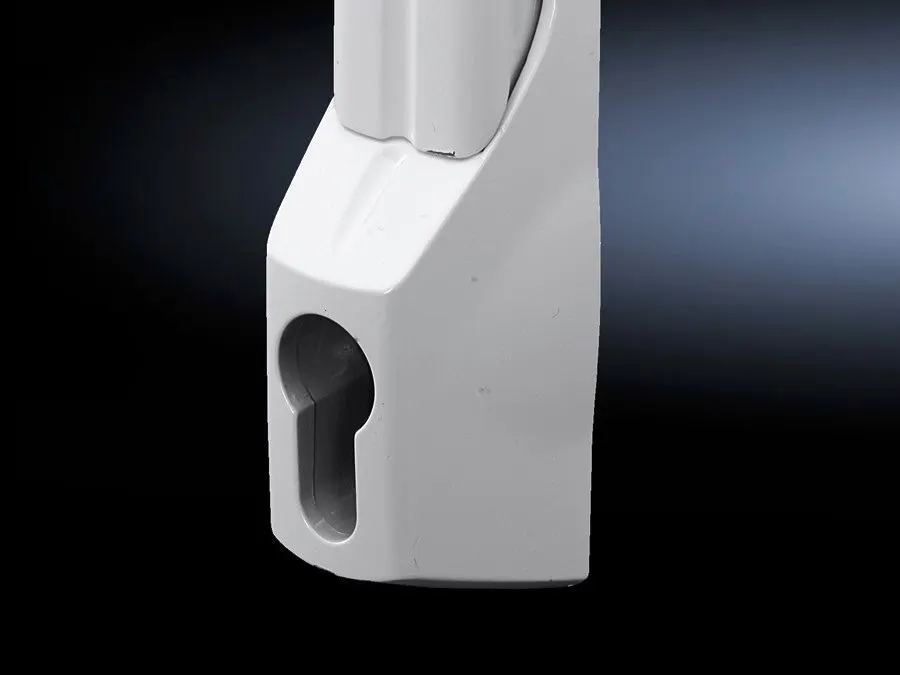

Rittal 7705120 DK Mini-comfort handle - half-cylinder
Part Number: 7705120
Quick Summary
The DK Mini-comfort handle securely accommodates lock inserts on AX wall-mounted enclosures, enabling reliable, tool-friendly access. Many panel builders struggle to retrofit standard 40 or 45 mm semi-cylinders without compromising ergonomics or enclosure protection. The design aligns with DIN 18 252 for semi-cylinder compatibility and supports ETIM 9 EC000327 and ECLASS 8.0 27189266, helping you map parts in your BOM. With die-cast zinc construction and a durable RAL 7035 finish, this handle offers long service life in industrial environments. In practice, this means faster maintenance cycles, reduced part variety, and consistent security interfaces across multiple cabinet lines, improving supply-chain reliability and maintenance planning for AX 3-part, 15 U enclosures.
Product Information
Extended Description
7705120 Rittal: DK Mini-comfort handle, For semi-cylinders, For EL, 3-piece, 15 U
Article number
DK 7705.120
Design
for profile half-cylinder
Product description
Prepared for the installation of lock inserts or for the installation of standard commercially available 40 or 45 mm semi-cylinders, as well as lock and push-button inserts.
Material
Die-cast zinc
Colour
RAL 7035
Note
Lock inserts, type F: Replacement of the complete system only (handle including lock inserts)
Note on Model No.
Prepared for the installation of semi-cylinders with a total length of 40 or 45 mm (to DIN 18 252)
To fit enclosure type
AX wall-mounted enclosure, 3-part
Packs of
1 pc(s).
Weight/pack
0.551 kg
Customs tariff number
83024110
EAN
4028177324510
ETIM 9
EC000327
ECLASS 8.0
27189266
Product description
DK Mini-comfort handle, For semi-cylinders, For EL, 3-piece, 15 U
The DK 7705120 is prepared for the installation of lock inserts or standard 40 to 45 mm semi-cylinders, including lock and push-button inserts. This reduces design variability and speeds up upgrades, delivering faster field retrofits and lower total cost of ownership as technicians can reuse existing cylinders with confidence. Crafted from die-cast zinc and finished in RAL 7035, the handle provides robust wear resistance and a professional aesthetic, supporting durability in harsh industrial environments while maintaining ergonomic grip and operational reliability. Note that if you replace lock inserts (type F), the complete system is exchanged (handle plus inserts) to simplify service planning and minimize unexpected downtime. The design is tuned for semi-cylinder lengths defined by DIN 18 252, ensuring predictable fit across standard configurations. It fits AX wall-mounted enclosures, 3-part, 15 U, streamlining procurement and installation across multiple cabinet families. Packaging is 1 piece per pack, reducing inventory complexity and helping logisticians keep stock lean while supporting just-in-time assembly.
Get a Quick Quote for a Rittal 7705120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7705120?
Enquire Now
FAQs
To install the DK Mini-comfort handle, ensure your enclosure is AX wall-mounted, 3-part, 15 U, and prepared for 40 or 45 mm semi-cylinders as defined by DIN 18 252. Align the handle with the mounting points, insert the appropriate lock and semi-cylinder hardware, and secure with the supplied fasteners. This setup supports reliable operation and consistent security across cabinet lines. If replacing an existing system, follow the note on replacing the complete system when using lock inserts of type F.
Yes. The DK 7705.120 is prepared for the installation of standard 40 or 45 mm semi-cylinders and lock inserts, including push-button variants, in accordance with DIN 18 252. This compatibility reduces the need for adapters or custom parts, simplifies procurement, and ensures reliable locking performance across common cylinder configurations.
The handle is made from die-cast zinc and finished in RAL 7035. This combination provides solid mechanical strength, good wear resistance, and a consistent, easy-to-clean surface suitable for demanding industrial environments. The finish also helps maintain a uniform appearance across assemblies and supports long service life with minimal maintenance.
The DK Mini-comfort handle is designed for AX wall-mounted enclosures, specifically the 3-part configuration rated at 15 U. This targeting ensures optimal fit and alignment with standard AX mounting panels, contributing to smoother retrofits, faster installation, and predictable performance when used with commonly available 40/45 mm semi-cylinders.
Technical documentation is available on the Rittal site. You can view the product PDF and the multi-language instruction set (DE, EN, ES, FR, IT, JA, NL, SV) for 7705120, including installation guidance and the 7705120_Instructions file. These downloads support accurate installation, compliance alignment, and efficient onboarding for maintenance teams.
