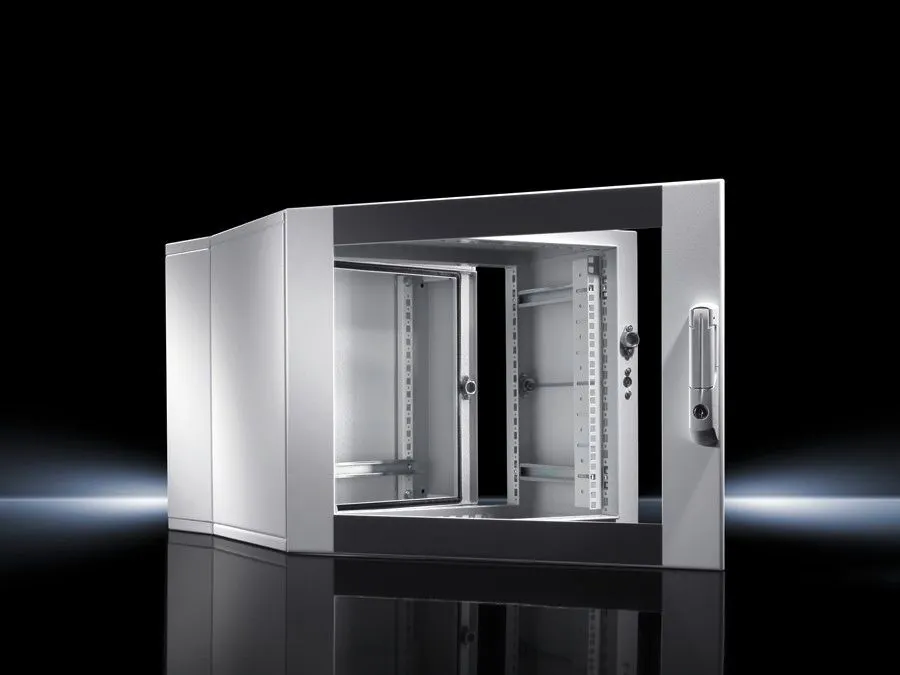

Rittal DK 7706.135 Wall-mounted Enclosure - IP55
Part Number: 7706135
Manufacturer
Rittal
Part number
7706135
Alt Part Number
DK 7706.135
Quick Summary
Rittal DK 7706.135 wall-mounted enclosure securely houses electrical control systems in industrial environments. Its depth-variable design and pre-configured accessories reduce assembly time and wiring complexity in confined machine spaces. With IP55 protection, IK08 impact resistance, and CE marking, it meets core industry standards while delivering robust performance for IT-ready control panels. Designed for durable, scalable automation deployments, this enclosure supports efficient installations and long-term reliability in automation projects.
Product Information
Extended Description
7706135 Rittal: DK Wall-mounted enclosures, 3-part, WHD: 600x345x473 mm, 6 U, With punched rails, and mounting angles, depth-variable
Article number
DK 7706.135
Design
Wall-mounted enclosures IT | with punched rails and mounting angles, depth-variable
Product description
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material
Wall and hinged part: Sheet steel, 1.5 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
General colour
RAL 7035
Colour
Wall and hinged part: RAL 7035 | Glazed door: RAL 7035/7015 (slate grey)
Supply includes
Wall section with solid gland plate, top and bottom, two vertical mounting rails and C rail, horizontal, for cable clamping | Hinged part with 25 mm pitch pattern of holes in the front and rear frame, and two 482.6 mm (19") mounting angles at the front, infinitely depth-variable | 4 wall mounting brackets 10 mm | Designer glazed door | 1 double-kit key no. 5 | Mini-comfort handle for lock inserts | Security lock 3524 E
Units
6 U
Dimensions
Width: 600 mm | Height: 345 mm | Depth: 473 mm
Installation depth
420 mm
Clearances
Clearance width: 502 mm | Clearance height: 282 mm
Depth hinged part
316 mm
Depth of wall section
135 mm
IK Code
IK08
Load capacity of hinged part (static)
300 N
Basic material
Sheet steel
Protection category to IEC 60 529
IP 55
Packs of
1 pc(s).
Weight/pack
26.4 kg
Customs tariff number
94032080
EAN
4028177324176
ETIM 9
EC000261
ECLASS 8.0
27142408
Product description
DK Wall-mounted enclosures, 3-part, WHD: 600x345x473 mm, 6 U, With punched rails, and mounting angles, depth-variable
Pre-configured enclosure kit reduces procurement and assembly time by delivering a ready-to-use solution with wall section, solid gland plate, top and bottom panels, two vertical mounting rails and a C rail, and front-mounted accessories. Business impact: faster project Start-Up and fewer field errors. Application: machine controls in packaging lines or assembly systems. Depth-variable hinged part enables effortless access for maintenance and cable routing, minimizing downtime during upgrades or changes. Business impact: simplified servicing and adaptable layouts. Application: panel upgrades and routine service in crowded control cabinets. IP55 protection and IK08 impact resistance ensure rugged operation in harsh environments, guarding against dust ingress and physical shocks. Business impact: improved uptime, lower warranty costs. Application: factory floors with vibrations, suds, or dusty atmospheres. Powder-coated sheet steel with a 3 mm glazed viewing window delivers durability and clear visibility of internal components. Business impact: reduced maintenance and improved operator oversight. Application: security-conscious installations in production lines. The 600x345x473 mm footprint, 6 U, 600 mm width, and 420 mm installation depth provide standardization for 19" components and easy mounting with front angles. Business impact: predictable fitting, faster sourcing, and scalable cabinet design. Application: IT-ready control panels and automation cabinets in mid-size machines.
Get a Quick Quote for a Rittal 7706135
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7706135?
Enquire Now
FAQs
The enclosure arrives pre-configured with essential mounting rails, gland plate, and wall brackets, plus a hinged door for rapid access. Its 600x345x473 mm footprint and 420 mm installation depth align with common panel layouts, enabling a straightforward retrofit or new install with minimal field assembly and reduced risk of wiring errors.
Yes. The DK 7706.135 provides two 19" mounting angles at the front, enabling secure integration of 19-inch equipment within the 6U enclosure. This compatibility simplifies consolidation of controllers, drives, and peripherals in a single cabinet without separate mounting frames.
The enclosure offers IP55 protection for dust and water ingress resistance and IK08 impact resistance for mechanical robustness. It uses 1.5 mm sheet steel, a powder-coated finish in RAL 7035, and a glazed 3 mm viewing door, providing long-term durability in harsh industrial environments.
Dimensions are Width 600 mm, Height 345 mm, Depth 473 mm, with an installation depth of 420 mm and a 6U unit count. It is designed for depth-variable configurations and includes mounting rails and front angles for easy 19" equipment integration and flexible cable management.
Pre-configured components reduce assembly and commissioning time, lowering labor costs. The rugged IP55/IK08 rating minimizes ingress-related service interruptions, while the hinged door and depth-variable design simplify maintenance access, potentially reducing downtime and extending the interval between routine servicing.
