Rittal DK 7709.135 Enclosure - 9U 600x478 IP55, 3-part
Part Number: 7709135
Manufacturer
Rittal
Part number
7709135
Alt Part Number
DK 7709.135
Quick Summary
Rittal DK 7709.135 wall-mounted enclosure securely houses electrical and automation components for compact control panels. Engineers often struggle with access, cable routing, and lengthy installation in tight spaces; this 3-part design resolves those challenges with a hinged front and depth-variable configuration. It delivers IP55 protection and IK08 impact resistance, aligning with common industry standards while maintaining durable, powder-coated surface finish in RAL 7035. The enclosure also integrates pre-configured rails, gland plate, and mounting hardware to streamline procurement and on-site assembly. For continuous production environments, this solution offers predictable maintenance intervals and reliable long-term performance with minimal downtime.
Product Information
Extended Description

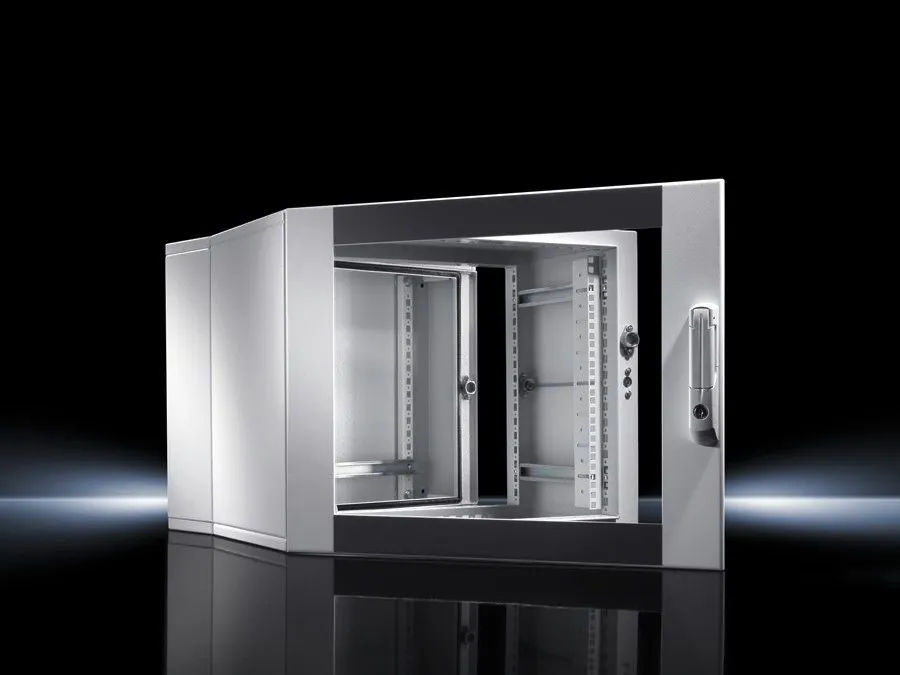

7709135 Rittal: DK Wall-mounted enclosures, 3-part, WHD: 600x478x473 mm, 9 U, With punched rails, and mounting angles, depth-variable
Article number
DK 7709.135
Design
Wall-mounted enclosures IT | with punched rails and mounting angles, depth-variable
Product description
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material
Wall and hinged part: Sheet steel, 1.5 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
General colour
RAL 7035
Colour
Wall and hinged part: RAL 7035 | Glazed door: RAL 7035/7015 (slate grey)
Supply includes
Wall section with solid gland plate, top and bottom, two vertical mounting rails and C rail, horizontal, for cable clamping | Hinged part with 25 mm pitch pattern of holes in the front and rear frame, and two 482.6 mm (19") mounting angles at the front, infinitely depth-variable | 4 wall mounting brackets 10 mm | Designer glazed door | 1 double-kit key no. 5 | Mini-comfort handle for lock inserts | Security lock 3524 E
Units
9 U
Dimensions
Width: 600 mm | Height: 478 mm | Depth: 473 mm
Installation depth
420 mm
Clearances
Clearance width: 502 mm | Clearance height: 415 mm
Depth hinged part
316 mm
Depth of wall section
135 mm
IK Code
IK08
Load capacity of hinged part (static)
450 N
Basic material
Sheet steel
Protection category to IEC 60 529
IP 55
Packs of
1 pc(s).
Weight/pack
31 kg
Customs tariff number
94032080
EAN
4028177324183
ETIM 9
EC000261
ECLASS 8.0
27142408
Product description
DK Wall-mounted enclosures, 3-part, WHD: 600x478x473 mm, 9 U, With punched rails, and mounting angles, depth-variable
Feature → Business Impact → Application: The DK 7709.135 arrives pre-configured with a solid gland plate, top and bottom plates, punched rails, vertical mounting rails, and an open-front design that simplifies wiring and routing, reducing installation time and error rates on new machine builds or panel upgrades. This translates to faster project kickoffs and lower labor costs on the shop floor, especially in high-mix manufacturing environments. Feature → Business Impact → Application: Depth-variable hinged part and front mounting angles enable flexible cable management and easy access to internal components, improving serviceability and reducing maintenance cycles in confined control cabinets across robotics cells and packaging lines. Feature → Business Impact → Application: The 9U, 600x478x473 mm footprint, with 600 mm width and 473 mm depth, provides ample internal area for standard 19" equipment thanks to two front 482.6 mm (19”) mounting angles, supporting scalable I/O expansion without enclosure replacement. Feature → Business Impact → Application: IP55 protection and IK08 impact resistance offer robust performance in dusty or damp factory floors and harsh environments, ensuring compliance with typical industry safety requirements while lowering the risk of downtime due to environmental exposure. Feature → Business Impact → Application: Powder-coated finish in RAL 7035 safeguards exterior integrity in long-term use, reducing repaint cycles and preserving aesthetics in customer-forward machinery and machinery-enclosures used in OEM builds and maintenance contracts. Feature → Business Impact → Application: The included components (gland plate, rails, door, and security hardware) enable immediate installation readiness, minimizing procurement delays and ensuring consistent product quality across large-rollouts in automotive, packaging, or material handling industries.
Get a Quick Quote for a Rittal 7709135
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7709135?
Enquire Now
FAQs
The DK 7709.135 ships with a wall section, solid gland plate, top and bottom plates, two vertical mounting rails, and a front 19" mounting angle system. Installation depth is 420 mm, with overall external dimensions of 600x478x473 mm and a 9U height. Weight per pack is 31 kg, and the unit includes a designer glazed door and security lock for secure operation.
Yes. The enclosure includes two vertical mounting rails and 19" mounting angles at the front, enabling straightforward mounting of standard telecommunication, control, and automation hardware. The depth-variable hinged front also facilitates cable management around installed 19" equipment, reducing assembly time and improving serviceability.
External dimensions are width 600 mm, height 478 mm, and depth 473 mm. Clearances provide 502 mm of width and 415 mm of height inside the enclosure. Installation depth is 420 mm, and the unit offers 9U of space. These measurements support typical 19" equipment layouts while maintaining accessible serviceability.
The enclosure ships with a solid gland plate, top and bottom plates, punched rails, vertical mounting rails, and a front hinged part with a 25 mm pitch hole pattern. These features enable organized cabling, straightforward entry/exit points, and rapid removal or upgrades, reducing downtime during maintenance and expansion in automated and electro-mechanical systems.
Durability is supported by IP55 protection and IK08 impact resistance, safeguarding against dust and mechanical shocks in industrial environments. The powder-coated finish in RAL 7035 enhances longevity, while a designer glazed door and security lock (3524 E) provide controlled access. The 9U capacity and included mounting hardware support secure, scalable installations for OEM and end-user applications.
