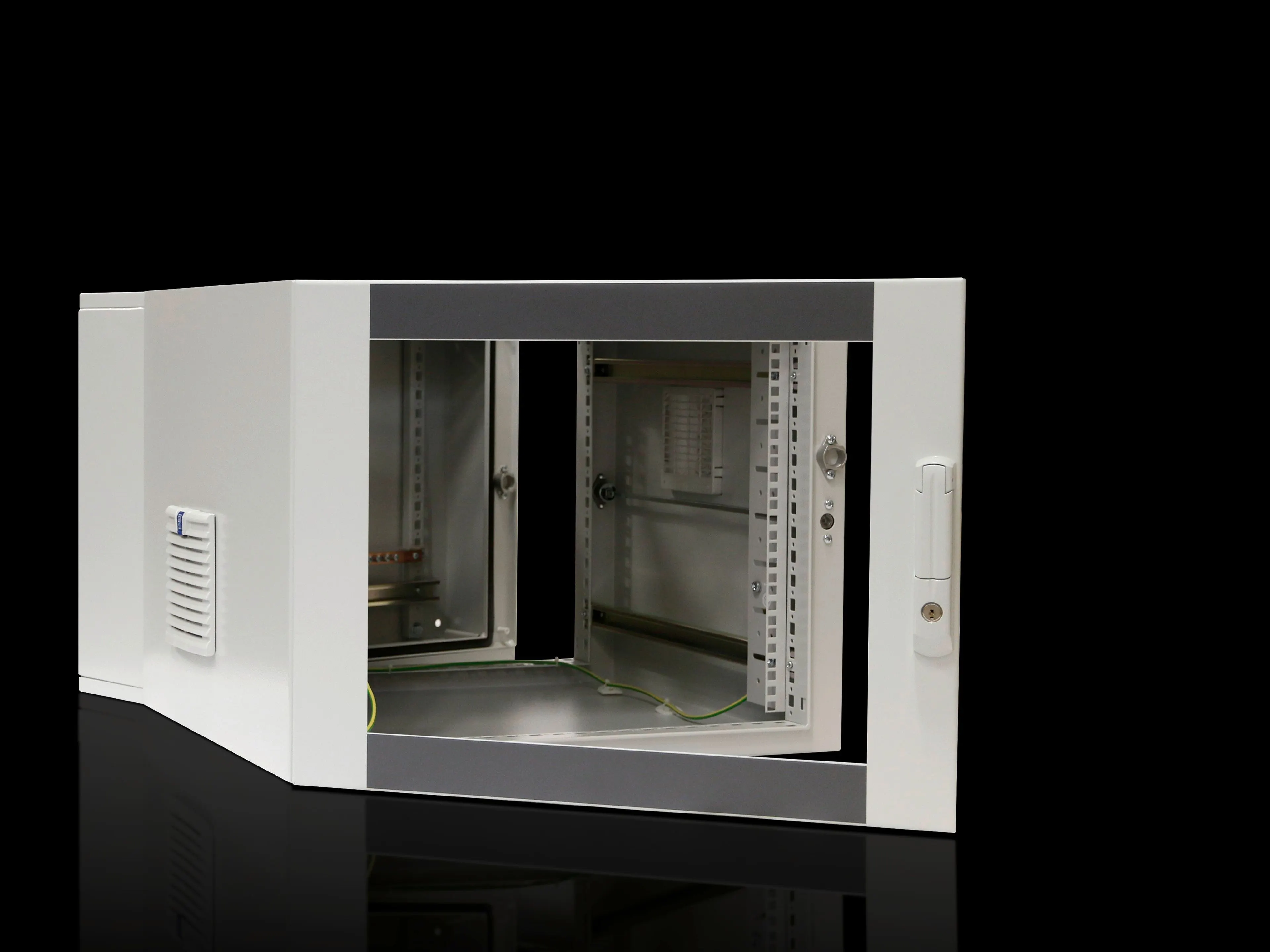

Rittal 7709535 Wall-mounted enclosure - IP 54

The DK 7709.535 wall-mounted enclosure employs a three-part design with a hinged front for exceptional accessibility. This feature dramatically reduces maintenance time because technicians can service components without dismantling entire assemblies. In busy production environments, such quick access improves uptime and supports rapid upgrades to control and electrical gear. Pre-configured mounting rails and a depth-variable hinged section simplify installation and ensure consistent alignment across projects. For system integrators, the ready-to-install configuration shortens commissioning windows and minimizes rework in IT and electrical cabinet deployments. The enclosure is sized at 9U with 600x478x673 mm footprint, making it versatile for mid-size control panels. IP54 protection, in conjunction with solid gland plates at top and bottom, delivers reliable ingress protection in industrial surroundings. IK08 impact resistance complements the protective package, guarding critical electronics against physical shocks during handling and operation. Constructed from 1.5 mm sheet steel with a powder-coated finish in RAL 7035, it withstands factory dust and moisture. A glazed 3 mm viewing window provides quick status checks without compromising security or enclosure integrity. Key dimensions—600 mm width, 478 mm height, 673 mm depth—coupled with a 135 mm wall section depth and 620 mm installation depth—facilitate planning. The enclosure supports 9U of equipment with a 450 N load capacity on the hinged part, supporting heavier control components. Cable management is built in with two vertical mounting rails, a C rail, and horizontal cable clamping, plus left-right side outlet filters. Earth rail, two 482.6 mm (19 in) mounting angles at the front, a reinforced wall bracket, plus the designer glazed door and 3524 E lock elevate safety and reliability.
