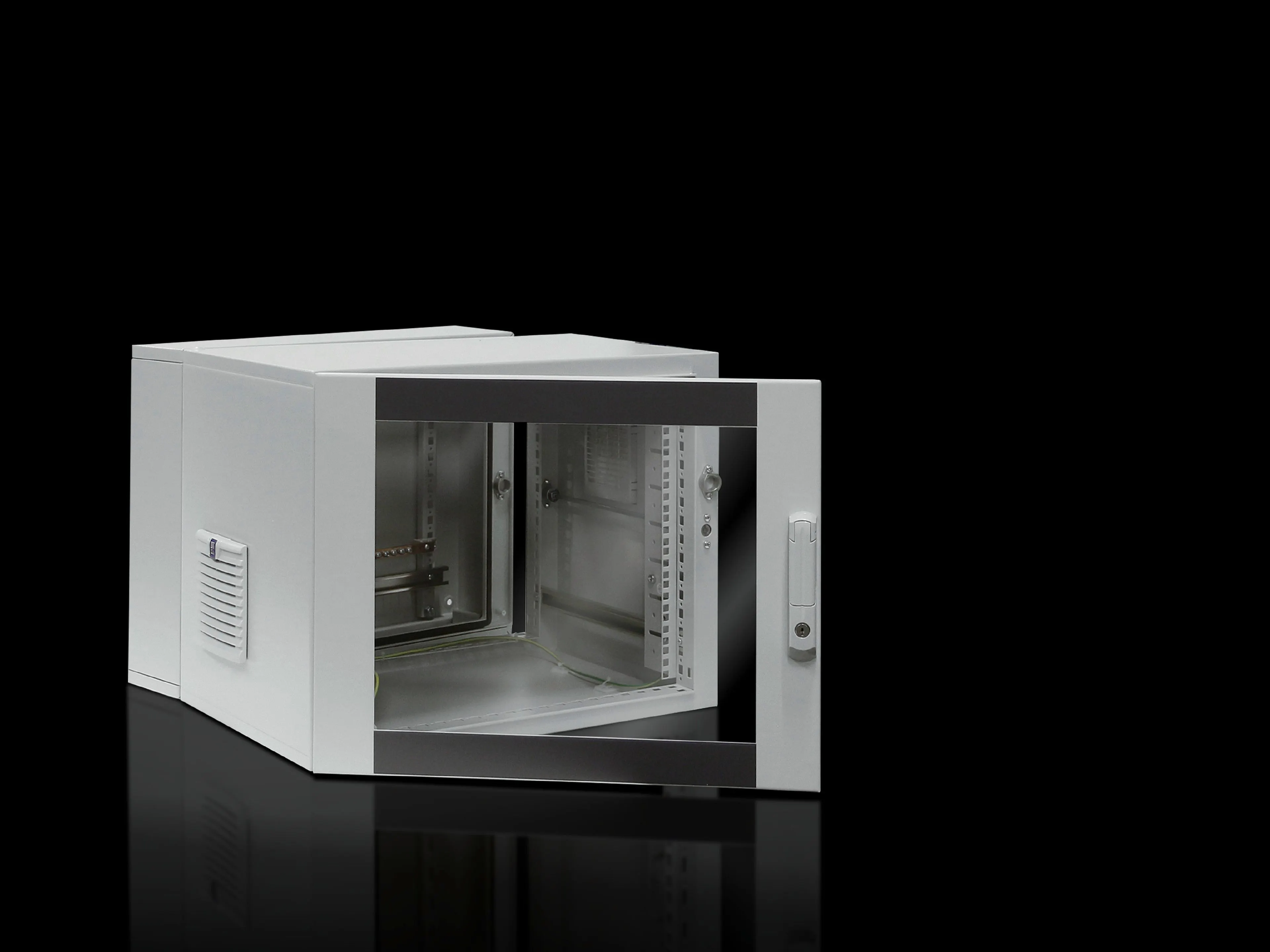

Rittal Wall-mounted Enclosure DK 7709.735 - IP54
Part Number: 7709735
Manufacturer
Rittal
Part number
7709735
Alt Part Number
DK 7709.735
Quick Summary
Rittal wall-mounted enclosure DK 7709.735 protects electrical controls in compact industrial cabinets. This 3‑part, pre-assembled enclosure is designed for efficient access and reliable service in constrained spaces. Engineers face wiring congestion and limited mounting depth; a depth-variable hinged part and 9 U of space help mitigate that. With IP 54 protection in conjunction with top and bottom solid gland plates, IK08 impact resistance, and CE conformity where applicable, the unit meets contemporary industrial standards. The solution also integrates 19" mounting rails, earth rail, and cable-clamping options, supporting faster installation and ongoing maintenance. In practice, it reduces footprint without compromising accessibility or safety, delivering predictable lifecycle cost and improved uptime for panel builders and machine integrators.
Product Information
Extended Description
7709735 Rittal: DK Wall-mounted enclosure, 3-part, WxHxD: 600x478x573 mm, 9 U, pre-assembled, IP 54 with solid gland plate top and bottom
Article number
DK 7709.735
Design
Wall-mounted enclosures IT | pre-configured with mounting angles, depth-variable
Product description
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material
Wall and hinged part: Sheet steel, 1.5 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
General colour
RAL 7035
Colour
Wall and hinged part: RAL 7035 | Glazed door: RAL 7035/7015 (slate grey)
Supply includes
Wall section with solid gland plate at the top and brush strip at the bottom, two vertical mounting rails and C rail, horizontal, for cable clamping | Hinged part with 25 mm pitch pattern of holes in the front and rear frame, two 482.6 mm (19") mounting angles at the front, infinitely depth-variable, and side outlet filters on the left and right | Earth rail with star earthing | Designer glazed door | 1 double-kit key no. 5 | Wall mounting bracket, 10 mm | Mini-comfort handle for lock inserts | Security lock 3524 E
Units
9 U
Dimensions
Width: 600 mm | Height: 478 mm | Depth: 573 mm
Installation depth
520 mm
Clearances
Clearance width: 502 mm | Clearance height: 415 mm
Depth hinged part
416 mm
Depth of wall section
135 mm
IK Code
IK08
Load capacity of hinged part (static)
450 N
Basic material
Sheet steel
Protection category to IEC 60 529
IP 54 in conjunction with solid gland plate top and bottom
Packs of
1 pc(s).
Weight/pack
35 kg
Customs tariff number
94032080
EAN
4028177324237
ETIM 9
EC000261
ECLASS 8.0
27142408
Product description
DK Wall-mounted enclosure, 3-part, WxHxD: 600x478x573 mm, 9 U, pre-assembled, IP 54 with solid gland plate top and bottom
Feature: The enclosure is a 3‑part design with a hinged front for optimum accessibility. Business Impact: Faster servicing, easier diagnostics, and safer maintenance. Application: Machine controls and IT panels in restricted spaces. Feature: Depth-variable hinged part with a 25 mm pitch hole pattern and two 482.6 mm (19") mounting angles. Business Impact: Flexible cable routing and future expansion without replacing the cabinet. Application: Industrial automation cabinets and control panels. Feature: Pre-configured with wall section, solid gland plate at the top, brush strip at the bottom, mounting rails, C rails, and earth rail. Business Impact: Reduces on-site assembly time and sourcing complexity. Application: Turnkey panel builds and system integration projects. Feature: IP 54 protection (with gland plates) and IK08 impact resistance on a sheet steel enclosure finished in powder coating. Business Impact: Robust performance in dusty or humid environments with long service life. Application: Factory floors, machine enclosures, and controlled environments. Feature: 9 U capacity, dimensions 600 x 478 x 573 mm, 600 mm width with 520 mm installation depth and 502 mm clearance width. Business Impact: Standardized footprint supports common components and easier CAD/configuration. Application: 19" rack‑mountable equipment and control electronics in a compact footprint.
Get a Quick Quote for a Rittal 7709735
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7709735?
Enquire Now
FAQs
The enclosure provides clearances of 502 mm in width and 415 mm in height, with a 600x478x573 mm exterior and 9 U of space. It includes two 19" mounting angles and side clamping options, plus depth-variable features to accommodate cables and future upgrades.
Yes. It carries IP 54 protection in conjunction with solid gland plates at the top and bottom, plus IK08 impact resistance, making it suitable for dusty factory floors and moderate splash environments while keeping internal components protected.
It features two vertical mounting rails and a broad 19" mounting framework, with 25 mm pitch holes on the hinged part front and rear frames, enabling flexible cabling, component placement, and easy integration of standard IT and control hardware.
It meets IEC IP 54 protection, IK08 impact resistance, and CE conformity where applicable. It is also listed with ETIM EC000261 and ECLASS 27142408, which supports interoperability and procurement data accuracy in B2B catalogs.
Pre-configured rails, glands, and a depth-variable hinged part reduce assembly time and field adaptation costs, while the robust IP/IK protection minimizes downtime and maintenance, delivering lower lifecycle costs and faster project delivery for machine builders.
