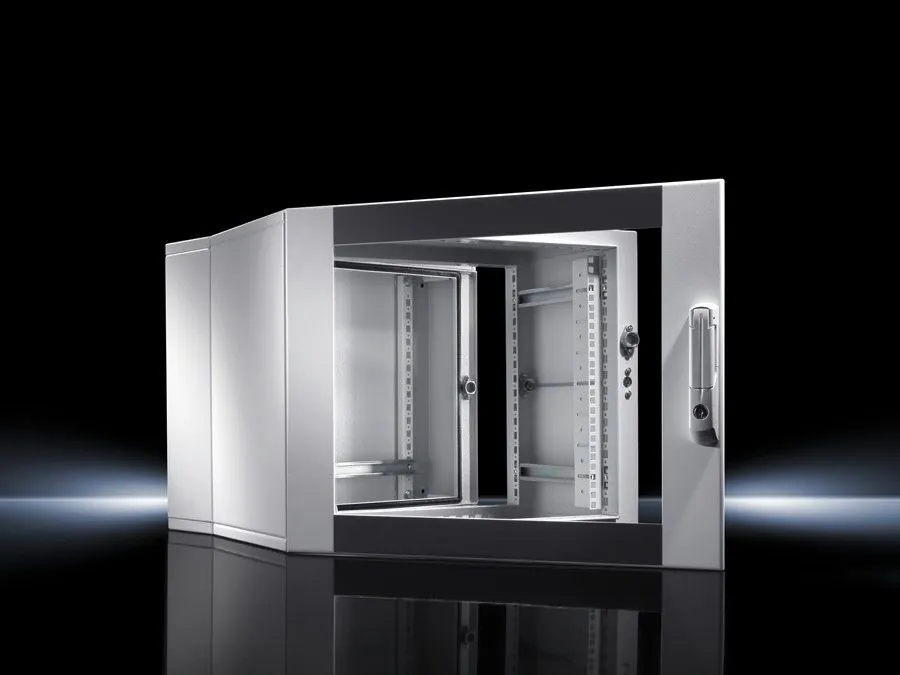

Rittal DK 7712.135 Wall-mounted enclosure - IP55
Part Number: 7712135
Manufacturer
Rittal
Part number
7712135
Alt Part Number
DK 7712.135
Quick Summary
Wall-mounted enclosure DK 7712.135 from Rittal provides secure housing for electrical components in control panels. When space is tight, accessible wiring and cable routing can become a bottleneck; this enclosure simplifies both with a hinged front part and depth-variable design. IP 55 protection and IK08 impact resistance help it withstand demanding industrial environments, while the powder-coated finish in RAL 7035 ensures long-term durability. Built around 12 U of space with punched rails, 19-inch mounting angles, and a wall section ready for gland plates, it offers rapid installation and scalable configuration for growing automation and electrical infrastructure needs.
Product Information
Extended Description
7712135 Rittal: DK Wall-mounted enclosures, 3-part, WHD: 600x612x473 mm, 12 U, With punched rails, and mounting angles, depth-variable
Article number
DK 7712.135
Design
Wall-mounted enclosures IT | with punched rails and mounting angles, depth-variable
Product description
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material
Wall and hinged part: Sheet steel, 1.5 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
General colour
RAL 7035
Colour
Wall and hinged part: RAL 7035 | Glazed door: RAL 7035/7015 (slate grey)
Supply includes
Wall section with solid gland plate, top and bottom, two vertical mounting rails and C rail, horizontal, for cable clamping | Hinged part with 25 mm pitch pattern of holes in the front and rear frame, and two 482.6 mm (19") mounting angles at the front, infinitely depth-variable | 4 wall mounting brackets 10 mm | Designer glazed door | 1 double-kit key no. 5 | Mini-comfort handle for lock inserts | Security lock 3524 E
Units
12 U
Dimensions
Width: 600 mm | Height: 612 mm | Depth: 473 mm
Installation depth
420 mm
Clearances
Clearance width: 502 mm | Clearance height: 549 mm
Depth hinged part
316 mm
Depth of wall section
135 mm
IK Code
IK08
Load capacity of hinged part (static)
600 N
Basic material
Sheet steel
Protection category to IEC 60 529
IP 55
Packs of
1 pc(s).
Weight/pack
36 kg
Customs tariff number
94032080
EAN
4028177324190
ETIM 9
EC000261
ECLASS 8.0
27142408
Product description
DK Wall-mounted enclosures, 3-part, WHD: 600x612x473 mm, 12 U, With punched rails, and mounting angles, depth-variable
Feature → Business Impact → Application: The 3-part, depth-variable design enables flexible installation and easy access to inside components, reducing commissioning time and field modifications, which translates to lower startup costs and faster maintenance in control cabinets and machinery housings. This improves reliability for automation projects that require quick upgrades or changes to I/O and drives while maintaining safe and orderly cable management. Application: machine control panels and process automation cabinets. Feature → Business Impact → Application: IP 55 protection and IK08 impact resistance provide rugged enclosure performance in harsh environments, minimizing component exposure to dust, water ingress, and shocks, which lowers spares and downtime. Application: outdoor or semi-exposed industrial installations and weather-protected areas. Feature → Business Impact → Application: Hinged part with a 25 mm pitch front/rear hole pattern and 482.6 mm (19”) mounting angles streamline equipment mounting and future reconfigurations, reducing installation time and enabling straightforward retrofits. Application: PLCs, drives, and I/O modules in 19-inch rack-supported enclosures. Feature → Business Impact → Application: 600 N load capacity of the hinged part ensures secure door operation under full assembly weight, supporting heavier electronic assemblies without risk of sag or misalignment. Application: high-density control panels and power distribution cabinets. Feature → Business Impact → Application: Supplied with punched rails and C rails for cable clamping, plus a solid gland plate, top and bottom plates, and four wall mounting brackets, which simplifies wiring and protects cable runs. Application: clean, organized cable management in IT/automation enclosures. Feature → Business Impact → Application: Designer glazed door and security lock provide visibility and access control, reducing tampering risk and enabling quick status checks without compromising security. Application: energy and process industries where frequent monitoring is required.
Get a Quick Quote for a Rittal 7712135
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7712135?
Enquire Now
FAQs
This enclosure ships with a wall section, solid gland plate, top and bottom plates, two vertical mounting rails, C rail, front and rear 19" mounting angles, and four wall brackets. Plan for an installation depth of 420 mm and ensure clearances of 502 mm width and 549 mm height to accommodate 12U of equipment and easy cable routing.
The front and rear frame include 25 mm pitch holes and 482.6 mm (19") mounting angles, enabling straightforward mounting of standard 19" hardware such as PLCs, drives, and I/O modules without additional adapters.
It features IP 55 protection for dust and water ingress resistance and IK08 impact resistance, along with a powder-coated steel body and a glazed viewing door for visibility of internal components.
Yes. Its 12U capacity, depth-variable hinged part, punched rails, and secure locking system make it ideal for control panels, automation cabinets, and IT rack integrations in industrial environments.
The hinged access, standardized 19" mounting options, and modular gland plate/rack components reduce upgrade time and field modifications, lowering downtime costs and improving long-term total cost of ownership.
