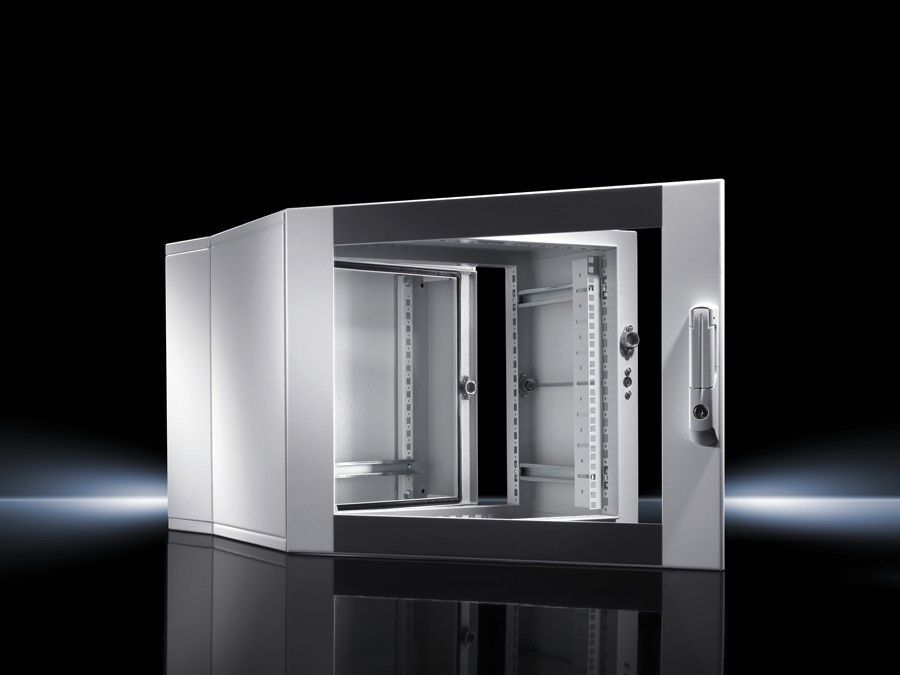

Rittal DK 7715.135 Wall-mounted Enclosure - IP 55
Part Number: 7715135
Manufacturer
Rittal
Part number
7715135
Alt Part Number
DK 7715.135
Quick Summary
Rittal DK 7715.135 Wall-mounted Enclosure protects control panels and electrical components in industrial environments. Engineers often wrestle with limited access, messy wiring, and ensuring robust protection in tight spaces. It delivers IP 55 ingress protection and IK08 impact resistance to withstand dust, moisture, and physical handling. Part of Rittal's enclosures & electrical infrastructure family, it offers depth-variable mounting and straightforward installation, reducing commissioning time. The three-part design supports quick service and easy access to internal components, while the glazed door provides visibility without compromising security. This enclosure integrates with standard 19-inch equipment and common control architectures, delivering scalable protection and improved reliability for plant-wide electrical infrastructure.
Product Information
Extended Description
7715135 Rittal: DK Wall-mounted enclosures, 3-part, WHD: 600x746x473 mm, 15 U, With punched rails, and mounting angles, depth-variable
Article number
DK 7715.135
Design
Wall-mounted enclosures IT | with punched rails and mounting angles, depth-variable
Product description
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material
Wall and hinged part: Sheet steel, 1.5 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
General colour
RAL 7035
Colour
Wall and hinged part: RAL 7035 | Glazed door: RAL 7035/7015 (slate grey)
Supply includes
Wall section with solid gland plate, top and bottom, two vertical mounting rails and C rail, horizontal, for cable clamping | Hinged part with 25 mm pitch pattern of holes in the front and rear frame, and two 482.6 mm (19") mounting angles at the front, infinitely depth-variable | 4 wall mounting brackets 10 mm | Designer glazed door | 1 double-kit key no. 5 | Mini-comfort handle for lock inserts | Security lock 3524 E
Units
15 U
Dimensions
Width:Â 600 mm | Height:Â 746 mm | Depth:Â 473 mm
Installation depth
420 mm
Clearances
Clearance width:Â 502 mm | Clearance height:Â 683 mm
Depth hinged part
316 mm
Depth of wall section
135 mm
IK Code
IK08
Load capacity of hinged part (static)
750 N
Basic material
Sheet steel
Protection category to IEC 60 529
IP 55
Packs of
1 pc(s).
Weight/pack
41 kg
Customs tariff number
94032080
EAN
4028177324206
ETIM 9
EC000261
ECLASS 8.0
27142408
Product description
DK Wall-mounted enclosures, 3-part, WHD: 600x746x473 mm, 15 U, With punched rails, and mounting angles, depth-variable
Feature: Three-part wall-mounted design with hinged front, depth-variable mounting, and 15 U interior. Business impact: Improves accessibility, simplifies wiring and maintenance, and supports modular upgrades without replacing the cabinet. Application: Ideal for control panels and machine interfaces in space-constrained environments while maintaining clean cable routing. Feature: Powder-coated sheet steel construction with a 1.5 mm backbone and a 3 mm safety glass viewing window. Business impact: Delivers durable protection against dust, moisture, and mechanical wear, reducing downtime and replacement costs. Application: Suitable for production floors and wash-down areas where enclosure integrity matters. Feature: IP 55 and IK08 protection with a reinforced front and back frame. Business impact: Ensures reliable operation in harsh plant conditions, supporting regulatory compliance and long service life. Application: Factory automation, power distribution, and panel assembly environments. Feature: Depth-variable design with 420 mm installation depth and 316 mm depth hinge. Business impact: Enables precise fit for complex internal layouts and easier retrofits, cutting installation time by streamlining component placement. Application: Cabling-intensive control cabinets and custom equipment racks. Feature: Pre-configured includes: punched rails, mounting angles, gland plates, and 19-inch front supports. Business impact: Accelerates project timelines, reduces field engineering, and improves install accuracy. Application: Fast-track deployments in new lines or expansions across industrial facilities.
Get a Quick Quote for a Rittal 7715135
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7715135?
Enquire Now
FAQs
The enclosure requires a 420 mm installation depth, with a 135 mm wall section and a 316 mm hinged part depth. Overall its footprint is 600x746x473 mm (WHD). The depth-variable design accommodates different internal components and cable routing, helping ensure a clean, serviceable installation.
Yes. It includes two 482.6 mm (19”) front mounting angles and punched rails with a 25 mm pitch on the hinged door for front and rear access. Combined with top and bottom gland plates and cable clamping rails, it supports standard 19-inch equipment while maintaining orderly cable management and straightforward servicing.
Yes. The enclosure provides IP 55 protection against dust and water jets and IK08 impact resistance, enabling reliable operation on shop floors or outdoor installations. Its powder-coated sheet steel construction and safety glass door contribute to durability and long service life in demanding environments.
Included accessories cover immediate setup: wall section with solid gland plate, top and bottom plates, two vertical mounting rails and a C rail for cable management, plus the hinged part with 25 mm pitch holes in front and rear. Also included are four 10 mm wall brackets, two 19-inch mounting angles, a designer glazed door, and security lock with keys.
Yes. The depth-variable design and modular internals allow straightforward reconfigurations to fit evolving controls, IoT modules, or additional I/O. With adjustable depth, punched rails, and standard 19-inch mounting, you can adapt without replacing the cabinet, reducing hardware waste and downtime during upgrades.
