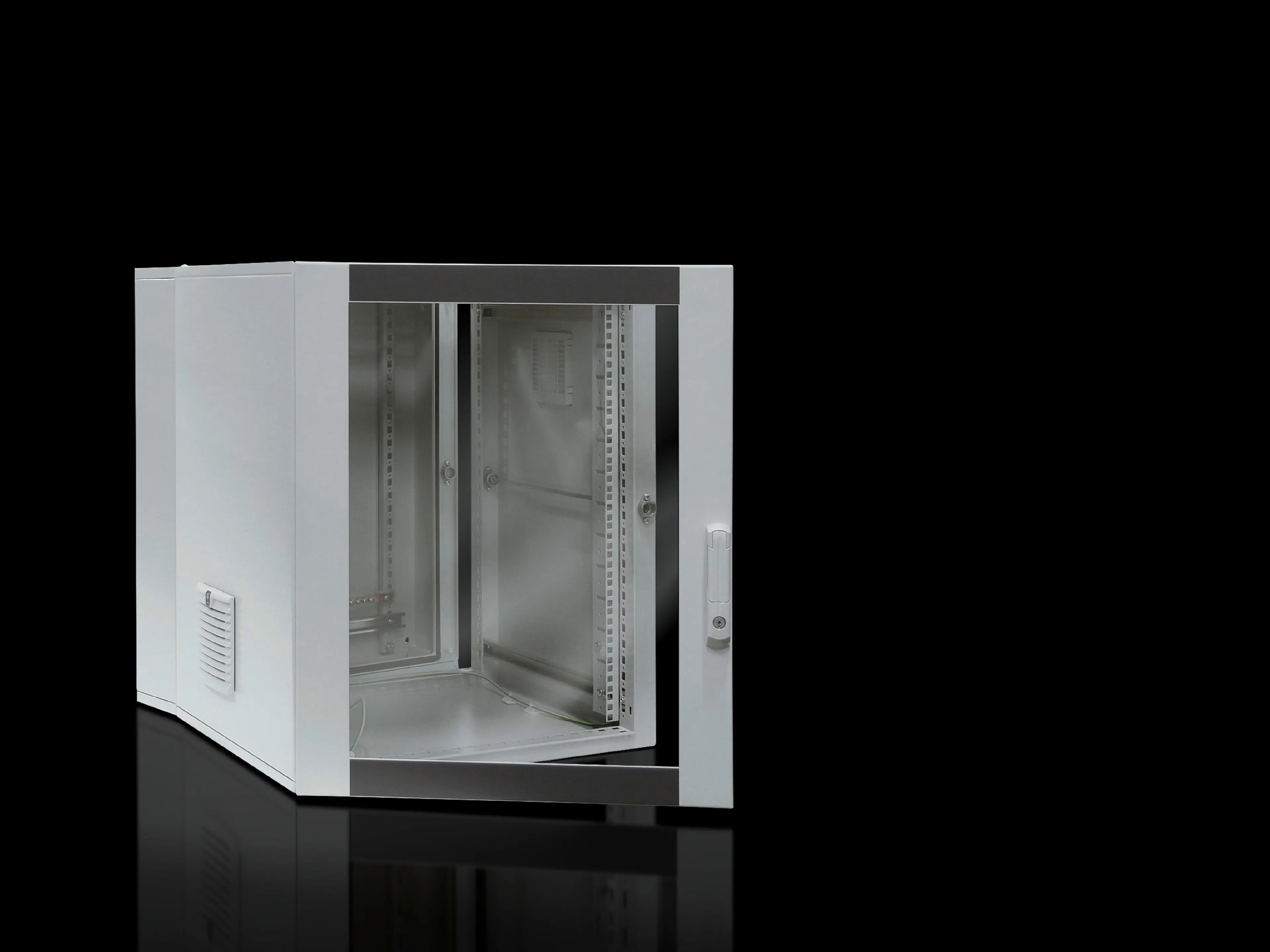

Rittal DK 7715.735 Wall-Mounted Enclosure - IP54
Part Number: 7715735
Manufacturer
Rittal
Part number
7715735
Alt Part Number
DK 7715.735
Quick Summary
Rittal DK 7715.735 wall-mounted enclosure protects electrical gear in control panels across industrial environments. Yet assembly and maintenance can be slowed by fragmented configurations and difficult access. This model delivers IP54 protection with solid gland plates top and bottom and IK08 impact resistance in a pre-assembled 3-part design with depth-variable flexibility and a hinged access. The cabinet’s 15 U capacity, powder-coated finish in RAL 7035, and built-in 19" mounting rails simplify installation while ensuring consistent, compliant enclosure performance. By reducing on-site assembly time and streamlining cable management, it delivers tangible business value through faster project completion, lower service costs, and predictable maintenance across automation infrastructure.
Product Information
Extended Description
7715735 Rittal: DK Wall-mounted enclosure, 3-part, WxHxD: 600x746x573 mm, 15 U, pre-assembled, IP 54 with solid gland plate top and bottom
Article number
DK 7715.735
Design
Wall-mounted enclosures IT | pre-configured with mounting angles, depth-variable
Product description
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material
Wall and hinged part: Sheet steel, 1.5 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
General colour
RAL 7035
Colour
Wall and hinged part: RAL 7035 | Glazed door: RAL 7035/7015 (slate grey)
Supply includes
Wall section with solid gland plate at the top and brush strip at the bottom, two vertical mounting rails and C rail, horizontal, for cable clamping | Hinged part with 25 mm pitch pattern of holes in the front and rear frame, two 482.6 mm (19") mounting angles at the front, infinitely depth-variable, and side outlet filters on the left and right | Earth rail with star earthing | Designer glazed door | 1 double-kit key no. 5 | Wall mounting bracket, 10 mm | Mini-comfort handle for lock inserts | Security lock 3524 E
Units
15 U
Dimensions
Width: 600 mm | Height: 746 mm | Depth: 573 mm
Installation depth
520 mm
Clearances
Clearance width: 502 mm | Clearance height: 683 mm
Depth hinged part
416 mm
Depth of wall section
135 mm
IK Code
IK08
Load capacity of hinged part (static)
750 N
Basic material
Sheet steel
Protection category to IEC 60 529
IP 54 in conjunction with solid gland plate top and bottom
Packs of
1 pc(s).
Weight/pack
45 kg
Customs tariff number
94032080
EAN
4028177324244
ETIM 9
EC000261
ECLASS 8.0
27142408
Product description
DK Wall-mounted enclosure, 3-part, WxHxD: 600x746x573 mm, 15 U, pre-assembled, IP 54 with solid gland plate top and bottom
Feature: Pre-configured 3-part design reduces commissioning time and minimizes field wiring errors → Business Impact: Faster time-to-install, lower labor and project risk → Application: New machine builds and control panel installations in manufacturing environments. Feature: IP54 protection with solid gland plates top and bottom and IK08 impact resistance → Business Impact: Enhanced dust ingress protection and mechanical durability, lowering field service events → Application: Harsh industrial and process environments where reliable enclosure integrity matters. Feature: Depth-variable hinged part with a 25 mm pitch hole pattern and rear/front mounting angles → Business Impact: Flexible, scalable wiring layouts and easy future expansion without replacing the cabinet → Application: Control systems requiring modular cabling and straightforward upgrades. Feature: 19" mounting rails, side cable clamping, and earth rail with star earthing → Business Impact: Standardized gear mounting and improved safety, reducing rework during panel assembly → Application: Standardized electrical infrastructure across automation projects. Feature: Powder-coated sheet steel (1.5 mm) with a 3 mm viewing window in safety glass and RAL 7035 color → Business Impact: Durable external finish with clear visibility for diagnostics, lowering maintenance downtime → Application: Enclosures exposed to frequent inspections and process monitoring. Feature: Overall dimensions 600 x 746 x 573 mm (15 U) and IP54 rating in conjunction with solid gland plates → Business Impact: Predictable footprint and performance for cabinet layouts, simplifying planning and procurement → Application: Data/comms and control gear housing in industrial automation cabinets.
Get a Quick Quote for a Rittal 7715735
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7715735?
Enquire Now
FAQs
The enclosure provides clearances of 502 mm in width and 683 mm in height to accommodate front door access and serviceability, with an installation depth of 520 mm. Plan additional space for wiring harnesses and cable clamps to ensure easy access during maintenance and future upgrades.
Yes. It includes two front mounting angles at 482.6 mm (19") spacing, plus infinitely depth-variable rear and front mounting options via a 25 mm pitch pattern. This supports standard 19" equipment and flexible cabling layouts, reducing the need for custom adapters and improving machine upgradeability.
The enclosure features IP54 protection with solid gland plates on top and bottom and IK08 impact resistance. The body is made from 1.5 mm sheet steel with a 3 mm safety glass viewing window, powder-coated in RAL 7035 for durability in harsh environments.
Yes. The hinged part is depth-variable, allowing flexible cable routing and future expansion without replacing the cabinet. This design supports ongoing changes in electrical gear without new enclosures, reducing downtime and procurement cycles.
Pre-assembled construction reduces onsite assembly time and field wiring errors, while standardized 19" mounting, earth rail, and cable clamping improve safety and serviceability. The result is faster project completion, lower labor costs, and predictable lifecycle performance for automation and control systems.
