Rittal 7721135 Wall-Mounted Enclosure - IP 55
Part Number: 7721135
Manufacturer
Rittal
Part number
7721135
Alt Part Number
DK 7721.135
Quick Summary
Wall-mounted enclosures DK 7721.135 provide secure, accessible housing for electrical controls in industrial panels. On-site wiring often suffers from limited access and depth constraints, slowing maintenance and increasing error risk. These ratings—IP 55 protection and IK08 impact resistance—coupled with a depth-variable hinged part, streamline service and future upgrades. Powder-coated sheet steel and a glazed door help ensure long-term reliability, while the 21 U interior supports a range of PLCs, drives, and terminal blocks. For procurement and install teams, the pre-configured package reduces field assembly time and guarantees consistent quality across panels, delivering lower total cost of ownership. Finally, the enclosure's compatibility with standard 19-inch equipment and punched rails supports scalable, modular automation architectures.
Product Information
Extended Description

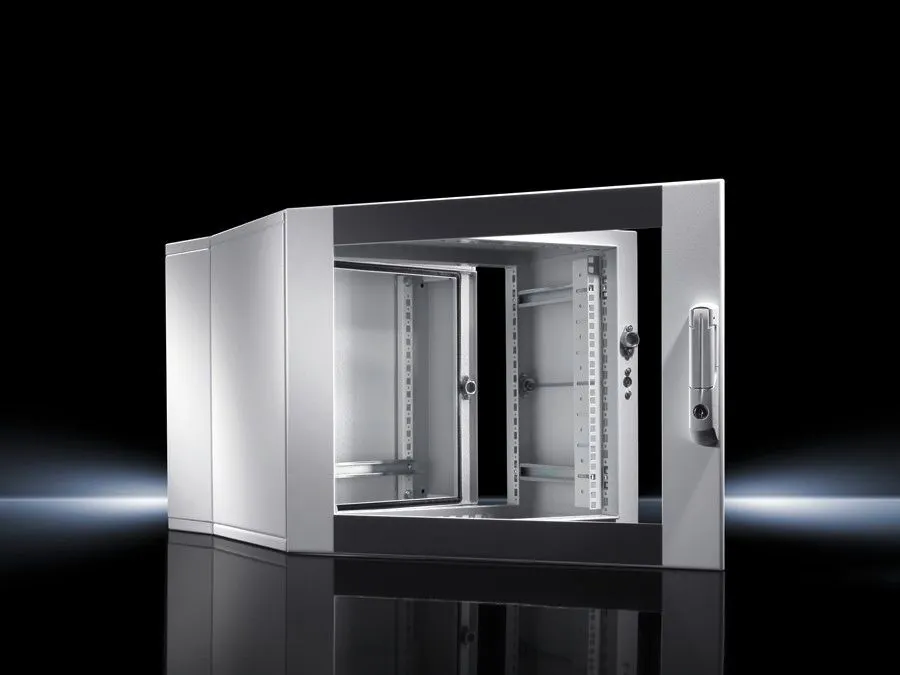

7721135 Rittal: DK Wall-mounted enclosures, 3-part, WHD: 600x1012x473 mm, 21 U, With punched rails, and mounting angles, depth-variable
Article number
DK 7721.135
Design
Wall-mounted enclosures IT | with punched rails and mounting angles, depth-variable
Product description
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material
Wall and hinged part: Sheet steel, 1.5 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
General colour
RAL 7035
Colour
Wall and hinged part: RAL 7035 | Glazed door: RAL 7035/7015 (slate grey)
Supply includes
Wall section with solid gland plate, top and bottom, two vertical mounting rails and C rail, horizontal, for cable clamping | Hinged part with 25 mm pitch pattern of holes in the front and rear frame, and two 482.6 mm (19") mounting angles at the front, infinitely depth-variable | 4 wall mounting brackets 10 mm | Designer glazed door | 1 double-kit key no. 5 | Security lock 3524 E | Comfort handle for lock inserts and 2-point locking
Units
21 U
Dimensions
Width: 600 mm | Height: 1,012 mm | Depth: 473 mm
Installation depth
420 mm
Clearances
Clearance width: 502 mm | Clearance height: 949 mm
Depth hinged part
316 mm
Depth of wall section
135 mm
IK Code
IK08
Load capacity of hinged part (static)
750 N
Basic material
Sheet steel
Protection category to IEC 60 529
IP 55
Packs of
1 pc(s).
Weight/pack
49 kg
Customs tariff number
94032080
EAN
4028177324220
ETIM 9
EC000261
ECLASS 8.0
27142408
Product description
DK Wall-mounted enclosures, 3-part, WHD: 600x1012x473 mm, 21 U, With punched rails, and mounting angles, depth-variable
The three-part DK wall-mounted design with a depth-variable hinged section directly improves serviceability by allowing technicians to access mounted components without removing the entire enclosure, reducing maintenance time and downtime in automation cabinets. This translates to measurable efficiency gains on busy production lines and enables rapid upgrades as control logic evolves. Internally, 21 U of space in a compact 600x1012x473 mm footprint accommodates common PLCs, drives, and terminal assemblies, while punched rails and front-rear 25 mm pitch holes simplify cable routing and block mounting, cutting installation labor and ensuring clean, compliant wiring layouts for robust industrial IT infrastructure. The IP 55, IK08-rated enclosure, powder-coated in RAL 7035 with a designer glazed door, guards against dust and impact while preserving visibility and security in demanding environments, supporting reliable operation of automated processes. Pre-installed mounting angles, solid gland plate, and two front 19" mounting brackets streamline field assembly, reduce part count, and lower total project risk for panel builders and integrators. Together, these features enable scalable, modular control cabinets that align with industry standards for IT and automation deployment, reducing both risk and total cost of ownership.
Get a Quick Quote for a Rittal 7721135
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7721135?
Enquire Now
FAQs
The enclosure includes two front 482.6 mm (19 in) mounting angles and pre-fitted punched rails, enabling straightforward integration of standard PLCs, drives, and terminal blocks. With 25 mm pitch front and rear holes, you can mount common 19-inch equipment without additional adapters, reducing install time and ensuring secure alignment.
Installation depth is 420 mm, with overall dimensions 600x1012x473 mm. Clearance width is 502 mm and clearance height is 949 mm, providing ample room for cable entry, gland plates, and rear wiring. This helps maintain proper airflow and simplifies cable clamping for reliable operation in automated systems.
Yes, the enclosure is IP55 protected, guarding against dust ingress and water spray, and has IK08 impact resistance for robust mechanical protection. This combination is suitable for demanding factory floors and outdoor-adjacent installations where dust, moisture, and incidental impacts are considerations.
The DK 7721.135 includes a security lock with a comfort handle and 2-point locking, plus a double-kit key. The glazed door provides visibility while maintaining security, helping compliant access control for regulated environments and reducing the risk of tampering.
Pre-configured with gland plates, rails, mounting angles, and wall brackets, this enclosure minimizes field assembly time and part counts. The depth-variable hinged door simplifies upgrades, while durable powder-coated sheet steel extends service intervals, lowering maintenance costs and accelerating time-to-value for automation projects.
