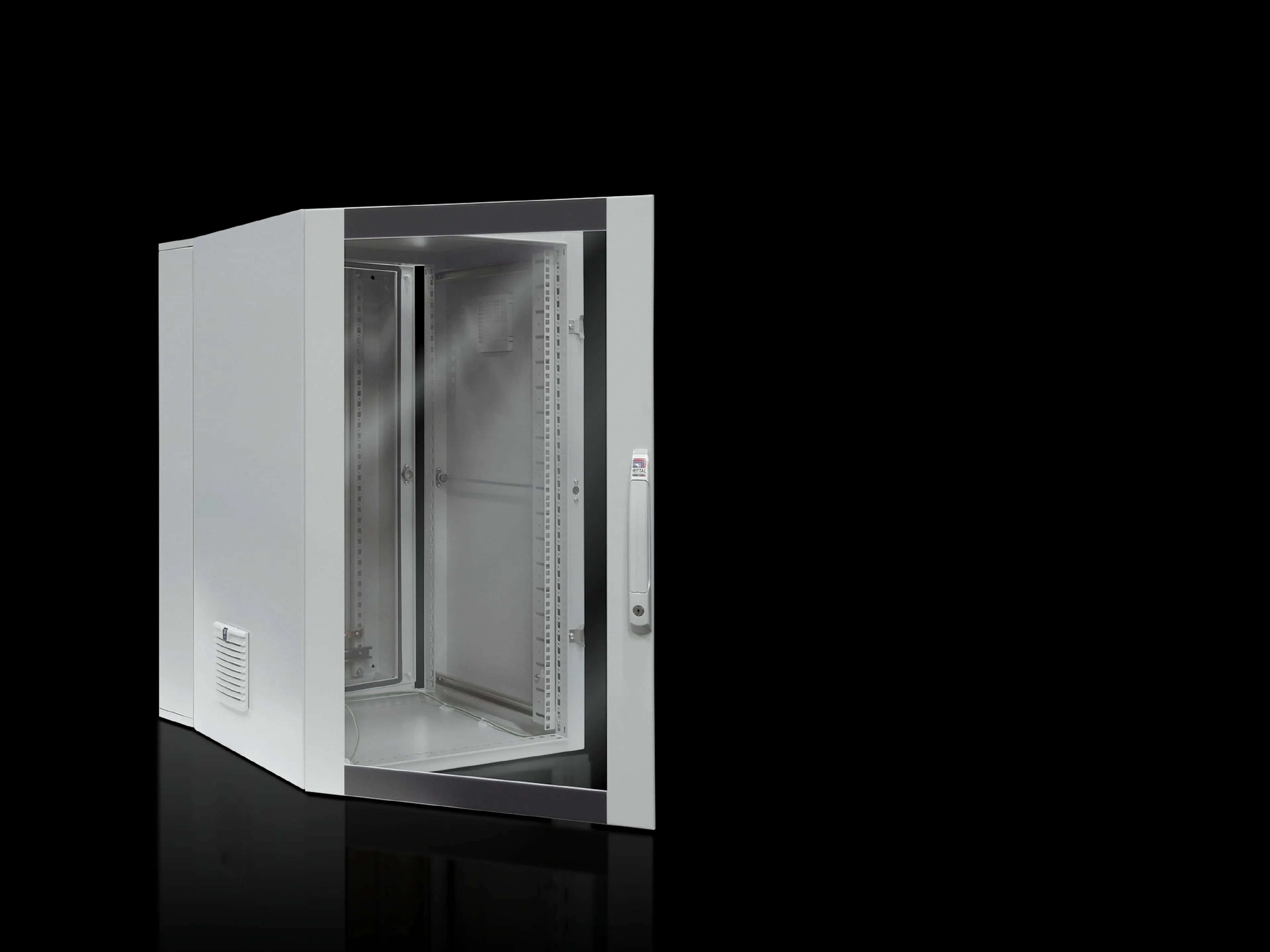

Rittal DK 7721.535 Wall-mounted Enclosure - IP54
Part Number: 7721535
Manufacturer
Rittal
Part number
7721535
Alt Part Number
DK 7721.535
Quick Summary
Rittal wall-mounted enclosure DK 7721.535 provides a compact, accessible housing for control panels in industrial automation setups. When space is tight and cable routing must stay orderly, a pre-configured solution reduces installation time and minimizes wiring errors. The enclosure delivers IP54 protection (in conjunction with solid gland plates) and IK08 impact resistance to meet common harsh-environment expectations. It also supports a depth-variable hinged part and standard 19-inch mounting rails, which streamline customization for diverse panel layouts. By aligning with your existing IT and automation infrastructure, this enclosure accelerates commissioning, improves serviceability, and lowers total cost of ownership for panel builders and OEMs.
Product Information
Extended Description
7721535 Rittal: DK Wall-mounted enclosure, 3-part, WxHxD: 600x1021x673 mm, 21 U, pre-assembled, IP 54 with solid gland plate top and bottom
Article number
DK 7721.535
Design
Wall-mounted enclosures IT | pre-configured with mounting angles, depth-variable
Product description
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material
Wall and hinged part: Sheet steel, 1.5 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
General colour
RAL 7035
Colour
Wall and hinged part: RAL 7035 | Glazed door: RAL 7035/7015 (slate grey)
Supply includes
Wall section with solid gland plate at the top and brush strip at the bottom, two vertical mounting rails and C rail, horizontal, for cable clamping | Hinged part with 25 mm pitch pattern of holes in the front and rear frame, two 482.6 mm (19") mounting angles at the front, infinitely depth-variable, and side outlet filters on the left and right | Earth rail with star earthing | Designer glazed door | 1 double-kit key no. 5 | Wall mounting bracket, 10 mm, reinforced | Comfort handle for lock inserts and 2-point locking | Security lock 3524 E
Units
21 U
Dimensions
Width: 600 mm | Height: 1,012 mm | Depth: 673 mm
Installation depth
620 mm
Clearances
Clearance width: 502 mm | Clearance height: 949 mm
Depth hinged part
516 mm
Depth of wall section
135 mm
IK Code
IK08
Load capacity of hinged part (static)
750 N
Basic material
Sheet steel
Protection category to IEC 60 529
IP 54 in conjunction with solid gland plate top and bottom
Packs of
1 pc(s).
Weight/pack
61 kg
Customs tariff number
94032080
EAN
4028177551039
ETIM 9
EC000261
ECLASS 8.0
27142408
Product description
DK Wall-mounted enclosure, 3-part, WxHxD: 600x1021x673 mm, 21 U, pre-assembled, IP 54 with solid gland plate top and bottom
Feature: 3-part, pre-assembled wall-mounted enclosure with top solid gland plate and bottom brush strip. Business Impact: Reduces on-site assembly time and ensures consistent sealing for reliable protection. Application: Ideal for rapid deployment of control cabinets in tight installations. Feature: 21U usable space in a 600x1021x673 mm footprint. Business Impact: Maximizes panel density while maintaining service access and ventilation discipline. Application: Suitable for compact automation cabinets and IT/OT equipment housings. Feature: Depth-variable hinged part with front and rear frame options. Business Impact: Facilitates flexible cable routing and future upgrades without swapping enclosures. Application: Great for evolving control architectures in machine builds. Feature: 482.6 mm (19 inch) mounting rails and 25 mm pitch hole pattern. Business Impact: Enables straightforward integration of standard industrial components with minimal adaptation. Application: Common in PLCs, drives, and I/O modules. Feature: Earth rail, two vertical mounting rails, and side outlet filters. Business Impact: Ensures reliable grounding and organized, safe cabling with effective EMI control. Application: Critical for motor drives and high-current cabinet installations. Feature: Powder-coated sheet steel construction with safety glass viewing window and lock options. Business Impact: Improves durability, vandal resistance, and secure access control. Application: Suitable for harsh environments and access-controlled deployments.
Get a Quick Quote for a Rittal 7721535
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7721535?
Enquire Now
FAQs
For installation, note the enclosure footprint of 600 mm wide, 1,012 mm high, and 673 mm deep with a 620 mm installation depth. It ships pre-assembled with a solid gland plate, brush strip, two 19" mounting angles at the front, and depth-variable hinges. Plan cable routing through the left and right side outlets and account for the 21U capacity to allocate space for drives, PLCs, and I/O modules.
Yes. The front and rear frame include 482.6 mm (19 inch) mounting rails and a 25 mm pitch hole pattern, enabling straightforward mounting of standard 19" equipment such as PLCs, drives, and I/O modules. The design supports quick retrofits and future expansions without needing a different enclosure.
The DK 7721.535 offers IP54 protection in conjunction with solid gland plates at the top and bottom, protecting internal components from dust and splash exposure. It also features IK08 impact resistance for robust field use. These ratings support reliable operation in typical factory and process environments.
Pre-configured with mounting rails, gland plates, earth rail, and hinges, the enclosure reduces commissioning time and assembly errors, lowering labor costs. The depth-variable hinge makes future upgrades easier, and the powder-coated sheet steel construction minimizes corrosion risk, extending service life and reducing replacement intervals for OEMs and maintenance teams.
The enclosure leverages IP54 protection, IK08 impact resistance, and a robust mechanical design with a secure locking system. It uses durable powder coating and a safety glass viewing window, which together help maintain a controlled, compliant environment for electronics in industrial settings, while enabling easier maintenance and long-term reliability.
