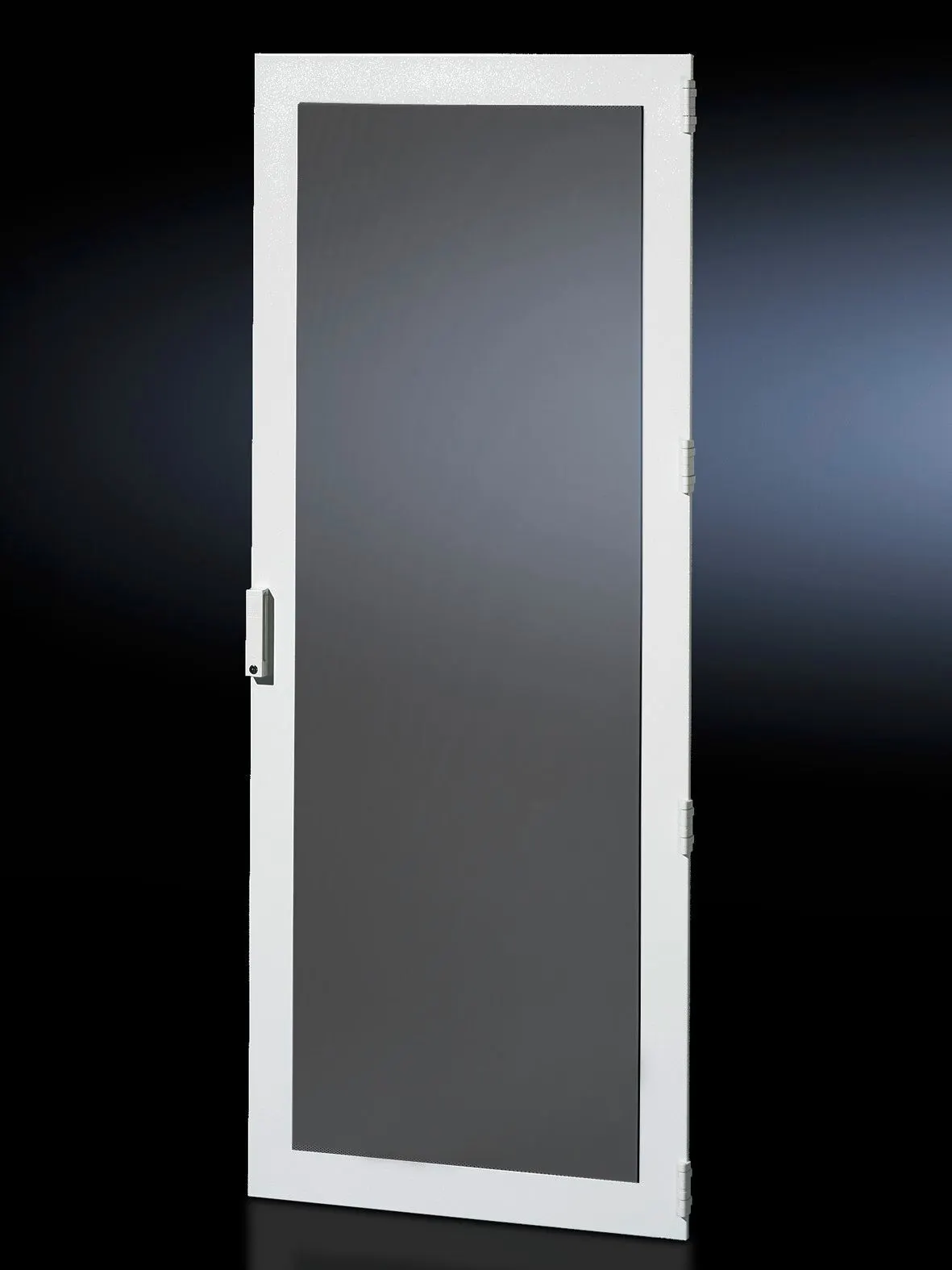

Rittal DK 7824.204 Door - 78% air inlet perforation
Part Number: 7824204
Quick Summary
Rittal DK 7824.204 door replacement provides high‑airflow protection for network enclosures, optimizing cooling in spaces with many active components. Replacing an existing door often creates airflow bottlenecks or maintenance challenges; this perforated door is designed to maximize air throughput while preserving enclosure integrity. Certifications and standards are not specified in the provided data, but the design aligns with common European enclosure practices for reliability and long service life. The combination of a robust sheet‑steel build in RAL 7035 and DK‑TS compatibility translates to reduced energy usage, easier servicing, and a consistent, professional enclosure appearance across facilities.
Product Information
Extended Description
7824204 Rittal: With 180° hinges and swivel handle with security lock no. 3524 E, in exchange for comfort handle. For optimum air throughput in network enclosures with a high proportion of active components. Perforated surface with air inlet openings > 78%.
Article number
DK 7824.204
Product description
With 180° hinges and swivel handle with security lock no. 3524 E, in exchange for comfort handle. For optimum air throughput in network enclosures with a high proportion of active components. Perforated surface with air inlet openings > 78%.
Material
Sheet steel
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type: DK-TS | Width: 800 mm | Height: 2,000 mm
Packs of
1 pc(s).
Weight/pack
22.8 kg
Customs tariff number
94039910
EAN
4028177237100
ETIM 9
EC000747
ECLASS 8.0
27182204
Feature: Perforated surface with air inlet openings > 78%. Business Impact: Improves cooling efficiency and reduces energy consumption by enhancing passive convection and component longevity. Application: Ideal for network enclosures with a high proportion of active components where heat dissipation is critical and where downtime is costly. Feature: 180° hinges and swivel handle with security lock no. 3524 E. Business Impact: Enables quick, tool‑free door operation and enhanced security without sacrificing user access. Application: Beneficial in tight installations or frequent door operations, such as maintenance bays or data room cabinets. Feature: Sheet steel construction in colour RAL 7035. Business Impact: Delivers rugged durability and a uniform industrial aesthetic with resistance to typical factory conditions. Application: Suitable for harsh environments, service corridors, and installations requiring dependable performance. Feature: To fit DK‑TS enclosure Type DK‑TS, Width 800 mm, Height 2000 mm. Business Impact: Simplifies retrofit and replacement with a precise fit, reducing installation time and risk. Application: Streamlines upgrades in standard 800×2000 mm DK‑TS enclosures. Feature: Supply includes assembly parts; Weight/pack 22.8 kg; Packs 1. Business Impact: Facilitates on‑site installation with all necessary components included, reducing additional sourcing. Application: Suitable for field replacements and single‑door retrofits in medium to large enclosure projects.
Get a Quick Quote for a Rittal 7824204
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7824204?
Enquire Now
FAQs
Installation is designed to be straightforward on DK‑TS frames with a width of 800 mm and height of 2000 mm. The door ships with assembly parts and standard fittings; ensure hinges are aligned, the perforated panel seats flush against the enclosure face, and the swivel handle lock engages securely for reliable security during operation and maintenance.
The perforated surface supports increased air intake, improving natural convection around high‑density components. This reduces hot spots, lowers cooling loads, and can contribute to energy savings by enhancing overall thermal management in active enclosures once installed.
Yes, the model is specified to fit DK‑TS enclosures at 800 mm width and 2000 mm height. The weight per pack is 22.8 kg, and each door is supplied with assembly parts, facilitating a streamlined field retrofit with minimal additional components required.
The provided data does not enumerate explicit certifications such as CE, IP ratings, or SIL. In practice, Rittal enclosure components in this class typically align with European standards for electrical enclosures, but please verify current certifications with the supplier or technical datasheets before procurement for compliance‑driven projects.
By improving airflow through a high‑throughput perforated door, active components run cooler, potentially extending component life and reducing cooling energy. With included assembly parts and a ready‑to‑install design, field deployment minimizes downtime and labor costs, producing a favorable maintenance‑to‑ROI profile over typical enclosure upgrade cycles.
