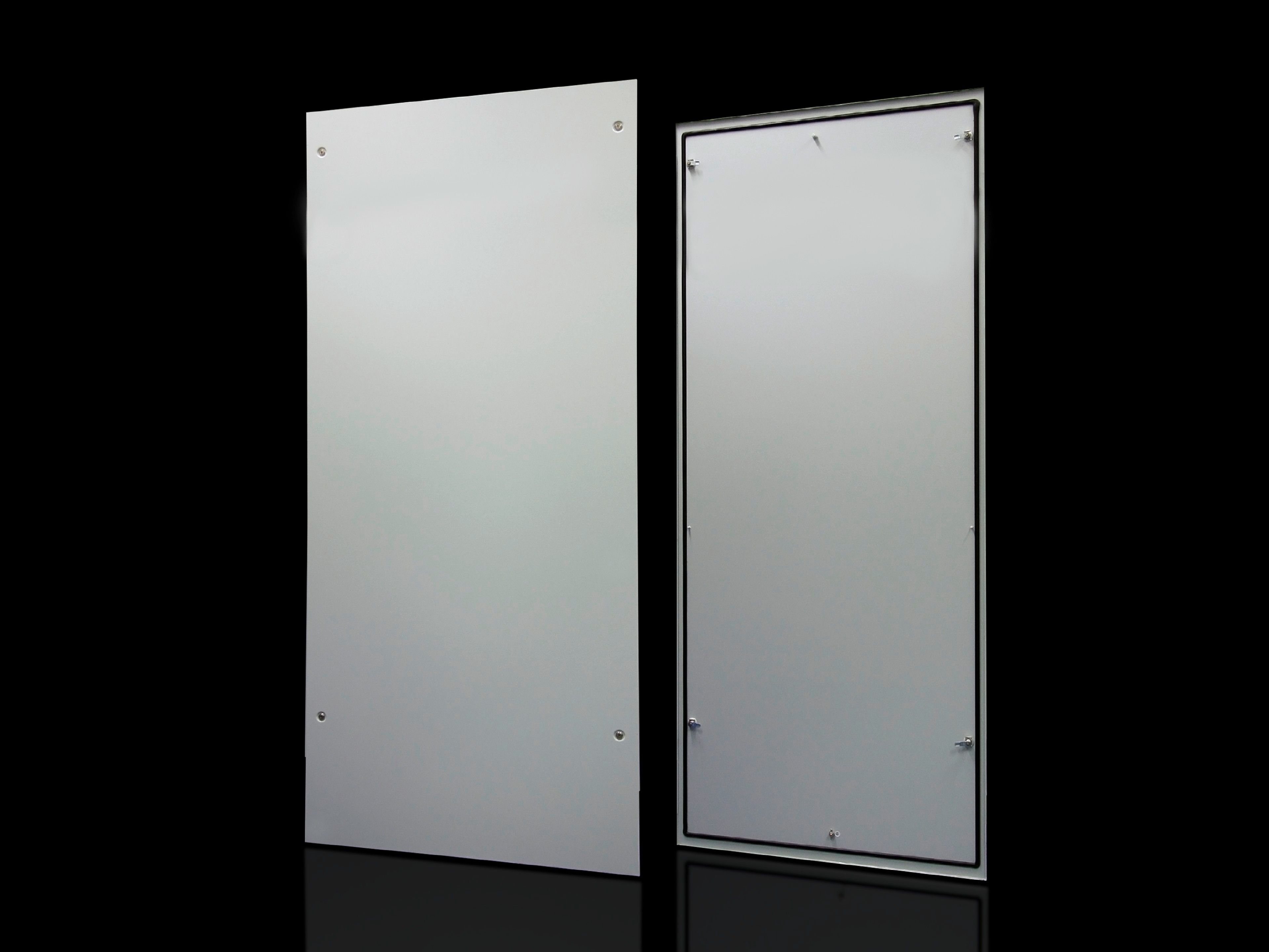

Rittal 7824220 Side Panel - Lockable, TS IT fit
Part Number: 7824220
Quick Summary
Rittal 7824220 Side Panel is a lockable sheet-steel panel designed for TS IT cabinets and TS enclosure families. Engineers often face challenges securing access without hindering serviceability or increasing installation time. This panel aligns with industry classifications such as ETIM EC002524 and ECLASS 27182101, and its spray-finished RAL 7035 surface supports durable, standardized aesthetics. With two panels per pack and four security locks per panel, it streamlines access control while maintaining robust enclosure protection. The TS IT fit simplifies sourcing and cabinet assembly, delivering consistent dimensions and rapid deployment across plant floors.
Product Information
Extended Description
7824220 Rittal: DK Side panel, For TS, TS IT, lockable, HxD: 2200x1000 mm, RAL 7035
Article number
DK 7824.220
Product description
Simply locate from above. Lock with security lock no. 3524 E. Earthing bolt with contact track.
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
2 side panels each with 4 security locks no. 3524 E
To fit
Enclosure type: TS IT | TX CableNet | TS | Height: 2,200 mm | Depth: 1,000 mm
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
62.1 kg
Customs tariff number
94039910
EAN
4028177302808
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
DK Side panel, For TS, TS IT, lockable, HxD: 2200x1000 mm, RAL 7035
Feature → Business Impact → Application: Lockable design with four security locks per panel reduces tampering risk and strengthens enclosure security across critical controls in automation cabinets, enabling auditors to verify access controls quickly; Application: Ideal for data centers and production lines needing secure, compliant cabinet access. Feature → Business Impact → Application: HxD 2200×D 1000 mm, supplied as two panels per pack; permits fast installation and full-side coverage without field fabrication; Application: TS IT and TS enclosures requiring precise dimensional fit. Feature → Business Impact → Application: Sheet steel with spray finish in RAL 7035 provides durable, corrosion-resistant surfaces that standardize plant aesthetics; Application: Indoor/outdoor industrial environments. Feature → Business Impact → Application: Earthing bolt with contact track and integrated 3524 E locks simplifies grounding and wiring, reducing install time and potential faults; Application: Control panels requiring reliable grounding and tamper resistance. Feature → Business Impact → Application: ETIM EC002524 and ECLASS 27182101 alignment eases procurement and interoperability with other components; Application: Cross-vendor BOM harmonization and compliant sourcing.
Get a Quick Quote for a Rittal 7824220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7824220?
Enquire Now
FAQs
The DK 7824.220 is designed to fit TS IT, TS, and TX CableNet enclosure families. It comes as two side panels per pack, each panel measuring 2200 mm high by 1000 mm deep, and is specifically sized to align with standard TS IT cabinet footprints, enabling quick and accurate field installation without custom machining.
Each side panel includes four security locks of type no. 3524 E, providing a lockable, tamper-resistant access solution. The two-panel supply ensures complete side coverage, while the locks are designed for reliable operation in industrial environments and support straightforward key management for authorized personnel.
Plan for TS IT enclosure installations with matching height and depth of 2200×1000 mm. Each pack weighs 62.1 kg per panel, so use appropriate lifting equipment. The kit includes two panels and four locks per panel, plus an earthing bolt with a contact track to simplify grounding during cabinet assembly and reduce wiring steps.
Yes. The product is associated with ETIM 9 EC002524 and ECLASS 8.0 27182101 classifications, aiding cross-system interoperability. It carries the EAN 4028177302808 and customs tariff 94039910, supporting accurate import documentation and streamlined supplier data in ERP systems.
The DK 7824.220 offers enhanced security with lockable access, durable sheet-steel construction, and a standardized RAL 7035 finish, reducing maintenance and replacement costs. Two-panels-per-pack simplifies stocking and procurement, while earthing integration and precise TS IT compatibility shorten installation times and minimize field rework, delivering measurable uptime and safety gains.
