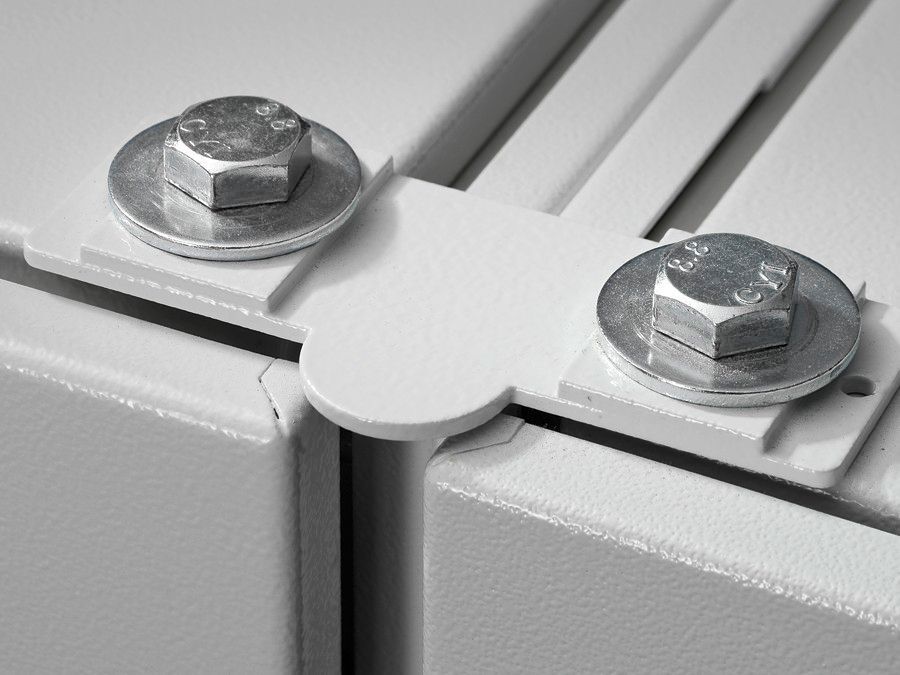

Rittal TS 7824.540 DK Baying clamp - External mounting
Part Number: 7824540
Quick Summary
Rittal TS 7824.540 DK Baying clamp enables retrospective baying of enclosures with screw-fastened or lockable side panels. This retrofit accessory helps minimize downtime during enclosure upgrades by preserving existing mounting points. The data aligns with ETIM EC002622 and ECLASS 27189263, while the product’s sheet steel construction in RAL 7035 supports durable, standardized installations. Leverage external mounting with 4-pack distribution and assembly parts to simplify procurement and scale installations across multiple TS enclosures. This aligns with modern procurement priorities focused on reliability, traceability, and total cost of ownership.
Product Information
Extended Description
7824540 Rittal: DK Baying clamp, For retrospective baying of enclosures, with screw-fastened or lockable side panels., External mounting, For TS, TS IT
Article number
TS 7824.540
Product description
For retrospective baying of enclosures with screw-fastened or lockable side panels.
Material
Sheet steel
Colour
RAL 7035
Supply includes
Assembly parts
Packs of
4 pc(s).
Weight/pack
3.736 kg
PCF per pack (cradle-to-gate)
14.2Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177345461
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
DK Baying clamp, For retrospective baying of enclosures, with screw-fastened or lockable side panels., External mounting, For TS, TS IT
Retrofitting capability offers a DK Baying clamp that enables retrospective baying of enclosures, compatible with screw-fastened or lockable side panels. This reduces on-site modification time and preserves mounting accuracy, translating to lower project risk during enclosure upgrades. The external mounting design minimizes interior space alterations and accelerates installation, helping projects stay on schedule. Constructed from sheet steel and finished in RAL 7035, the clamp delivers durable performance in demanding industrial environments while maintaining a consistent appearance across cabinet rows. The 4-pack packaging and defined weight per pack (3.736 kg) streamline logistics and stock keeps, supporting lean procurement and fast replacement when needed. PCF metrics (14.2 kg CO2 eq per pack, Category B) enable straightforward sustainability reporting and lifecycle assessment. The offering is traceable through EAN, ETIM EC002622, and ECLASS 27189263 data standards, promoting interoperability with ERP and purchasing systems. The DK Baying clamp also complies with standard accessory conventions for TS and TS IT enclosures, enabling scalable deployment across facilities. Packaging and sourcing optimization are further supported by the 4-pack configuration, reducing per-unit handling and improving maintenance planning across large facilities.
Get a Quick Quote for a Rittal 7824540
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7824540?
Enquire Now
FAQs
Yes. The DK Baying clamp is designed as a retrospective baying accessory for TS and TS IT enclosures, supporting external mounting and compatibility with screw-fastened or lockable side panels. Installation aligns with standard TS enclosure configurations and uses included assembly parts to ensure a secure, durable retrofit without interior cabinet modification.
Key specifications include sheet steel construction and a color finish of RAL 7035 for visual consistency. The product is sold in packs of four, with a weight per pack of 3.736 kg, enabling predictable logistics and stocking. The assembly parts included simplify on-site installation, reduce lead times, and help project teams plan bulk retrofits with standardized components.
The DK Baying clamp data aligns with ETIM 9 EC002622 and ECLASS 8.0 27189263, supporting interoperability with ERP and procurement systems. The EAN 4028177345461 provides traceability for inventory and compliance records. While explicit CE or IP ratings are not listed, the standard classifications facilitate accurate product categorization in technical catalogs.
Retrofitting with external mounting clamps eliminates the need for interior enclosure modifications, reducing installation time and minimizing downtime. The 4-pack packaging lowers per-unit logistics costs and simplifies spares management. Overall, the approach improves first-time fix rates, reduces on-site labor, and supports scalable upgrade programs across multiple enclosures.
Verify enclosure compatibility with TS TS IT models before ordering, then follow the supplied assembly parts to attach the clamp externally. Ensure panels are secure and correctly aligned to maintain baying integrity. Use standard torque practices per manufacturer guidance and confirm PCF data for sustainability reporting post-install. Regular inspections after retrofit help sustain long-term reliability.
