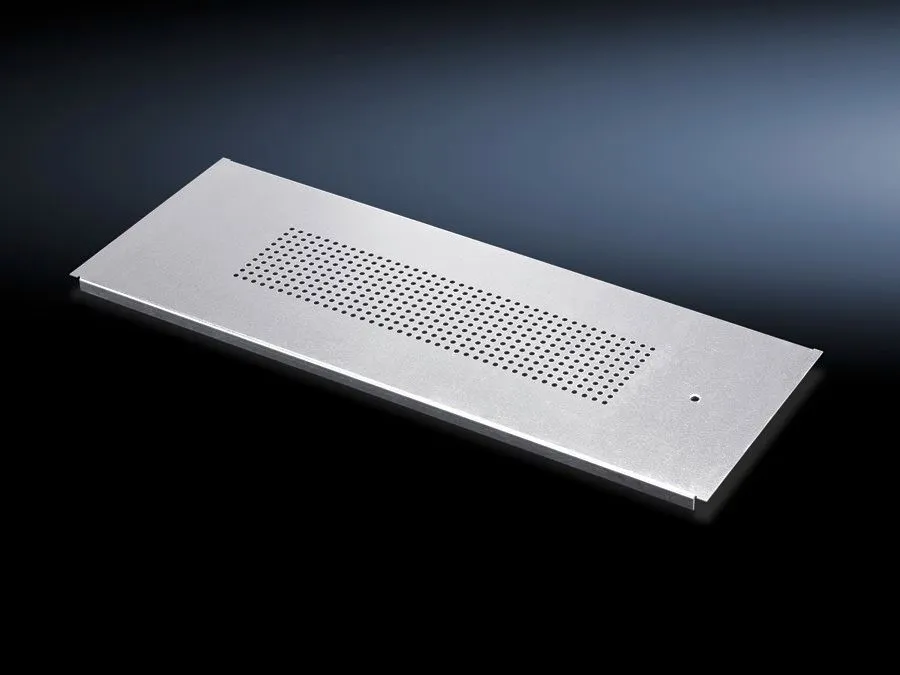

Rittal 7825360 Gland Plate Module - Vented, 237.5 mm Depth
Part Number: 7825360
Quick Summary
The gland plate module is a vented gland plate solution for TS/TS IT/SE enclosures, enabling efficient passive cooling at the base of network cabinets. In dense panel layouts, sealing the base without ventilation can trap heat and complicate maintenance, driving higher cooling costs and longer downtimes. This module aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 standards, ensuring consistent data for procurement and integration. By addressing enclosure ventilation directly at the base, it reduces hotspots while maintaining seal integrity; it also supports scalable configurations and straightforward installation with compatible Rittal TS family enclosures.
Product Information
Extended Description
7825360 Rittal: DK Gland plate module, vented, depth: 237.5 mm, for enclosure width: 800 mm, for TS, TS IT, SE, TX CableNet, sheet steel, zinc-plated
Article number
DK 7825.360
Product description
Large perforated section for passive enclosure ventilation.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Filter mat and nylon tape
Note
Several gland module plates need to be combined to close off the base completely in the TS-IT
Dimensions
Depth:Â 237.5 mm
To fit
Enclosure type:Â TS | TS IT | SE | TX CableNet | Width:Â 600 mm
Packs of
1 pc(s).
Weight/pack
1.47 kg
Customs tariff number
73269098
EAN
4028177234314
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Gland plate module, vented, depth: 237.5 mm, for enclosure width: 800 mm, for TS, TS IT, SE, TX CableNet, sheet steel, zinc-plated
View this page as PDF
CS, DA, DE, EN, ES, FI, FR, HU, ID, IT, JA, KO, NL, NO, PL, PT, RU, SK, SV, TR, US, VI, ZH
Feature → Business Impact → Application: The vented design provides optimized air flow through the base frame, reducing operator attention to cooling issues and lowering energy consumption in enclosed systems. This directly translates to measurable improvements in thermal management for TS, TS IT, and SE enclosures, with compatibility to TX CableNet variants for modular data network installations. Feature → Business Impact → Application: Zinc-plated sheet steel offers corrosion resistance in harsh environments, extending cabinet life and reducing maintenance costs. Feature → Business Impact → Application: Depth of 237.5 mm and width compatibility with 800 mm enclosures enable a flexible fit in standard rack configurations, simplifying procurement and installation while preserving seal integrity. Feature → Business Impact → Application: Supplied with a filter mat and nylon tape to ensure clean ventilation paths, decreasing contaminated airflow and service calls. Feature → Business Impact → Application: Note that multiple gland plates can be combined to close off the base completely in TS-IT, enabling scalable sealing as configurations evolve. Feature → Business Impact → Application: ETIM 9 EC002620 and ECLASS 8.0 27189261 conformity supports consistent data exchange for integration with ERP and procurement systems.
Get a Quick Quote for a Rittal 7825360
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7825360?
Enquire Now
FAQs
Yes. This vented gland plate module is designed for TS, TS IT, SE, and TX CableNet enclosures with an 800 mm width and 237.5 mm depth, and it can be combined with additional plates to seal the base in TS-IT configurations as needed.
The module is made of sheet steel with a zinc-plated surface finish, providing corrosion resistance suitable for many industrial environments and extending enclosure life while maintaining a clean appearance and reliable ventilation paths.
Ensure enclosure width is 800 mm (per extended description) and depth is 237.5 mm. Plan for potential multi-plate assemblies to seal the TS-IT base, and confirm that the enclosure type is TS, TS IT, SE, or TX CableNet to ensure proper fit and airflow.
The product conforms to ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, aiding data consistency in ERP systems. The GTIN is 4028177234314, and the article number is DK 7825.360, supporting precise ordering and traceability.
By enabling passive cooling at the base, the module reduces heat-related risk and cooling energy needs, lowers maintenance frequency due to improved airflow, and supports scalable configurations in TS-based enclosures, contributing to lower total cost of ownership in data centers and control rooms.
