Rittal TS 7825.367 Gland Plate Module - Super-Airtight
Part Number: 7825367
Quick Summary
Gland plate module TS 7825.367 provides a tight cable entry for 600 mm wide Rittal TS enclosures. Engineers often struggle with sealing multiple cables without compromising accessibility or serviceability. This solution aligns with ETIM 9 EC002620, ECLASS 8.0 27189261 standards, and UL 94 HB halogen-free materials to meet industry compliance. Its design delivers reliable sealing, reduces installation complexity, and supports retrofit projects, enabling faster panel upgrades and long-term operational efficiency.
Product Information
Extended Description

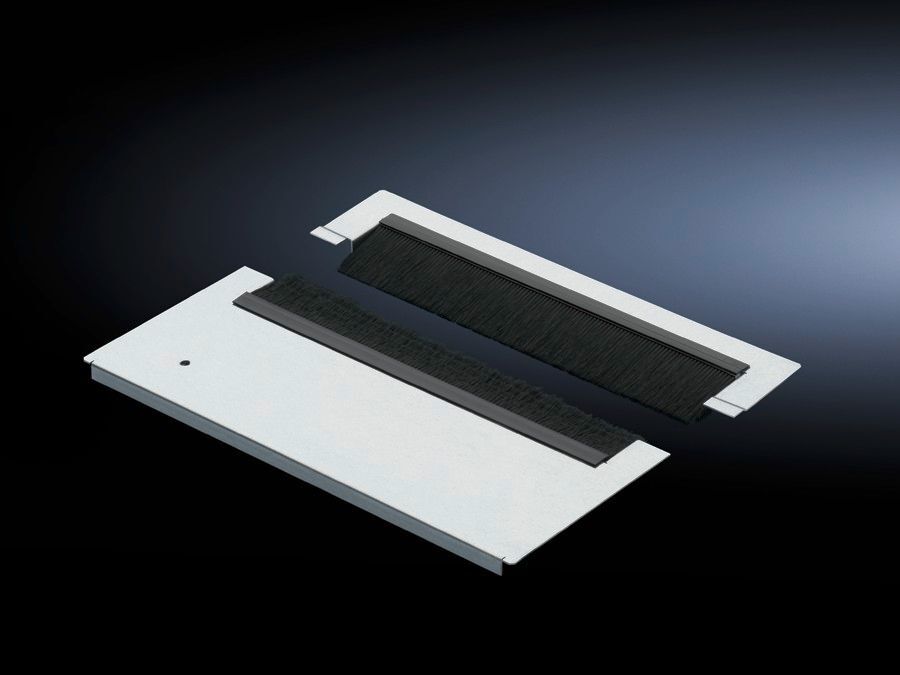

7825367 Rittal: DK Gland plate module, For W: 600 mm, For cable entry with brush, super-airtight
Article number
TS 7825.367
Design
Cable entry with brush strip, super-airtight
Product description
Special brush strips with brush strips offset on alternate sides offer maximum possible protection with professional cable entry. The two-piece design even allows retrospective fitting of the base module with the cables already installed.
Material
Module plate: Sheet steel | Brush strip: Plastic, UL 94 HB, halogen-free
Surface finish
Module plate: Zinc-plated
Supply includes
Assembly parts | Including clips
Note
Several gland module plates need to be combined to close off the base completely in the TS-IT
Dimensions
Depth: 237.5 mm
To fit
Enclosure type: TS | TS IT | SE | Width: 600 mm
Packs of
1 pc(s).
Weight/pack
1.42 kg
Customs tariff number
73269098
EAN
4028177551152
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Gland plate module, For W: 600 mm, For cable entry with brush, super-airtight
Feature → Business Impact → Application: The two-part base module with an alternate offset brush strip design delivers maximum protection for large cable quantities while preserving serviceability, reducing cable-manager maintenance and ingress risks. Application: TS enclosures with 600 mm width across industrial automation projects, where retrofitability and airtight seals are critical for reliability. Feature → Business Impact → Application: The DK gland plate module uses sheet steel for the base and UL 94 HB, halogen-free plastic brush strips, offering robust mechanical strength and safer material characteristics; this minimizes halogen-related concerns in control panels. Application: Electrical cabinet interiors in harsh environments where long-term compliance and reduced flame hazards matter. Feature → Business Impact → Application: Retrofitting capability allows installation after cables are in place, reducing downtime and enabling quick upgrades. Application: Existing installations requiring enhanced sealing without full disassembly. Feature → Business Impact → Application: Included clips and assembly parts speed up installation, shortening project timelines and lowering labor costs. Application: New builds and upgrades where fast, dependable gland entry integration is desired.
Get a Quick Quote for a Rittal 7825367
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7825367?
Enquire Now
FAQs
The gland plate module is designed for W: 600 mm TS enclosures and fits TS, TS IT, and SE variants. Its two-piece design supports retrospective fitting, enabling installation even when cables are already in place. Includes assembly parts and clips to simplify mounting on compatible enclosures.
Offset brush strips distribute bristle coverage to optimize sealing around bundled cables. This design reduces gaps, improves airtightness, and accommodates larger cable quantities without compromising accessibility. It’s especially beneficial in panels where multiple cables must pass through a single footprint while maintaining a professional seal.
The module plate is sheet steel with zinc plating; brush strips are plastic, UL 94 HB rated and halogen-free, offering improved safety. It aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 standards, supporting industry-standard procurement and compatibility checks for electrical enclosures.
Yes. The two-piece design enables retrospective fitting, allowing you to add or modify the gland entry without fully disassembling the enclosure. The kit includes necessary clips, and the system can be combined with additional gland plates to close off the base as needed, minimizing downtime during upgrades.
The module tightens ingress protection, reducing cable-entry leakage and maintenance needs. It supports faster retrofits, safer electrical assemblies with halogen-free materials, and improved reliability in harsh environments, translating to lower lifecycle costs and less downtime in automation projects.
